6.00 Unpacking and preparation of the lifter
Visual check of lifter
If the packaging is damaged on receipt, each part of the lifter must be careful-
ly examined for visible defects or deciencies. In case of suspected damage,
do not use the lifter until authorized by qualied service sta or the Guldmann
Service Team.
6.01 Assembly instruction
Guldmann recommends that the person making the assembly of the mobile
lifter have a basis mechanical understanding.
Unpack the lifter on a level surface and gently remove cable ties and protec-
tive-foam.

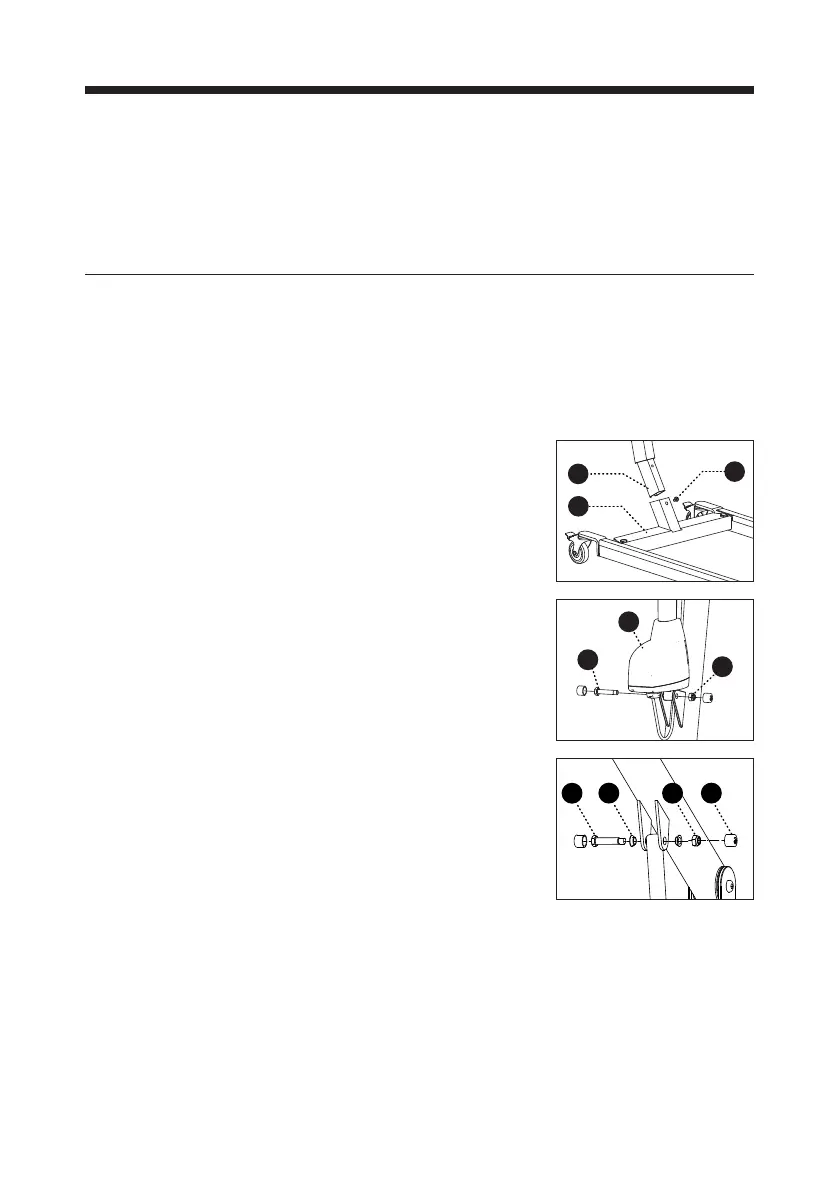

Assembling mast/chassis – electrical
Loosen screw (pos. 3) tted to mast. Position
the mast (pos. 1) in the Chassis (pos. 2). Make
sure that the mast hits the chassis in the bot-
tom of the chassis tube, tighten screw using an
M5 Allen key. To dismantle, remove screw to
pull mast out of base. Retighten screw in mast.
Fitting actuator
Fasten the actuator base (pos. 4) using the
attached screw (pos. 6) with nut (pos. 7).
Fasten the actuator top (pos. 4) using the
attached washers (pos. 5) and screw (pos. 6)
with nut (pos. 7).
Tighten screw and nut with 17 mm spanners.
Complete by adding protective caps (pos. 8) on
nut and bolt.
1
2
3
7
4
6
6
5
7
8
