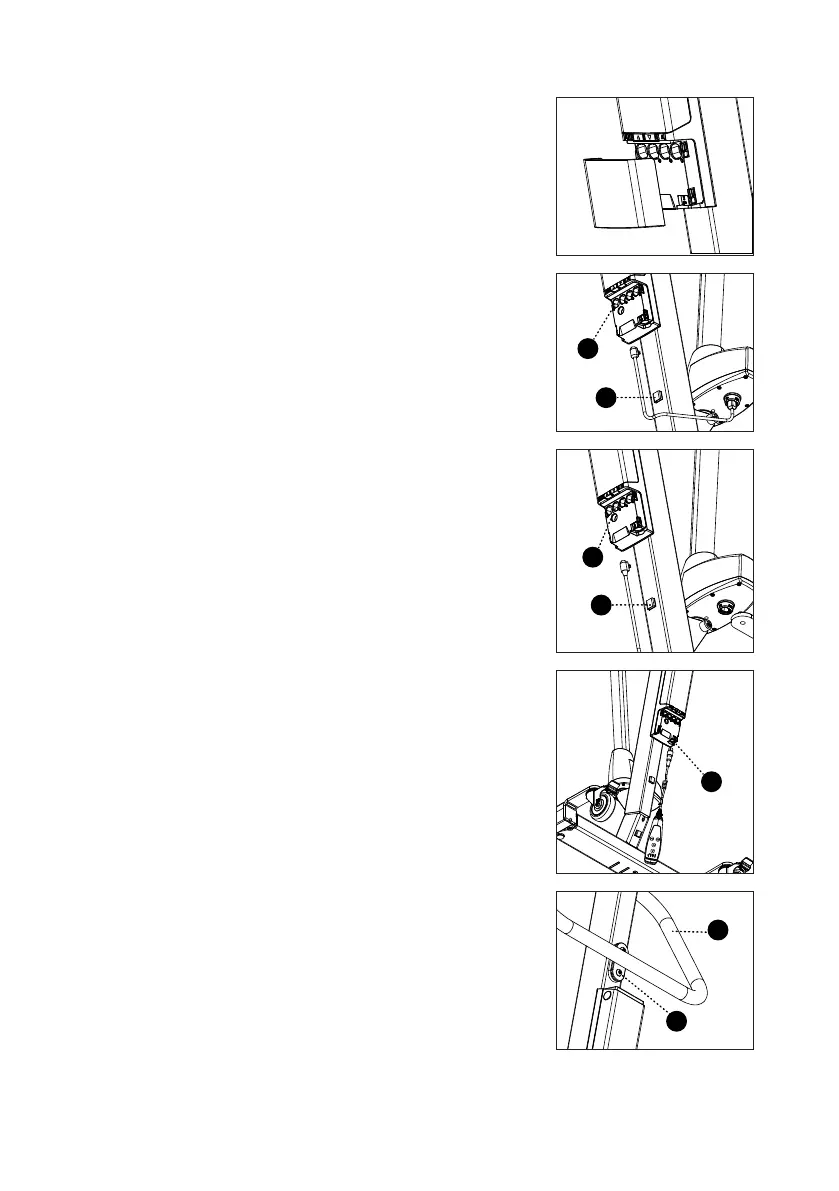

Mounting of connectors for motors
Start by opening cable cover by sliding down
and straight out.
Insert connector from the lifting actuator to port
1 (pos. 9) on the control box.
Insert the cable from the lifting actuator into the
cable clips (pos. 10).
Insert connector for width adjustment motor to
port 2 (pos. 11) on the control box. Insert the
cable from the width adjustment motor into the
2 cable clips (pos. 10).
Mounting of the hand control
Connect the hand control to the DIN port
on the control box (pos. 12).
Push cable cover back on directly over
designated snaps.
Fasten push handle (pos. 13) to the mast by
tightening the two screws (pos. 14).
10
9
10
11
13
14
12
