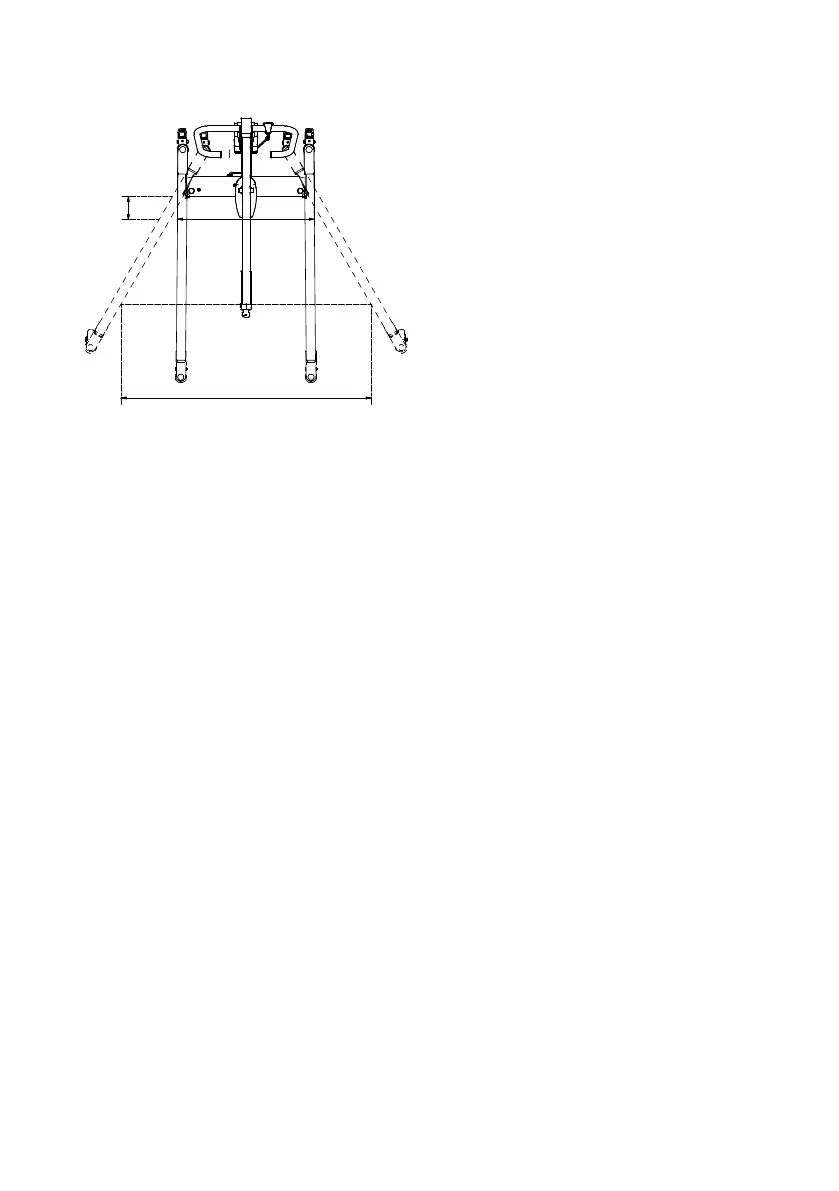

A .....................69 mm
x)
B ....................143 mm
x)
C...................2013 mm
x)
D...................1365 mm
x)
E ....................229 mm
F ....................518 mm
G...................1325 mm
H min/max ........664/1967 mm
x)
I min/max .........456/1759 mm
x)
J min/max .........530/1300 mm
K min/max ........695/1410 mm
L ....................120 mm
M...................1090 mm
x) If wheels Ø 80 mm are used,
deduct 25 mm
700
L
M
Functions
Lifting capacity, max ....................................155/205 kg
Operation
Lift .....................................................Electric
Width adjustment ..........................................Electric
Weight
Totally .................................................... 44 kg
Chassis ..................................................22 kg
Mast and lifting boom incl. control box & battery ................... 22 kg
Hand control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.25 kg
Turning radius
Turning radius ..........................................1460 mm
Safety Features
Emergency stop ..............................................Yes
Emergency lowering ............. Yes, electronic. Mechanical on request
Protection against
trapping ....................................................Yes
Electrical parts
On/o ..............................................Automatically
Integrated Power supply for charging
Input ................................120-240 Vac, 50-60 Hz, 30VA
Battery, replaceable Li-Ion .............................25.2 V / 2.9 Ah
Charging time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Max. 4 hours
Consumption/power of actuator ...........................24V, max 8A
Duty Cycle ........................Max 10%, max. 2 min on, 18 min o
