GW Instek PSU Series Quick Start Guide

OPERATION
29

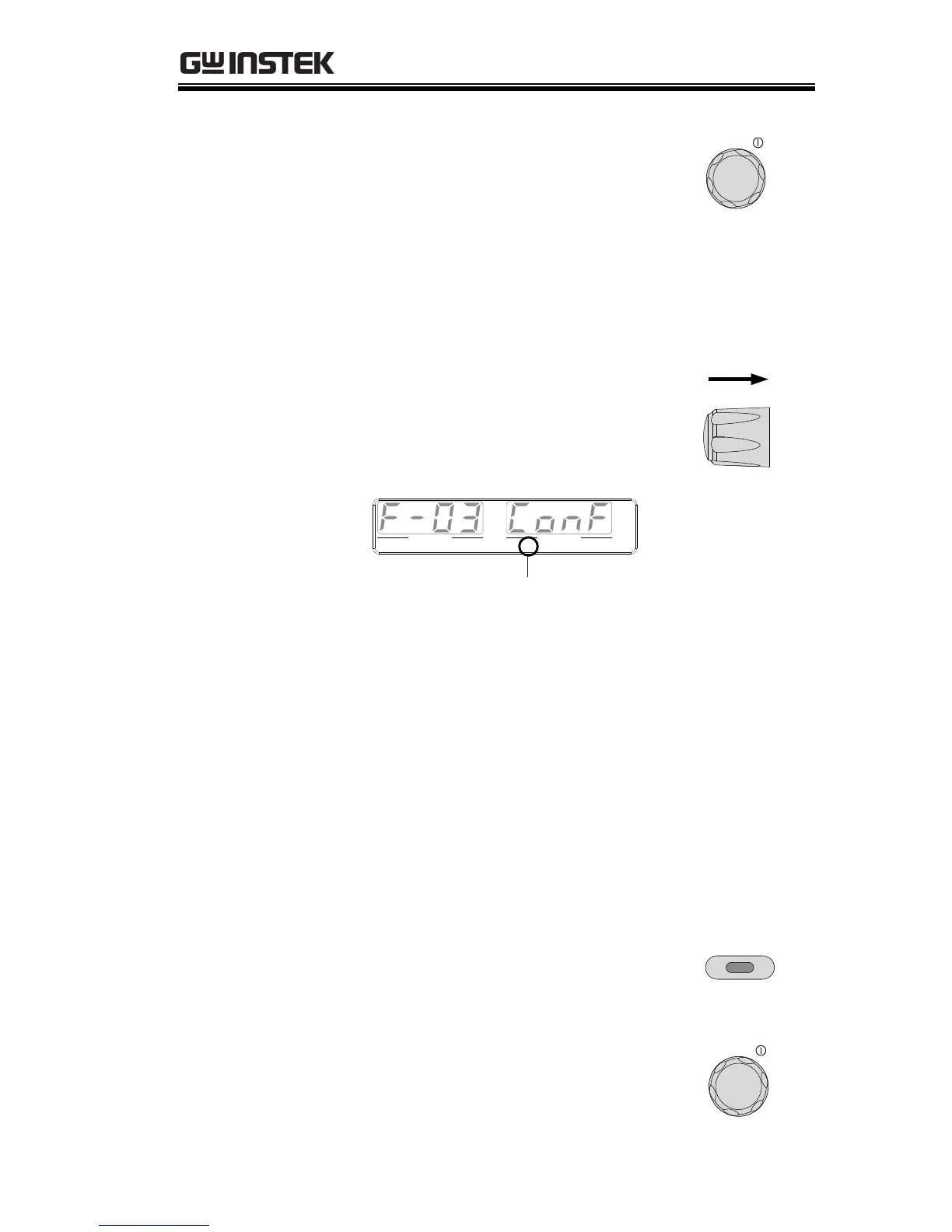

4. Use the current knob to set the F-03
setting.
Set F-03 to 1 (CC High Speed
Priority) or 3 (CC Slew Rate
Priority) and save.
Current
F-03
1 = CC High Speed Priority
3 = CC Slew Rate Priority
5. Press the Voltage knob to save the
configuration setting. ConF will be
displayed when it is configuring.
Voltage
Example
VOLTAGE CURRENT
LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
ISR indicator for CC Slew
Rate Priority (F-03=3)
6. If CC Slew Rate Priority was chosen as the
operating mode, set F-06 (Current Slew Rate
Up) and F-07 (Current Slew Rate Down) and
save.
F-06 / F-07
0.001A~2A / msec (PSU 6-200)
0.001A~1.2A / msec (PSU 12.5-120)
0.001A~0.76A / msec (PSU 20-76)
0.001A~0.38A / msec (PSU 40-38)
0.001A~0.25A / msec (PSU 60-25)
7. Press the Function key again to exit
the configuration settings. The
function key light will turn off.
Function
8. Use the Voltage knob to set the
voltage limit (crossover point).
Voltage
