H3C S5170-EI Series - Connecting the Power Cord for a Built-In Power Supply

18
Power supply
model
Available power source Connection procedure reference
PSR600-54A-B/PSR
920-54A-B/PSR1600
-54A-B
AC power source
240 V HVDC power source
Connecting the power cord for a built-in power supply
1. Wear an ESD wrist strap. Make sure the strap makes good skin contact and is reliably
grounded.
2. Plug the female connector of the power cord into the power receptacle on the power supply, as
shown in Figure 25.
3. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure
25.
4. Connect the other end of the power cord to an AC power source.

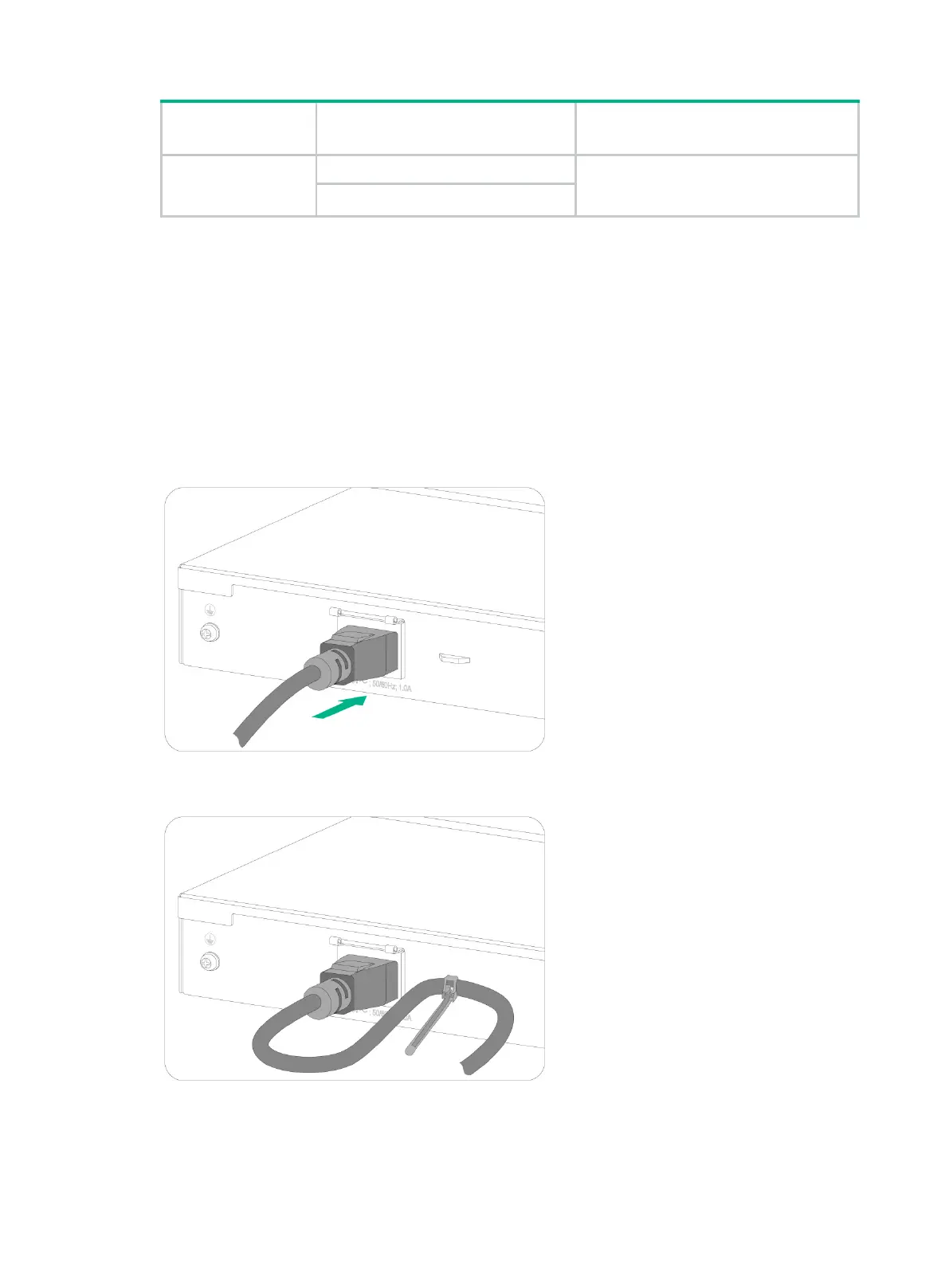

Figure 25 Connecting the power cord for a built-in power supply(1)
Figure 26 Connecting the power cord for a built-in power supply(2)
