Connecting the power cord for a CA-70A12 or PSR75-12A
power supply
The power cord connection procedure is similar for the CA-70A12 and PSR75-12A power supplies.
The following procedure connects the power cord for a PSR75-12A power supply.
To connect the power cord for a PSR75-12A power supply:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Attach the power cord retainer clip (supplied with the power supply) into the two holes next to
the AC-input power receptacle on the power supply, and pull the retainer clip leftwards (see
Figure 27).
3. Connect the female connector of the AC power cord supplied with the power supply to the
power receptacle (see callout 1 in Figure 28).
4. Pull the retainer clip rightwards to secure the connector to the AC-input power receptacle (see
callout 2 in Figure 28).
5. Connect the other end of the power cord to an AC power source.

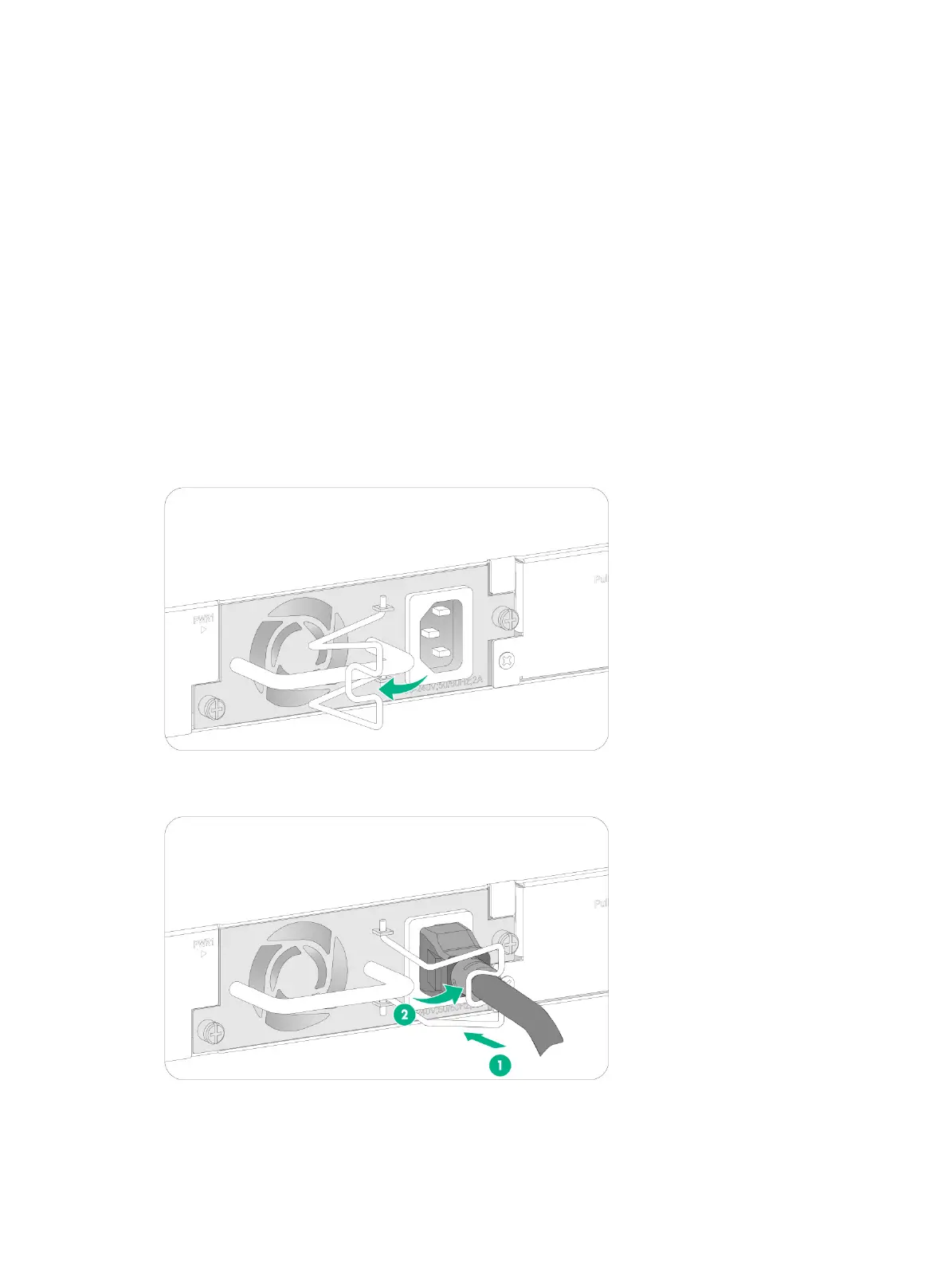

Figure 27 Connecting a power cord (1)
Figure 28 Connecting a power cord (2)
