4

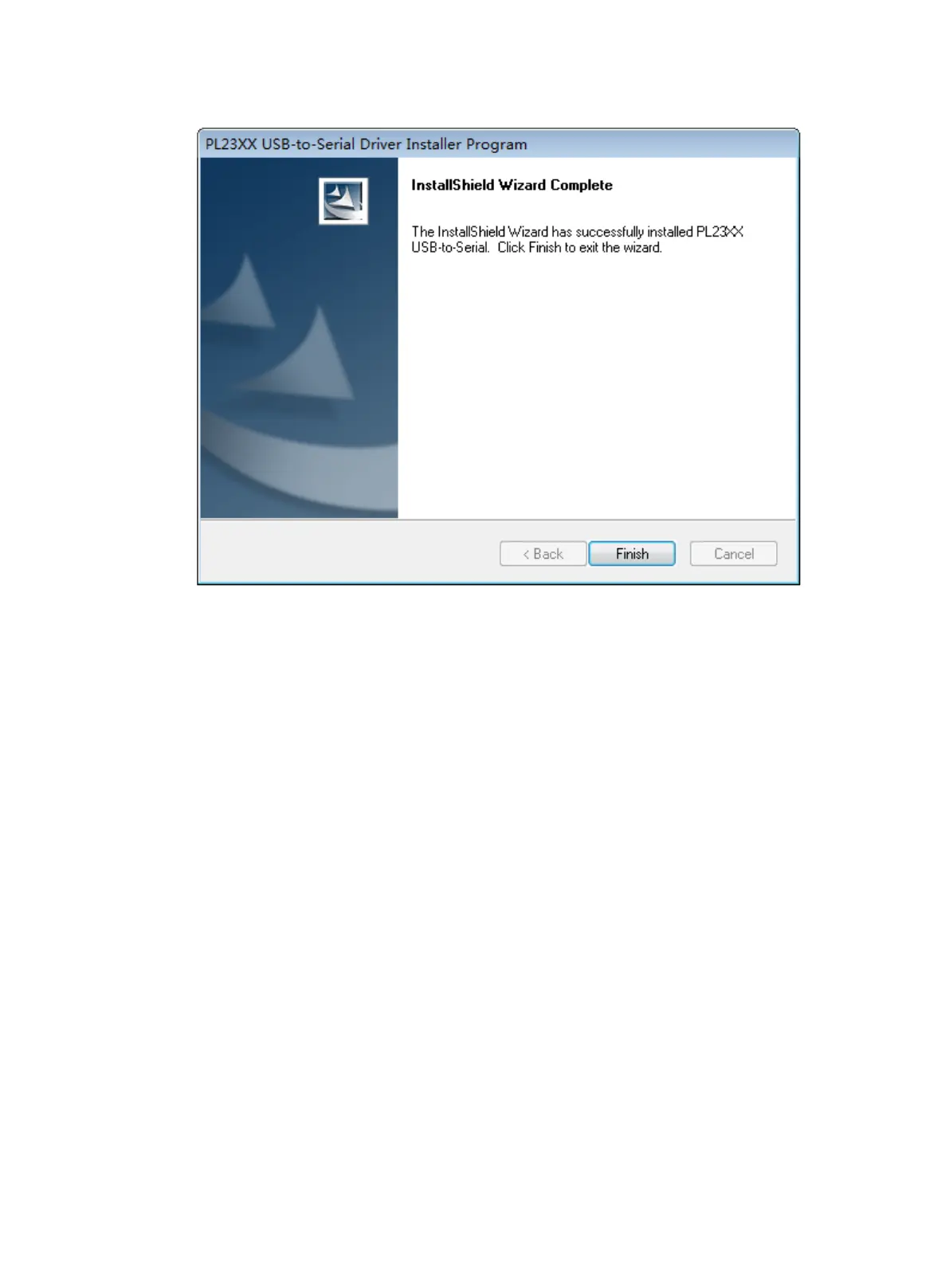

Figure 34 Finishing the driver installation
6. Connect the standard USB connector of the cable to the USB port of the configuration terminal.
7. Connect the RJ-45 connector of the cable to the console port of the switch.
Setting terminal parameters
To configure and manage the switch through the console port, you must run a terminal emulator
program, such as TeraTermPro, on your configuration terminal. You can use the emulator program to
connect a network device, a Telnet site, or an SSH site. For more information about the terminal
emulator programs, see the user guides for these programs.
Configure the terminal parameters as follows:
Bits per second—9,600.
Data bits—8.
Parity—None.
Stop bits—1.
Flow control—None.
Starting the switch
Pre-start checklist
Before powering on the switch, verify the following items:
The power cord is correctly connected.
The input power voltage is as required by the switch.
