H3C S5560X-HI Series Installation Guide

2-6

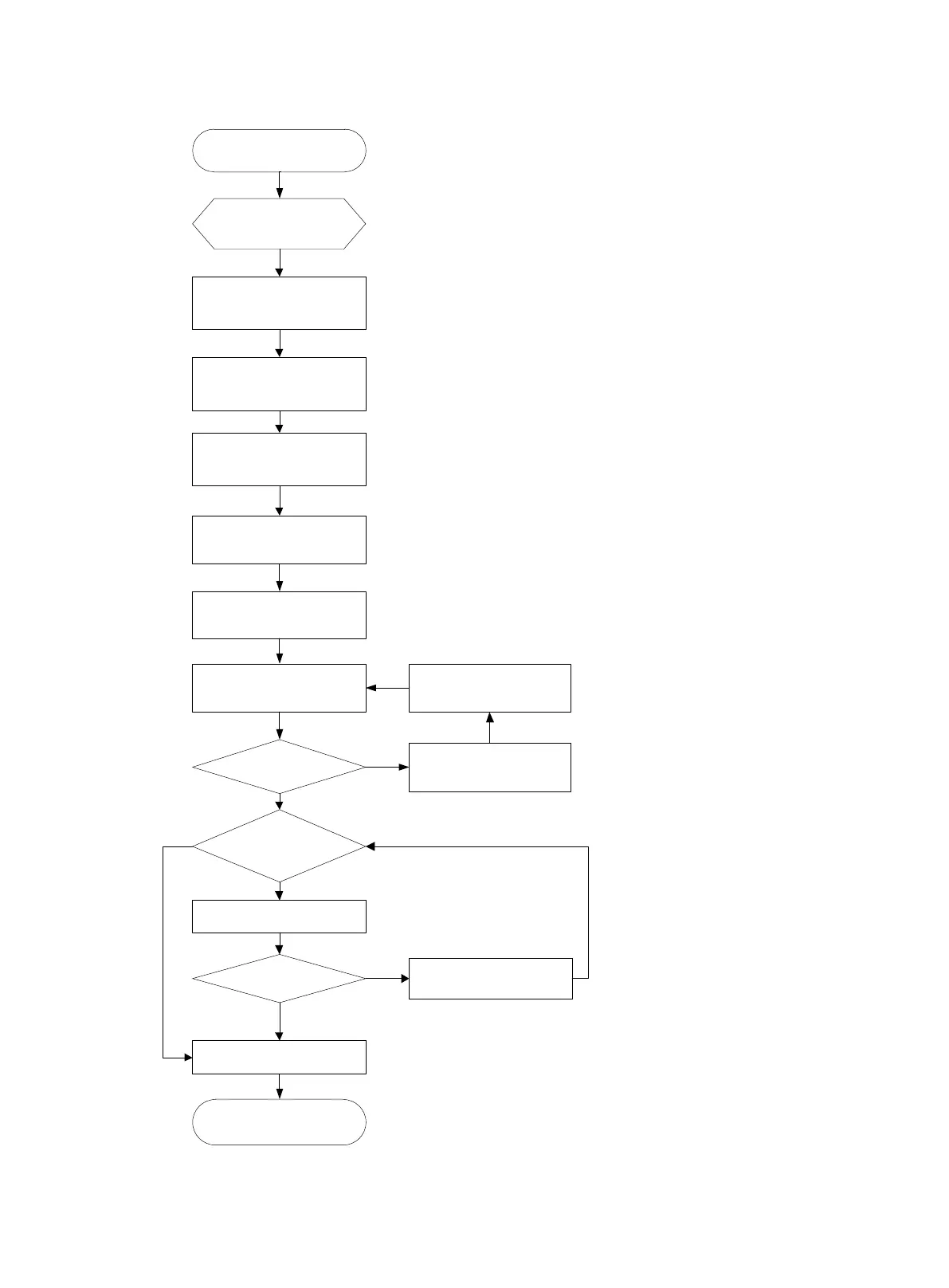

Figure2-1 Hardware installation flow
Start
Install the switch
Connect the power cords
Verify the installation
Turn on the circuit
breakers
Operating correctly?
Turn off the circuit
breakers
Troubleshoot the switch
No
Yes
End
Connect interface cables
Ground the switch
Install fan trays
Install power supplies
Install expansion
cards?
Install expansion cards
Operating correctly?
Troubleshoot the switch
Yes
Yes
No
No
