3-31

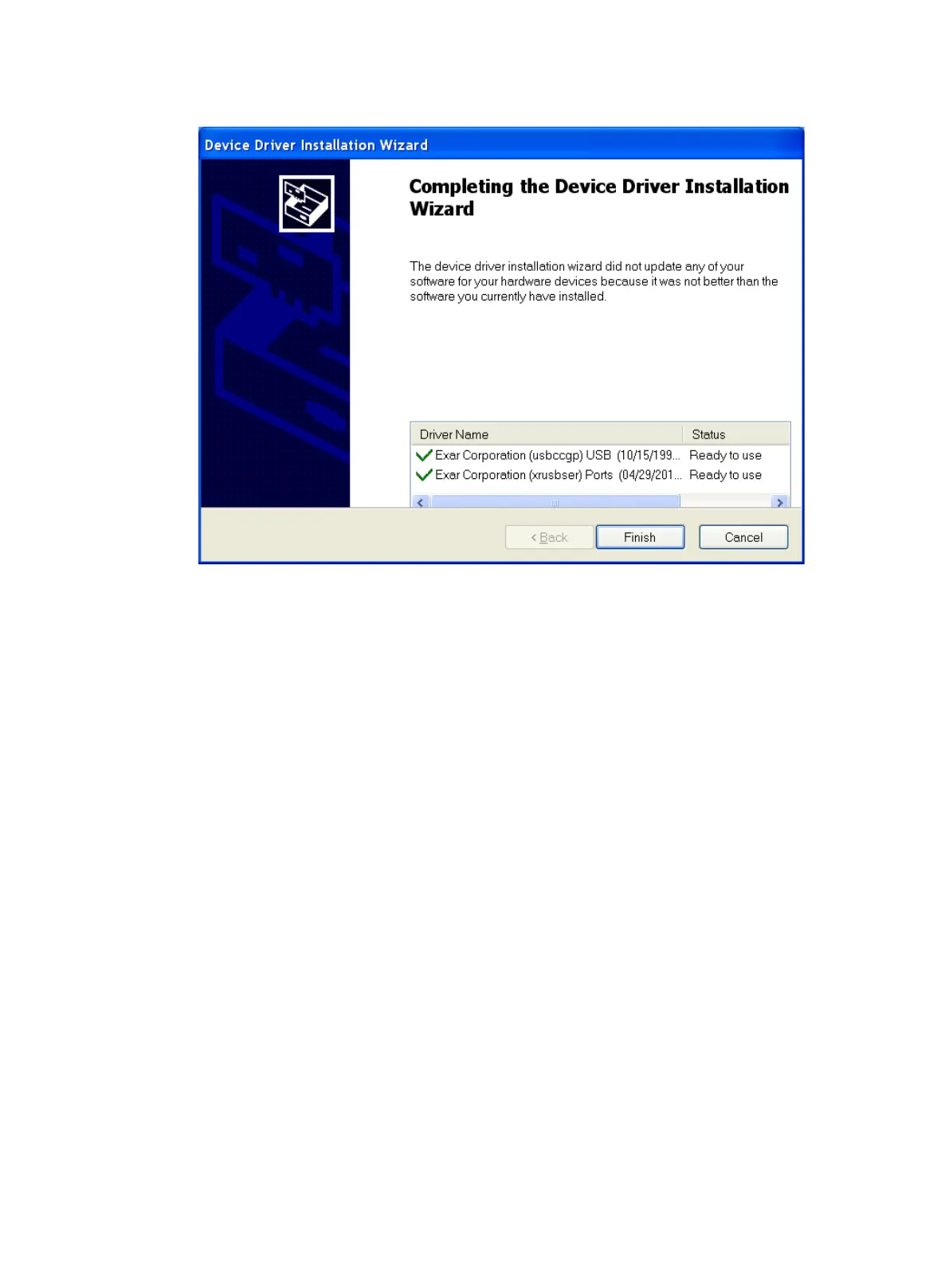

Figure3-9 Completing the device driver installation wizard
Setting terminal parameters
To configure and manage the switch through the console port, you must run a terminal emulator
program, such as TeraTermPro, on your configuration terminal. You can use the emulator program to
connect a network device, a Telnet site, or an SSH site. For more information about the terminal
emulator programs, see the user guides for these programs.
Configure the terminal parameters as follows:
Bits per second—9,600.
Data bits—8.
Parity—None.
Stop bits—1.
Flow control—None.
Starting the switch
Pre-start checklist
Before powering on the switch, verify the following items:
The power cord is correctly connected.
The input power voltage is as required by the switch.
The console cable is correctly connected.
The PC has started, and the terminal parameters have been correctly configured.
