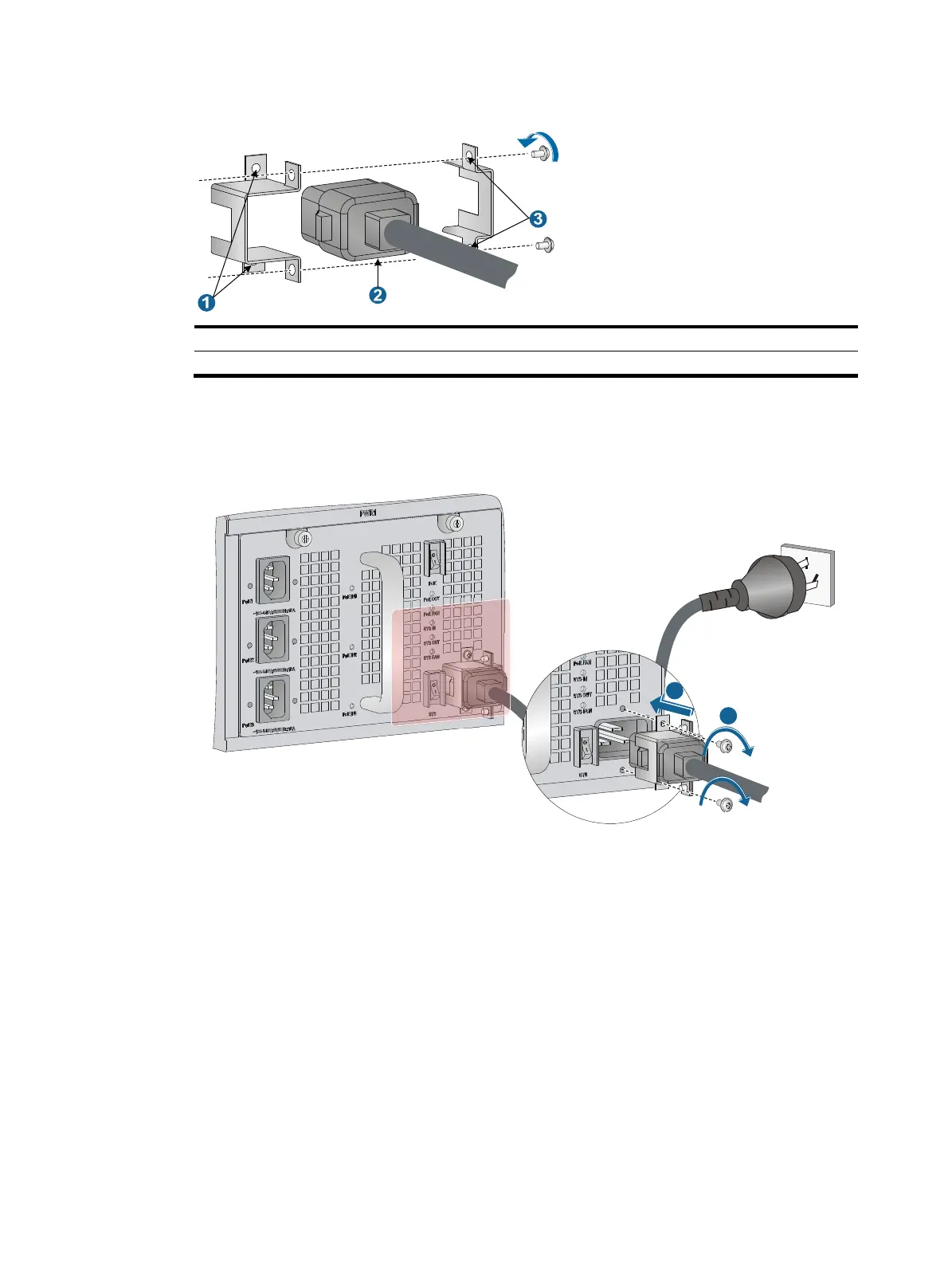

Figure 19 Attaching the power cord retainer suite
(1) Screw holes for connecting the retainer suite to the power module (2) Power cord plug
(3) Screw holes for connectin
g
the two parts of the retainer suite
3. Insert the power cord into the power socket on the power module, and fasten the power cord
retainer suite to the power module.
Figure 20 Connecting the AC power cord to the PSR6000-ACV
1
2
1
6
A
