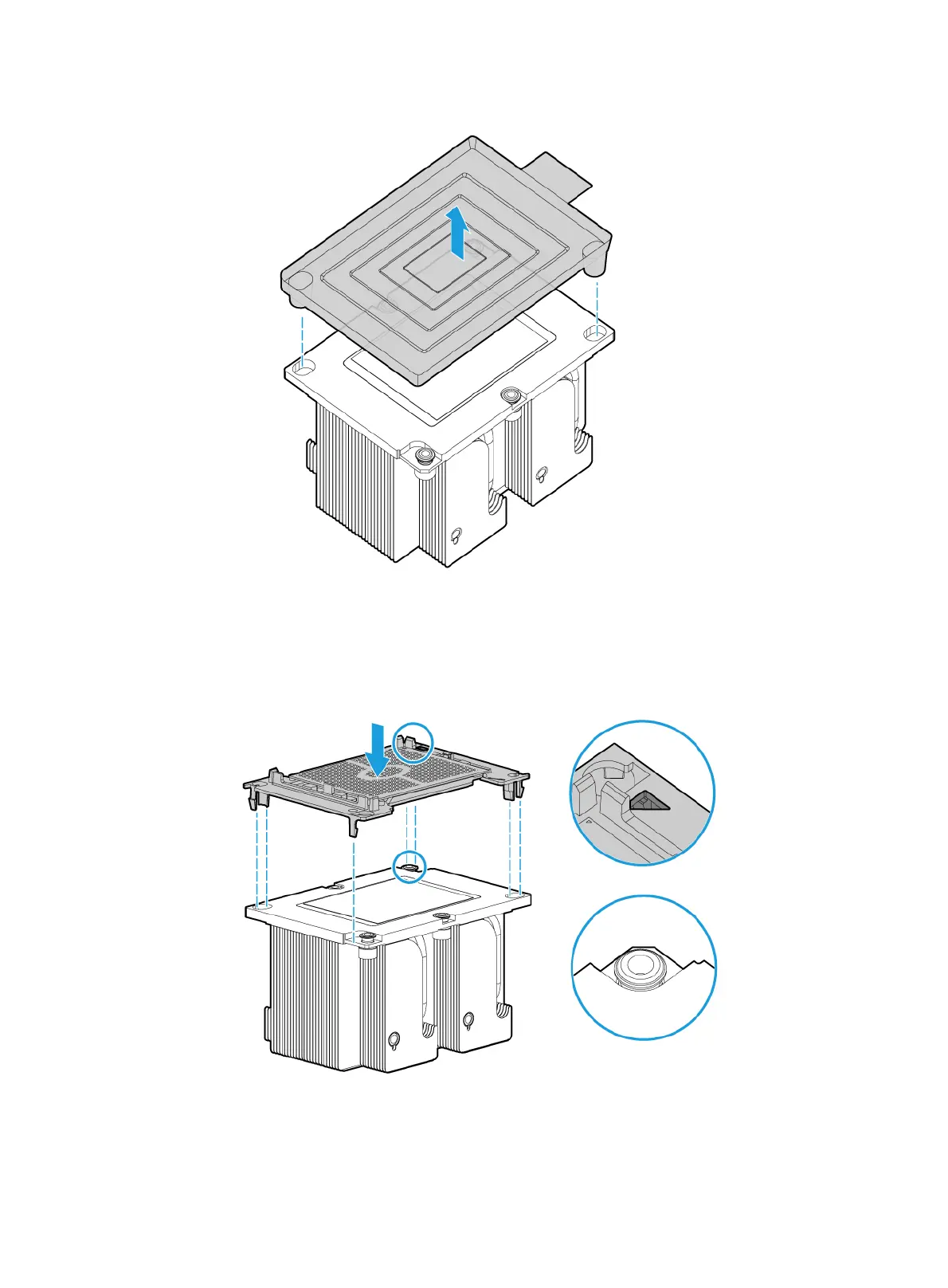

Figure 8 Removing the protective cover from the heatsink
b. Install the retaining bracket onto the heatsink. As shown in Figure 9, align the alignment
triangle on the retaining bracket with the cut-off corner of the heatsink. Place the bracket on
top of the heatsink, with the four corners of the bracket clicked into the four corners of the
heatsink.
Figure 9 Installing the processor onto the heatsink
3. Remove the processor socket cover.
