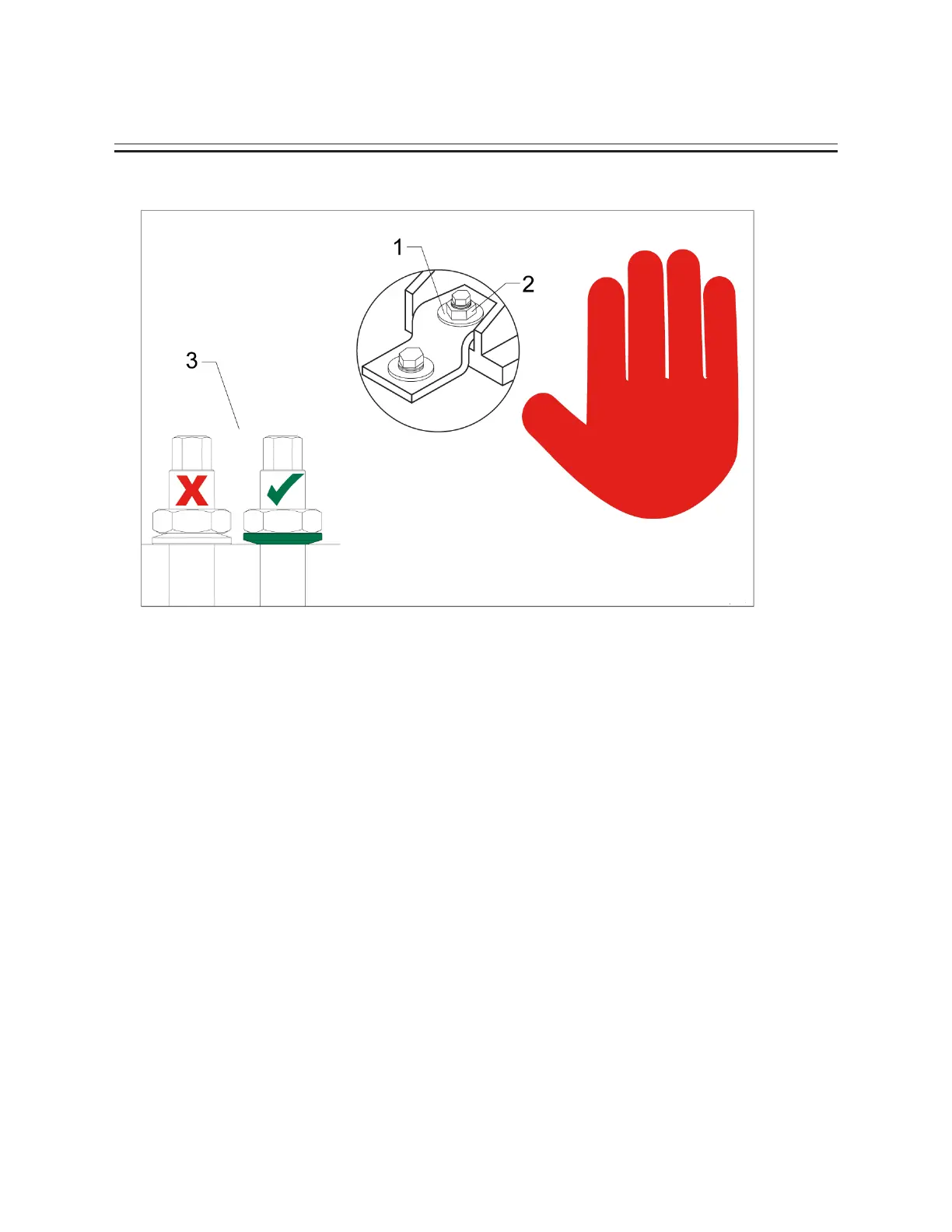

Leveling Screws Hardware
Note: The washers [1] and nuts [2] are installed during shipping and should be saved for installation and not
be discarded.
Note: The washer orientation [3] is important. The conical part of the washer should be against the casting,
see illustration.
