4
Test Remote Jog Handle (RJH-Touch)
If your machine came with the remote jog handle option:
Attach the holster to the machine using the provided hardware
Hang RJH on holster
On the Control Pendant, press [MDI] and then [HAND JOG]. (Image 2)
Verify that the jog wheel on the Control Pendant works properly while RJH is docked
Remove RJH HAND UNIT from the holster. Unit should power on
Calibrate Touchscreen
Refer to Image 1 for the following
Press in the middle of the touch screen, an overlay should appear
Select the jog rate by pressing [LEFT] or [RIGHT] on the screen
Select an axis by pressing [-] or [+] on the screen
Exit the overlay by pressing the [X]
Jog X, Y, and Z with the jog wheel on the RJH
Use RJH key pad to jog X,Y, and Z axes in positive and negative directions
Repeat using Rapid Jog
5

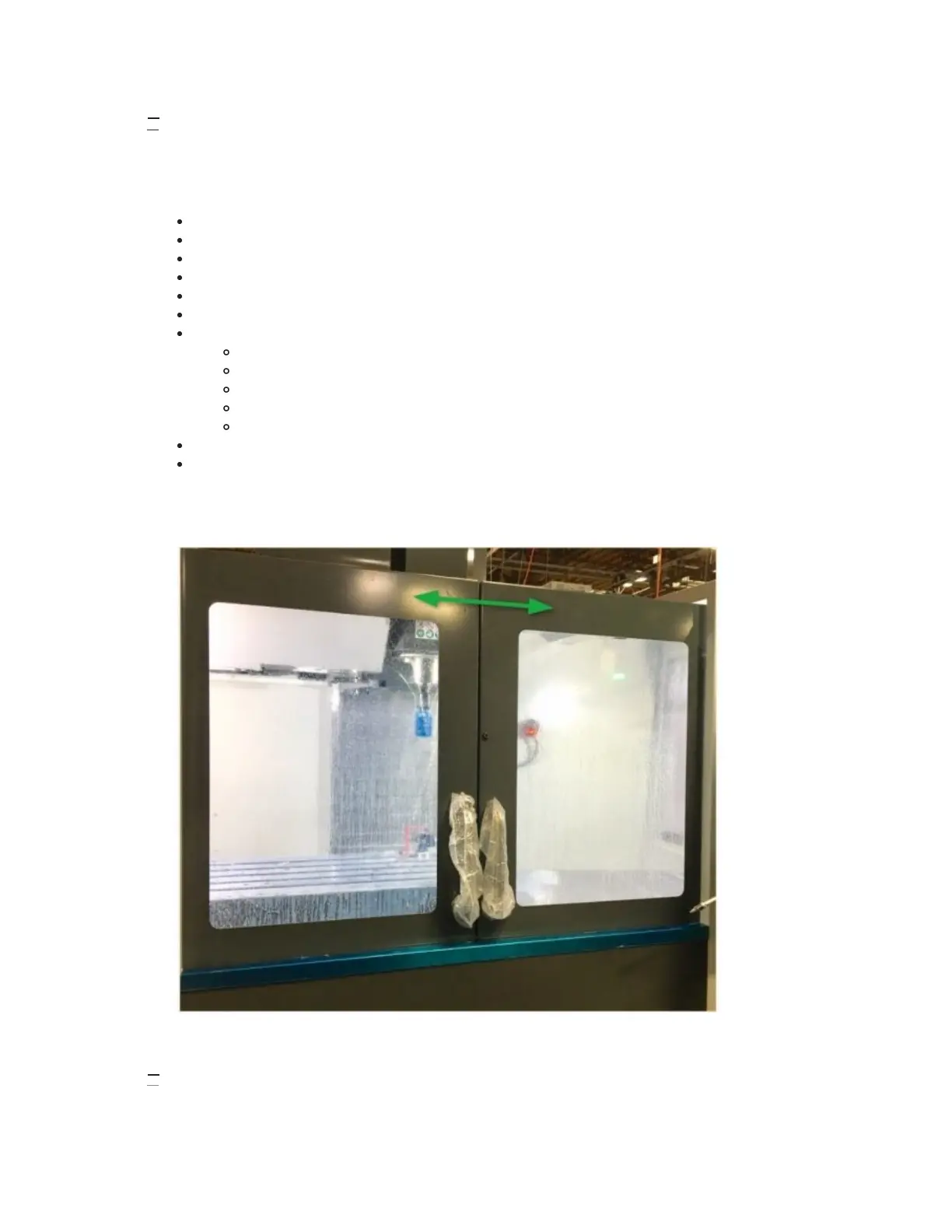

Test Door Interlocks
