Press [MDI]. Type in S500 M3; Press [ENTER]. Make sure the machine IS NOT in SETUP MODE by
Checking the KEY SWITCH on the side of the pendant
With the door open, press [CYCLE START]. The machine should say to close the door and
press CYCLE START
With the door closed, press [CYCLE START]. The INTERLOCK PIN should extend and the
spindle starts rotating
While the locks are on try to open the doors
The spindle should not stop rotating but if the spindle stops, contact Haas for support
6

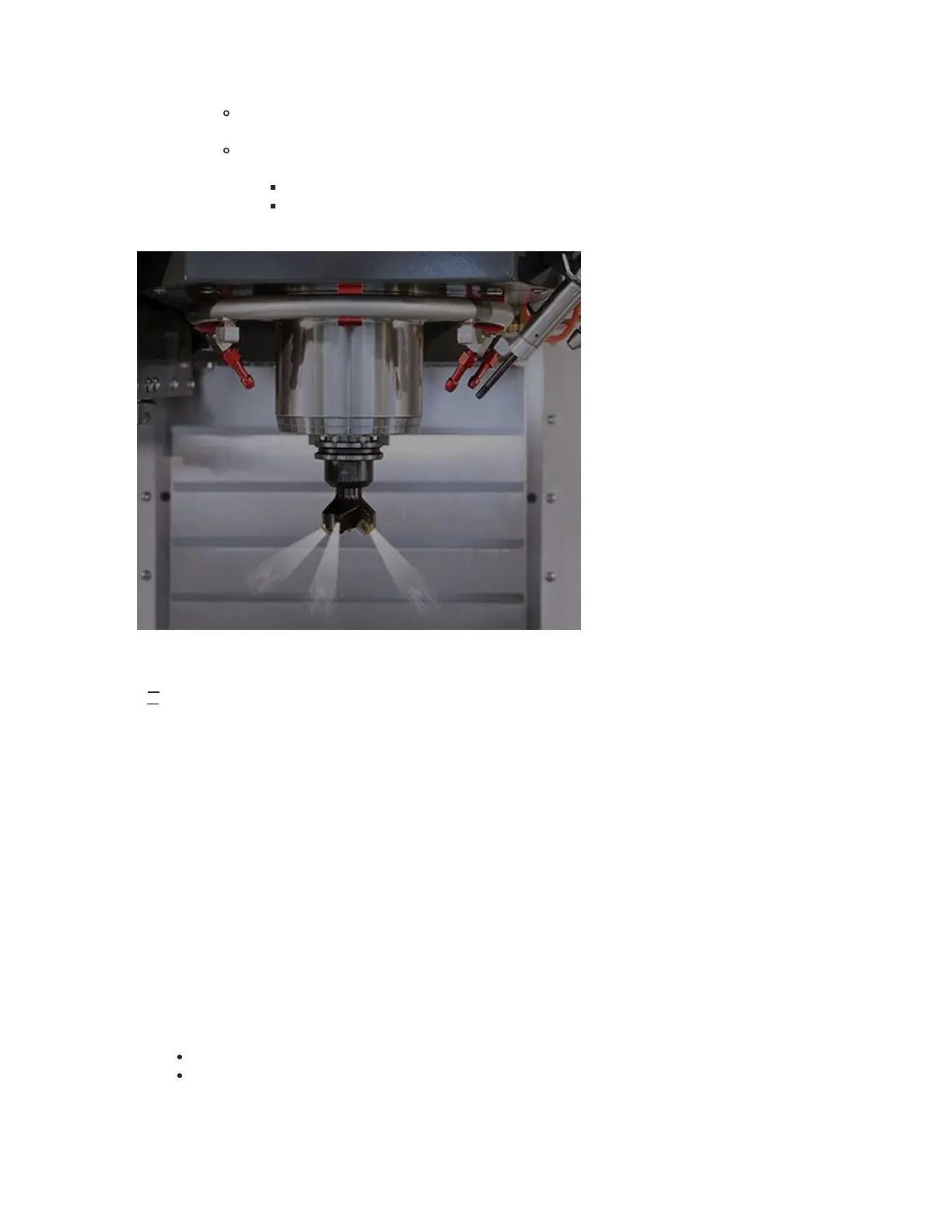

Test Through Spindle Air Blast (TAB)
If your machine came with the TAB option:
Note: PERFORM THIS AFTER TESTING TSC
Press [MDI] and type the following
M73;
S[insert max spindle speed here] M03;
G04 P60. ;
M30. ;
;
Press [CYCLE START]
Verify that full air line pressure blows out of the tool.
This should be similar to the air blow gun pressure.
To Next Page
