Hach 900 MAX - Sigma 900 MAX Refrigerated Sampler Assembly Drawing (2 of 3)

Page 138
Exploded Drawings
8990apdx_exploded.fm
Appendix E

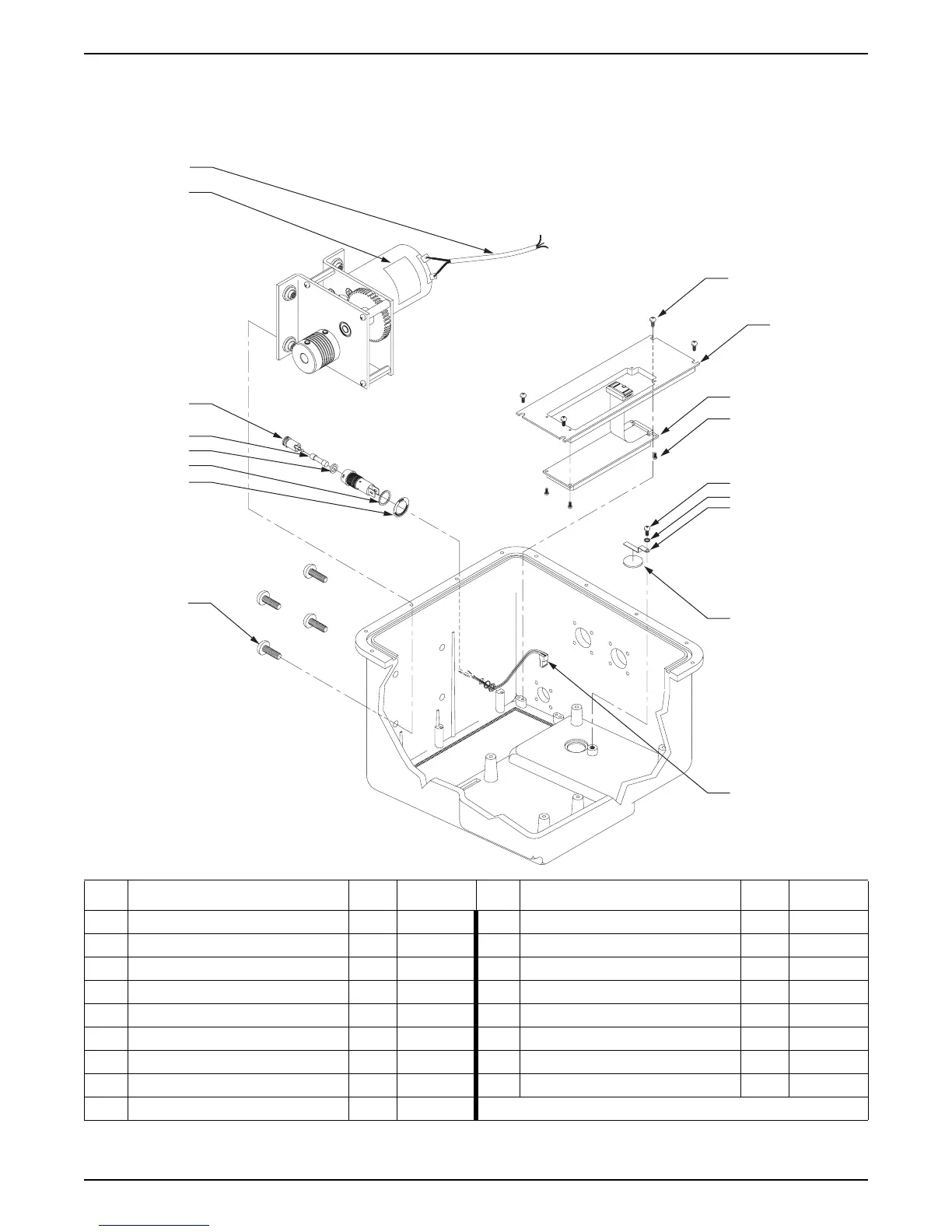

Sigma 900 MAX Refrigerated Sampler Assembly Drawing (2 of 3)
Item Description QTY Cat. No. Item Description QTY Cat. No.
1 Screw 4 SE 244 10 Screw 4 SE 738
2 Bracket 1 8898 11 Overlay, Fuse Holder 1 1436
3 Display Assembly 1 8911 12 O-ring, 1 x 10 mm 1 3319
4 Screw 4 SE 105 13 O-ring 1 3321
5 Screw 1 SE 214 14 Fuse, 5-A, 250-V, Slow-blow 1 8753
6 Washer 1 SE 208 15 Fuse Holder, 5 x 20 mm 1 3320
7 Bracket, Desiccant Card 1 2594 16 Gear Box Assembly 1 8910
8 Humidity Indicator Card 1 2660 17 Cable Assembly, Motor 1 8859
9 Cable Assembly, Fuse Holder 1 3146
1
3
4
2
5
6
7
8
9
10
11
12
13
14
15
16
17
