105
Advanced Operations
6.8
System checks

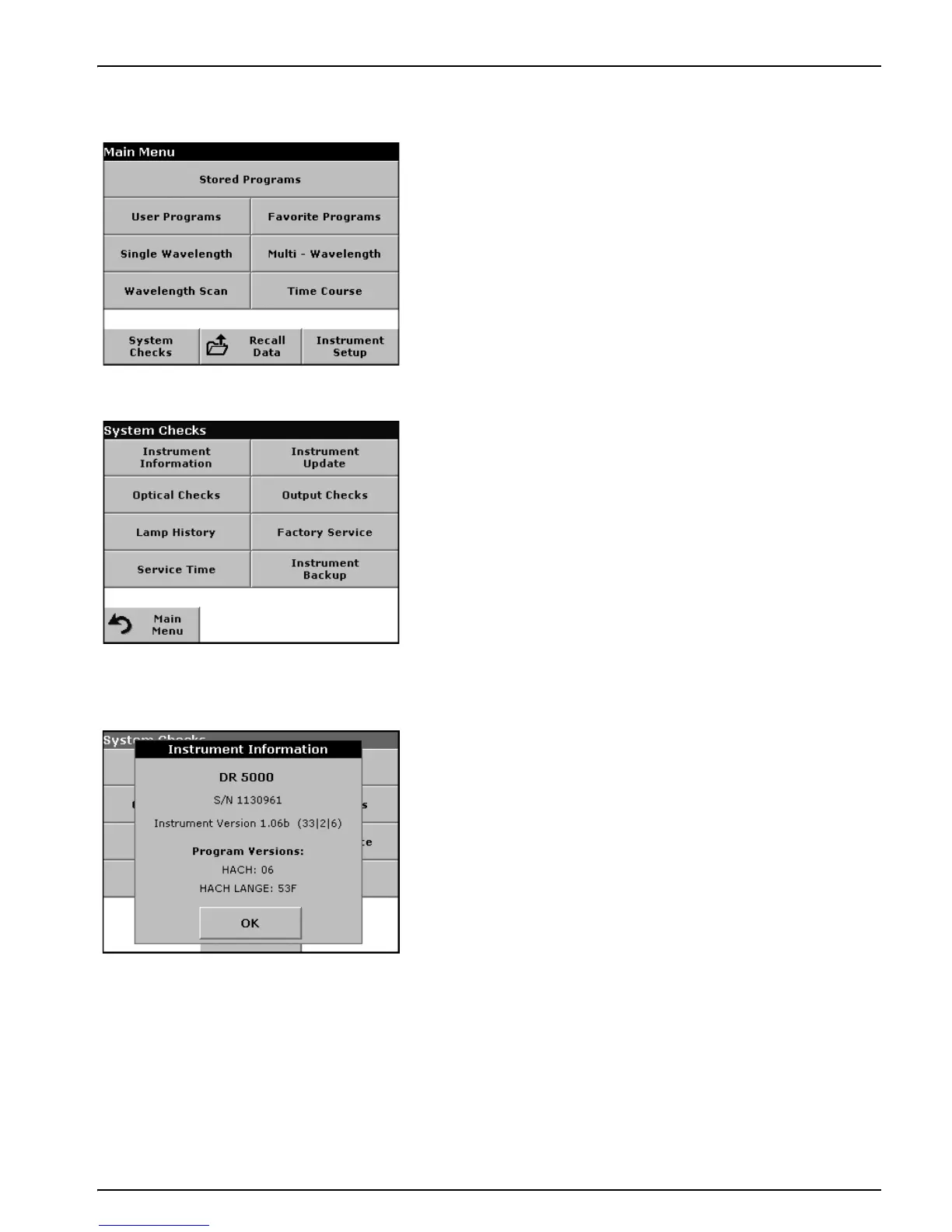

1.
Press
System Checks
in the Main
Menu.
The System Checks menu contain
s instrument information an
d
various performance te
sts.
6.8.1
Instrument information
1.
Press
Instrument Information
in the System Checks menu.
2.
The model, s
erial numbe
r and software versio
n are displa
yed.
