Step Description Picture

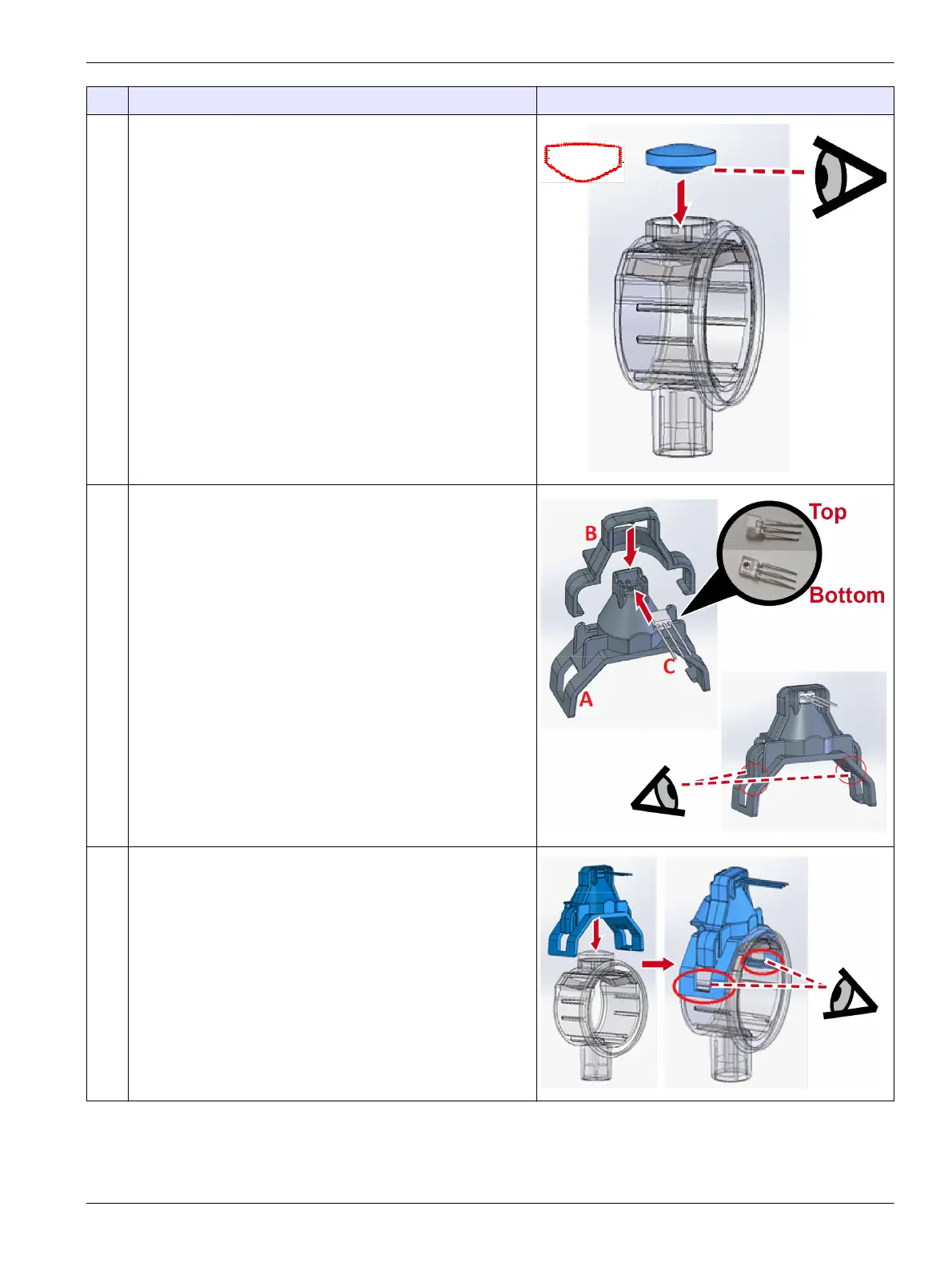

3 Insert the lens.
Note: Make sure that the larger curvature of the lens points
downwards.
4 To mount the detector assembly, slide the retainer (A) in the
detector clip (B). Do not lock it yet.
Insert the detector (C), the lens points downwards.
Snap the retainer on the detector clip.
5 Snap the detector assembly over the optical unit.
Repairs
39
