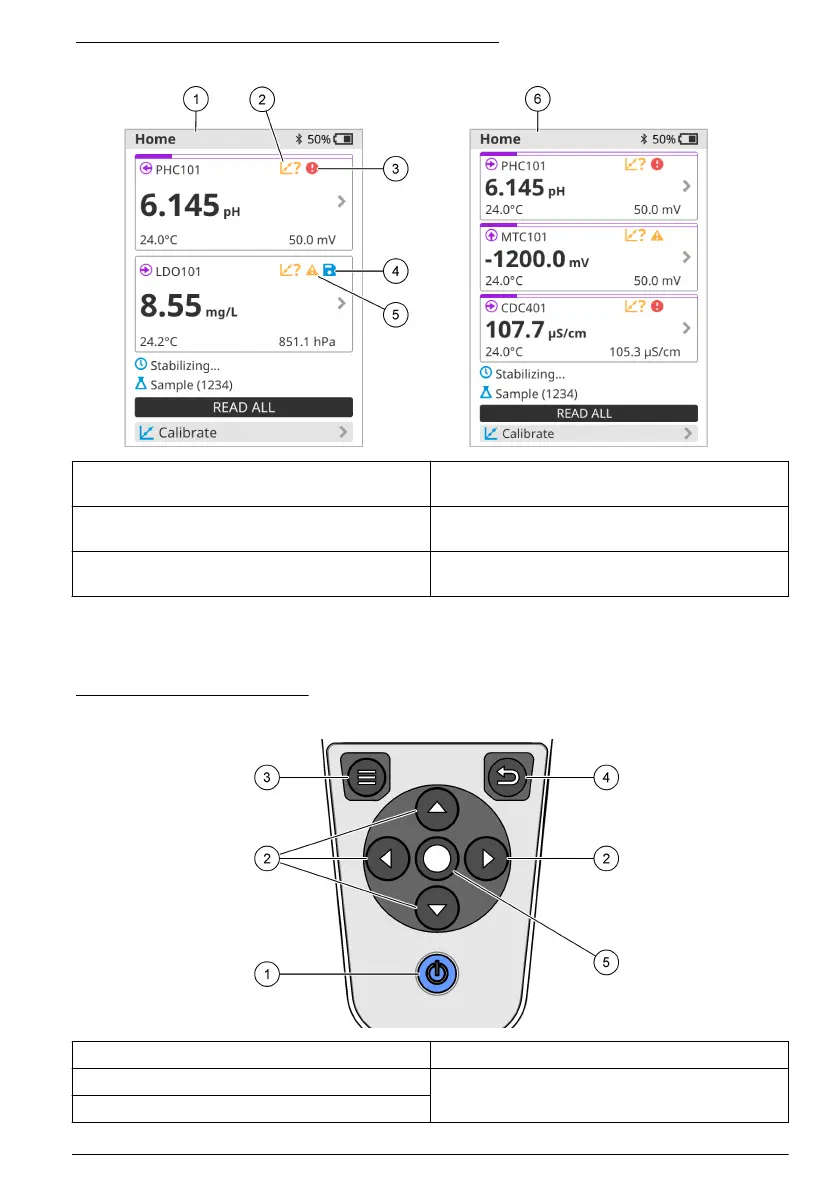

Figure 10 Home screen example—Two or three probes
1 Home screen with two probes 4 Save icon: the measurement data is in the
data log
2 Calibrations icon: indicates that the
calibration was not accepted or has expired
5 Warning icon (refer to Troubleshooting
on page 21)
3 Error icon (refer to Troubleshooting
on page 21)
6 Home screen with three probes
7.2 Keypad
Refer to Figure 11 for a description of the keypad.
Figure 11 Keypad description
1 On/off key 4 Back key
2 Navigation arrows 5 Select key
3 Menu key
English 15
