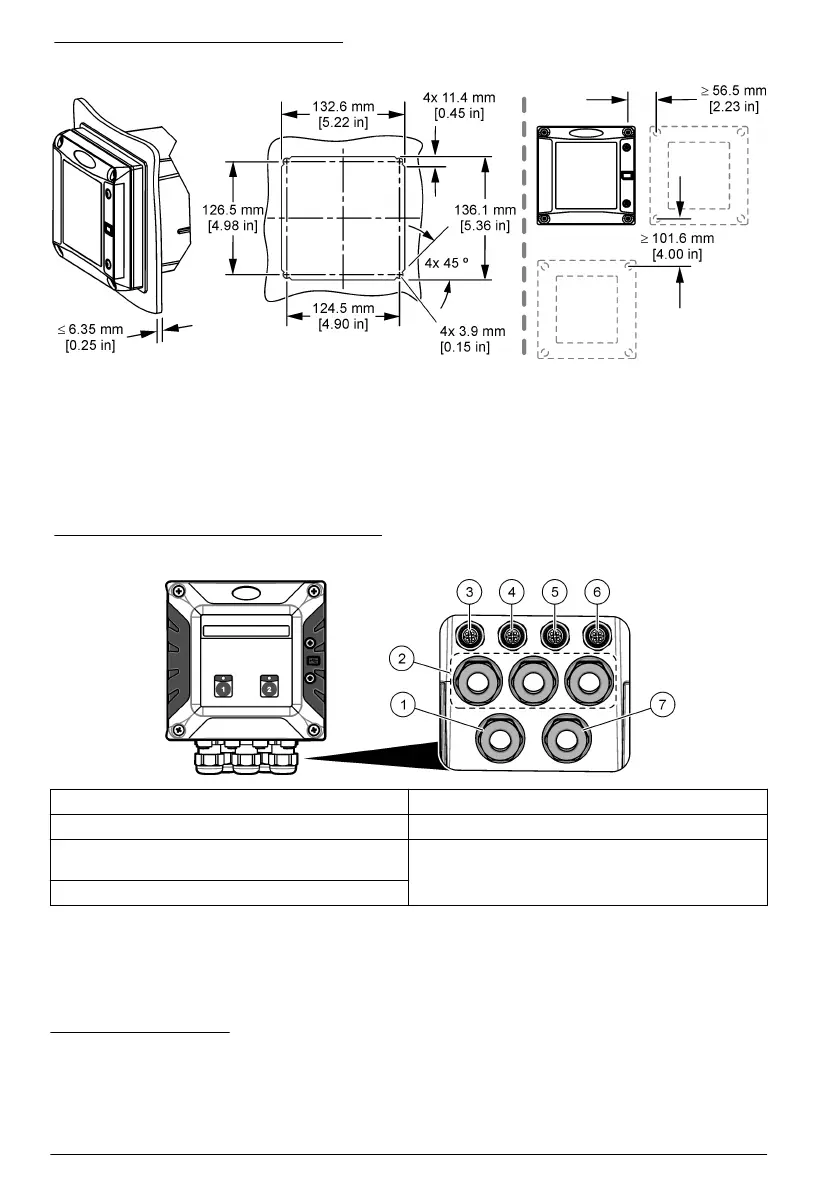

Figure 5 Panel mounting dimensions
Electrical installation
Electrical connectors and fittings
Figure 6 shows the electrical connectors and fittings on the instrument. To keep the environmental
rating of the enclosure, make sure that there is a plug in the strain relief fittings that are not used and
a connector cap on the unused connectors.
Note: The controller is supplied without strain relief fittings installed. The user must order the necessary strain
reliefs.
Figure 6 Electrical connectors and fittings
1 Strain relief fitting for relay 5 Digital SC connector: Sensor 1 (Channel 1)
2 Strain relief fitting for modules 6 Digital SC connector: Sensor 2 (Channel 2)
3 Ethernet connector for TCP/IP based fieldbus
communication
7
7 Power cord (or conduit hub)
9
4 Ethernet connector for LAN connection
8
7
Change the connector configuration for network sharing and share internet connection between
controllers. Refer to the expanded user manual for additional information.
8
Connector used to give internet access to the controller through a customer network with internet
function.
9
The power cord is factory-installed based on the controller configuration.
