Setup Procedures for Cell Salvage P/N 53063-50, Manual Revision: B
4-8
! Thread the effluent tubing through the effluent line sensor. Be sure that the
tubing is threaded deep into the effluent line sensor notch.
.

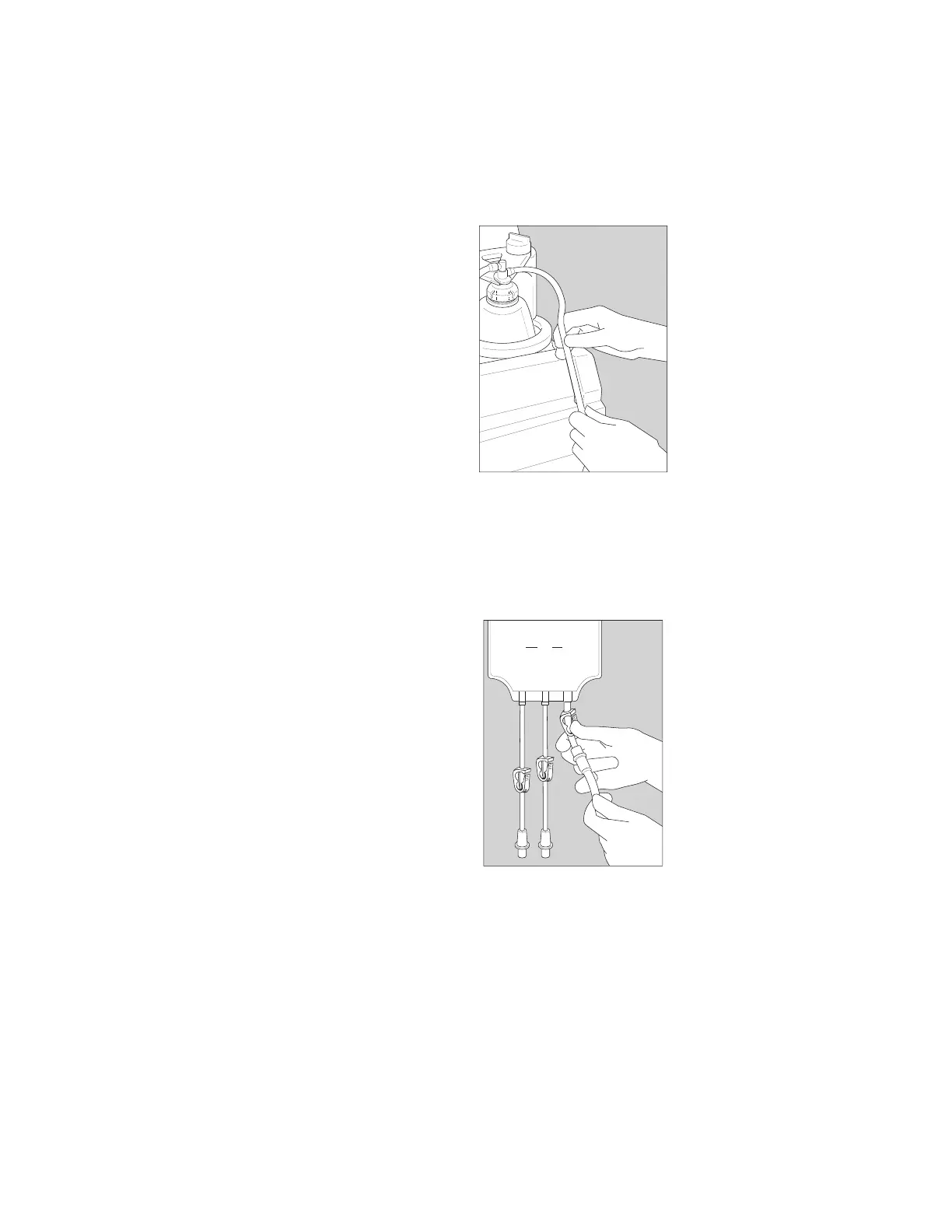

Figure 4-10: Thread Tubing through Line Sensor
4. Hang the Bags
! Hang the reinfusion bag on the IV pole. Close the two small clamps on the
bag. Ensure that the large clamp is open and the bag is securely connected
to the blue line.
Figure 4-11: Hang Reinfusion Bag; Check Connection to Blue Line
MILLILITERS
(APPROXIMATE)
DO NOT
100
