P/N 53063-50, Manual Revision: B Setup Procedures for Cell Salvage
4-9
! Hang the waste bag on the pins on the front of the machine. Ensure that
the waste bag is securely connected to the effluent line and the drain port
is completely closed.

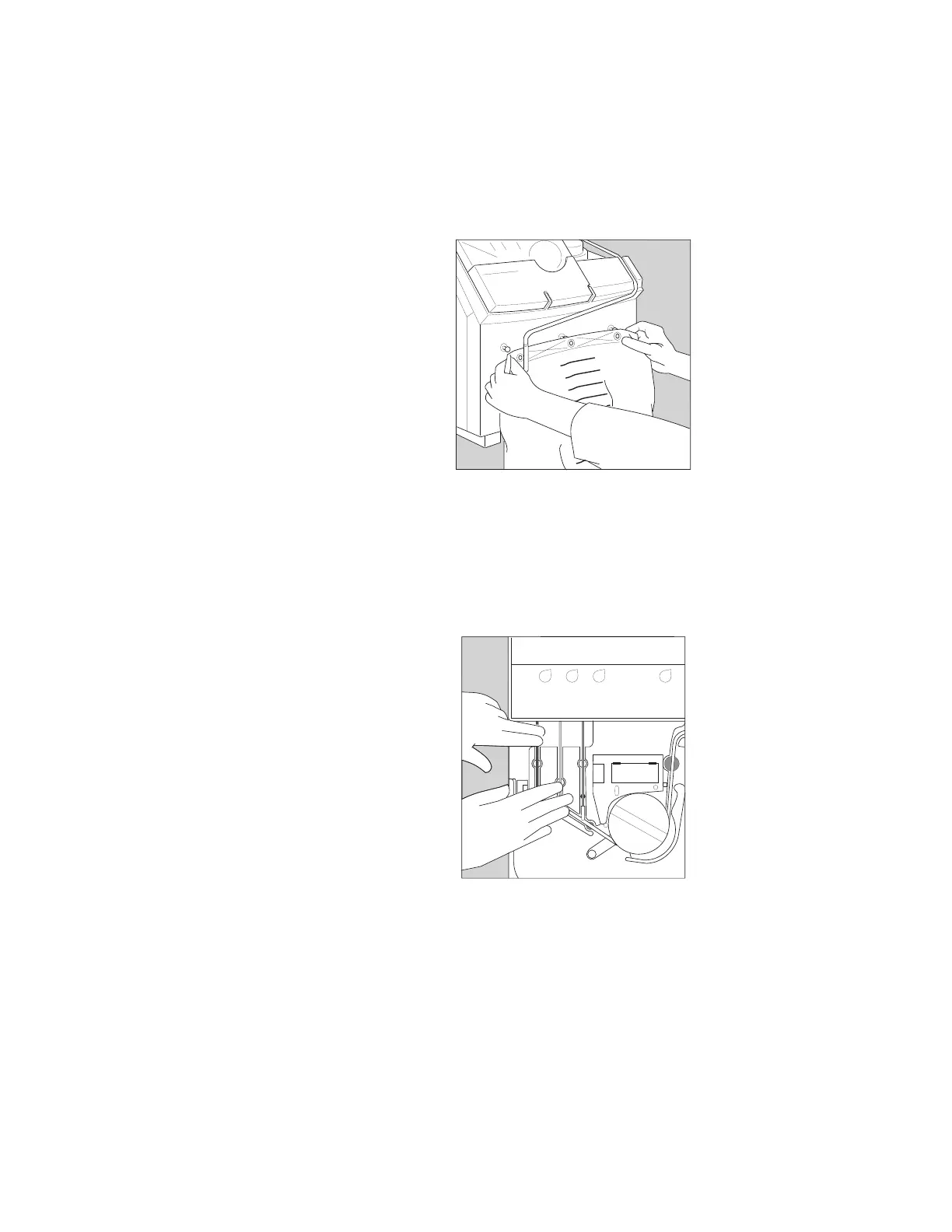

Figure 4-12: Hang Waste Bag and Check Connection to Effluent Line
5. Install the tubing harness.
! Floss the tubing through the air detector.
! Thread the pump tubing around the pump.
! Place the tubing manifold in the slots.
Figure 4-13: Install Tubing Manifold
! Engage the manifold door and close the pump lever.
! Close the centrifuge cover. An audible click will be heard, indicating that
the cover is locked in the closed position.
! Close the fluid deck cover.
! Aseptically attach the red line to the bottom reservoir port and ensure
reservoir slide clamp is open.
