FLOOR TYPE

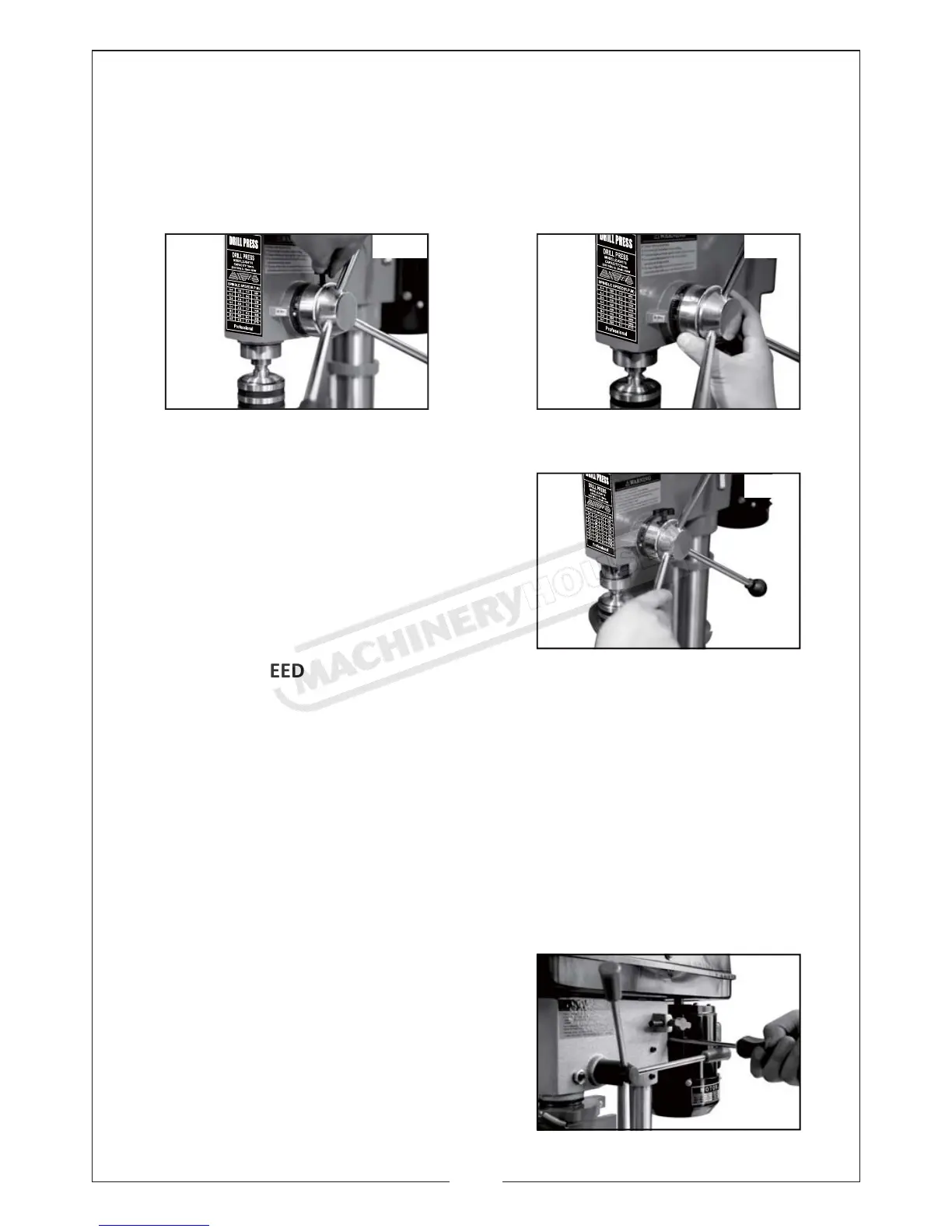

To stop spindle (and bit) at a desired depth:
1. Loosen depth stop lock knob by turning in an an-clockwise direcon (Fig.
33).
2. Rotate depth scale to the desired depth, then ghten half wing bolt (Fig.
34).
To hold the spindle (and bit) at a desired depth:
1. Loosen depth stop lock knob
, turn feed
wheel handle to lowest point (Fig.35).
2. Rotate depth scale to desired depth and
re-ghten depth stop lock knob. This will
hold assembly staone
ry at desired
depth.
CHANING THE SPEED
BENCH TYPE
Before changing the speeds, ensure the machine is switched OFF, and
disconnected from the power supply.
1. Open the pulley cover.
2. Slacken off the belt tension locking knob, to relieve any tension on the drive
belt.
3. Consult the chart inside the pulley cover, and posion the belt on the
pulley's according to the spindle speed required.
4.
When the belt has been correctly posioned, re-tension by levering the
motor away from the head.Lever the motor, with its bracket,away from the
head, so that tension is applied to the
belt. Tension is correct when the belt
defl ects by approx. ½”at its centre,
when using reasonable thumb pressure.
Lock the motor in this posion using
the locking knob.
Fig.34
Fig.36
Fig.33
15
Fig.35
