Digitech ENU rev. Feb 2011
©Haglöf Sweden®AB Mantax Digitech - 19 -
DATA FILE FROM THE CALIPER
Data from the Digitech caliper can be stored as a dig-file. This file can be opened later on if you wish to delay
export of data.
A register in the dig-file will be stored as a four (4) digits string where the first digit signifies code as ´1`… ´8`and
the three remaining digits show the tree diameter in mm.
For example: 11232345
1st register: Code 1, 123mm
2nd register: Code 2, 345mm

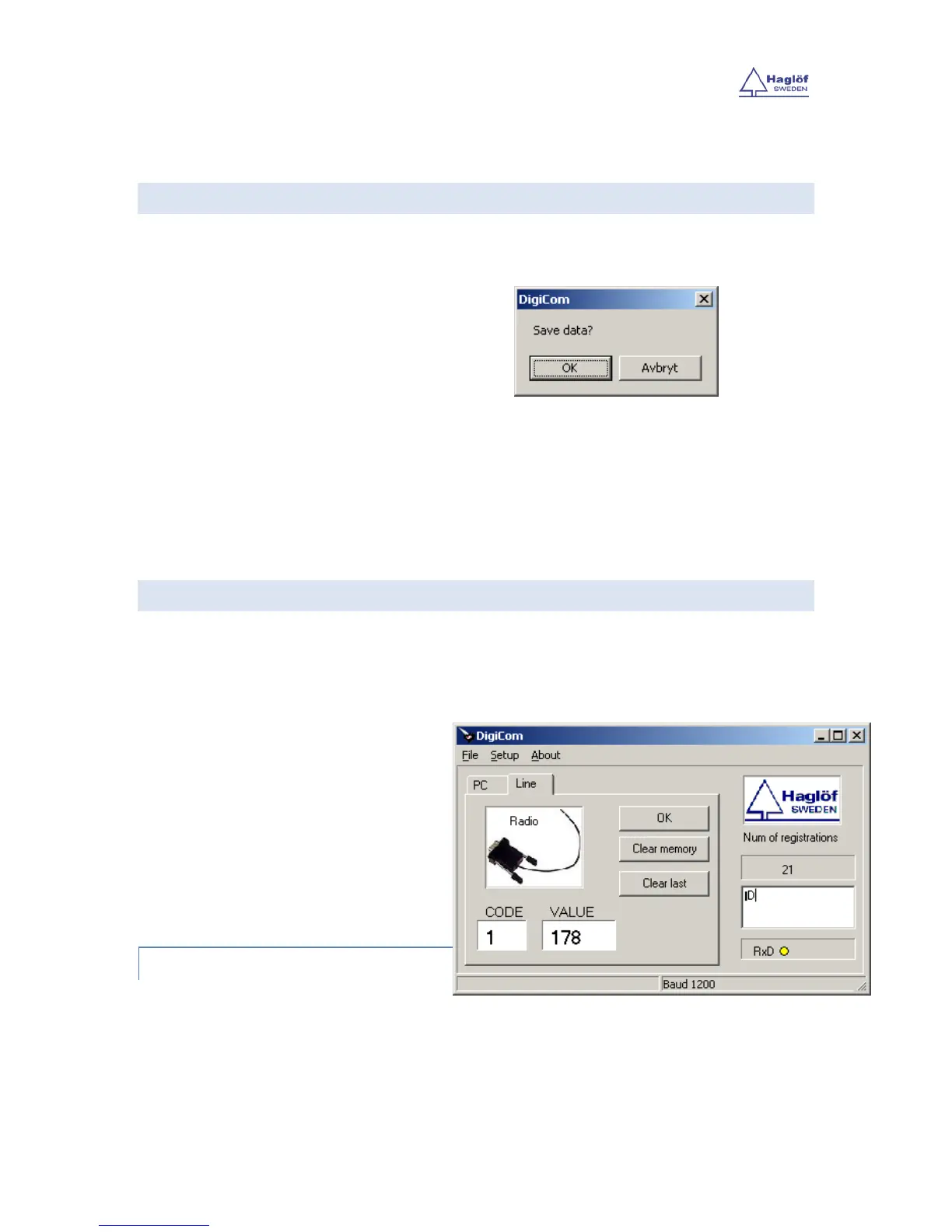

LINE
Data from the Digitech® can be transferred online to DigiCom. Choose LINE in the Digitech menu and Line in
the DigiCom. Data from the current registration will be received by the connected radio receiver and stored by
the DigiCom. By clicking in the field below CODE or VALUE you can make changes in the last registration.
Delete is easiest made in “Delete last”. Choose OK after finishing the measuring and to start exporting data.
