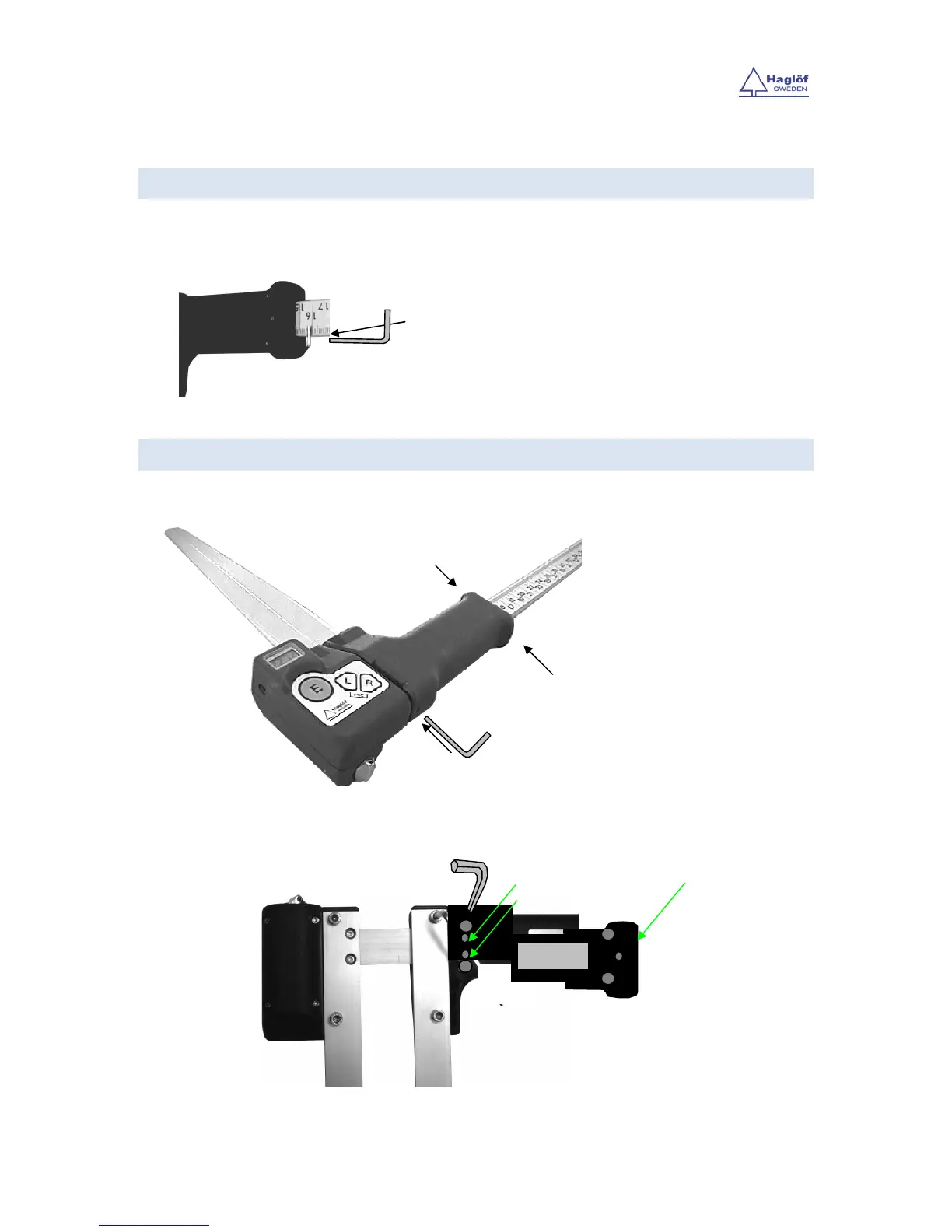

ADJUST THE HANDLE

In the back part of the caliper handle you will find a compartment containing a small Allen key. Use the Allen

key to adjust the sliders and jaw angle for perfect run and alignment.

JAW ANGLE

Adjust screw 1 until the handle runs smoothly. Adjust screws 2 and 3 for the jaws to be aligned (parallel).

Tighten screws 4, 5 and 6 for the handle to run smoothly.

Screw 1

Screw 2

Screw 3

Mantax DigiTech

Screw 4,5

Screw 6

Allen key
