Haier 48E2500 - Internal Component Removal Steps; Internal Cable Disconnection; Main Board and I;O Cover Removal

Service Manual
Model No.:48E2500
- 14 -

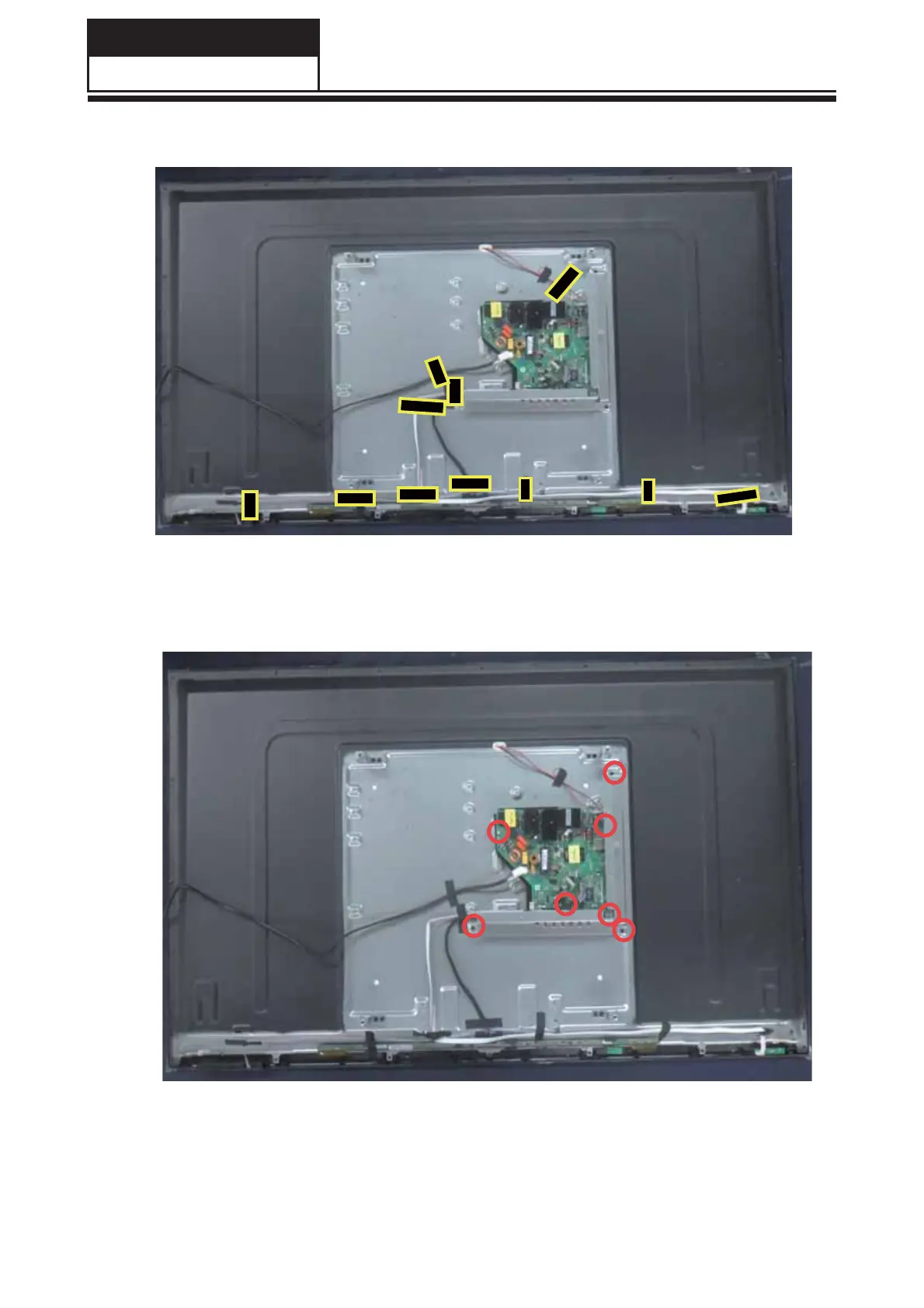

5. Disconnect the cables and remove them from the unit.
6. Remove the screws securing the main board, side I/O cover and bottom
I/O cover, then remove them from the unit. Torque: 3.8±0.3 kgf-cm.
