Haier 48E2500 - TV Disassembly Procedures; Pedestal Removal Instructions; Back Cover Removal Steps

Service Manual
Model No.: 48E2500
- 12 -
4. Disassembly Procedures

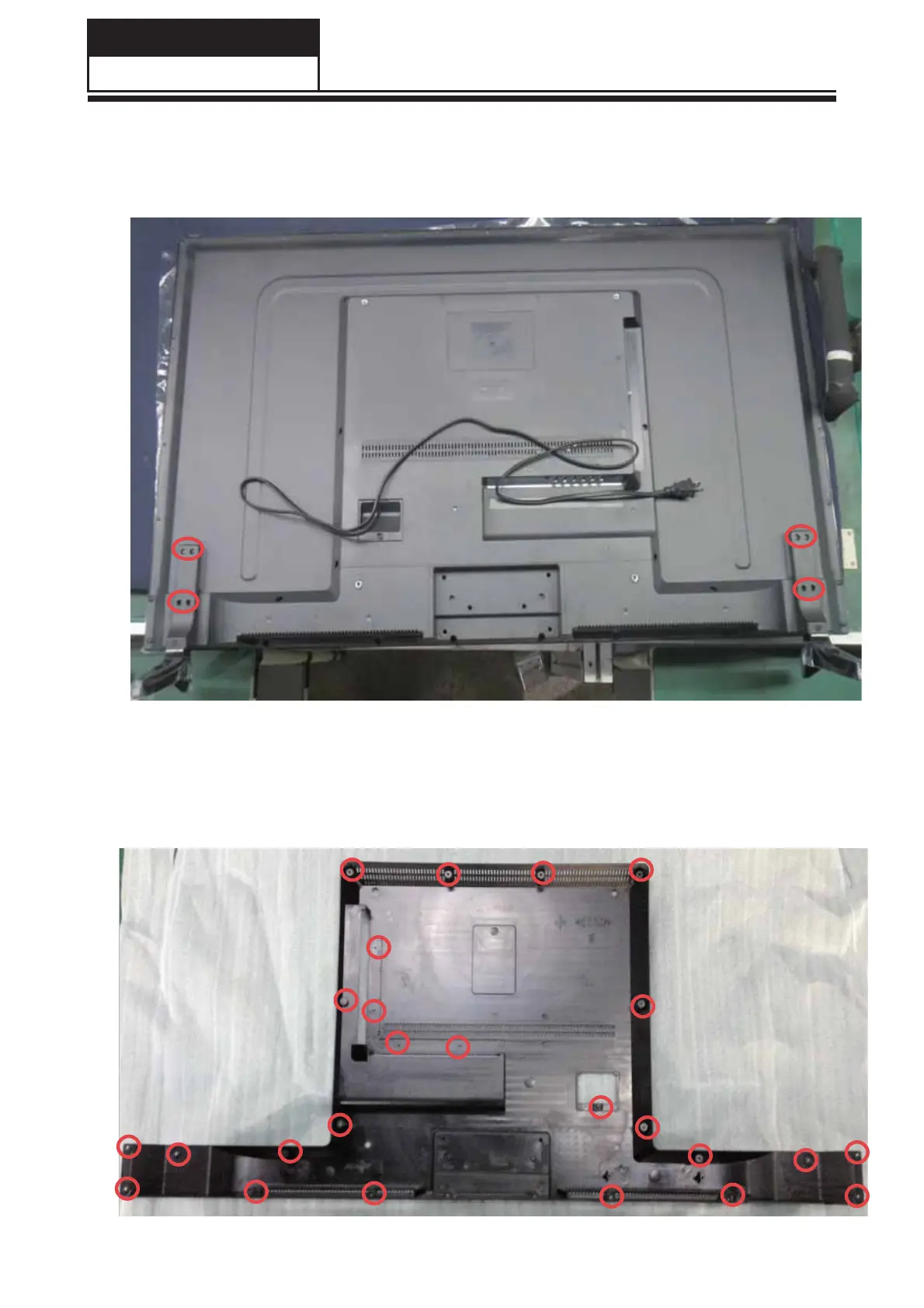

1. Remove the screws securing the pedestal. Torque: 3.8 ± 0.53 kgf-cm.
2. Remove the screws securing the back cover. Torque: 3.8 ± 0.53 kgf-cm.
