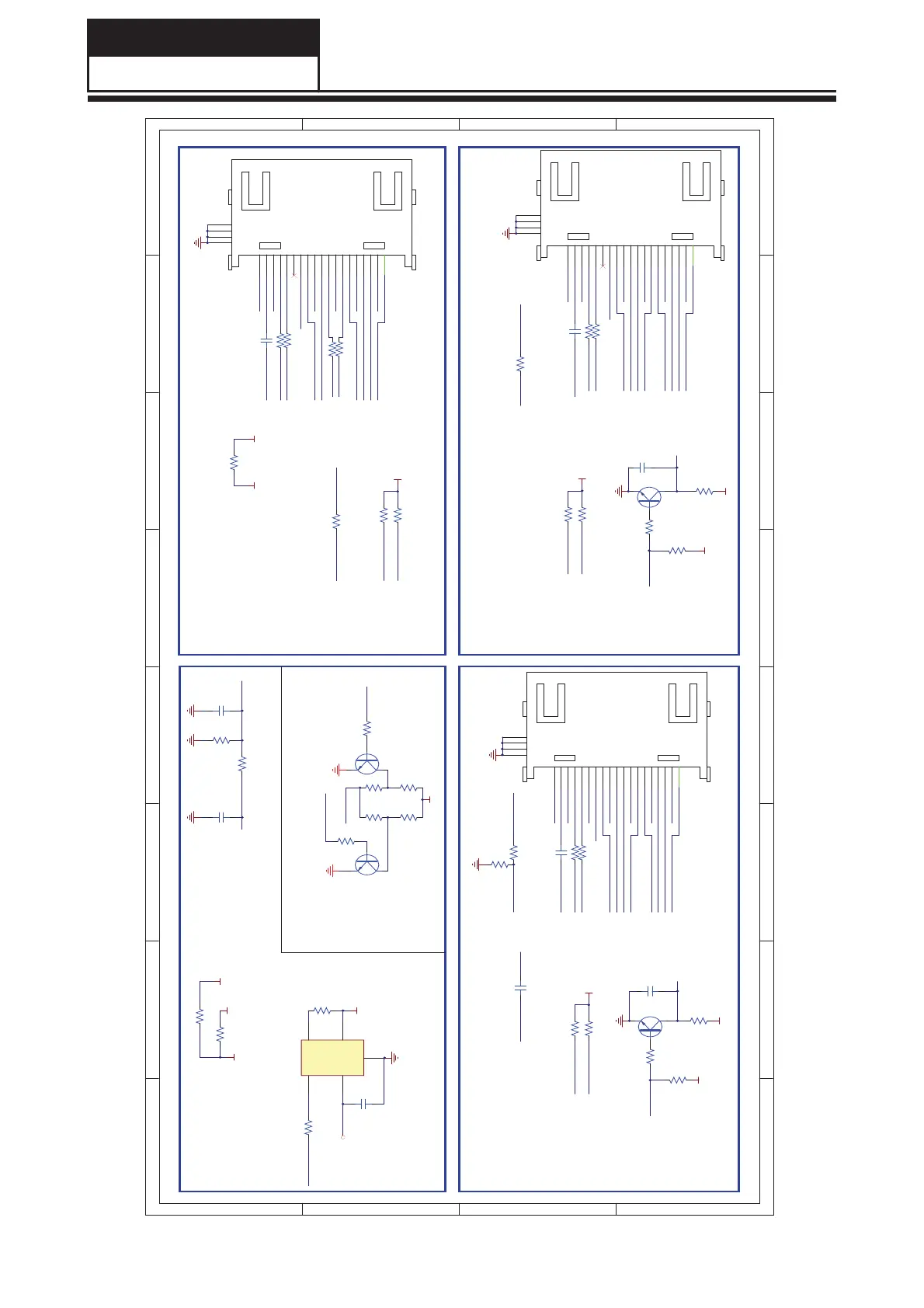

Haier 48E2500 - Analog and HDMI Connection Schematics; HDMI Connector Circuit Details

Service Manual
Model No.: 48E2500
- 31 -
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
D D
C C B B
A A
HDMI1_5V
RH3
1Kohm-0402-±5%-1/16W
QH1
KMBT3904
RH2
10Kohm-0402-± 5%-1/16W
RH1
10Kohm-0402-± 5%-1/16W
HDMI1_5V
HOTPLUG1'
HDMI1_5V
HOTPLUG1
RH5
10Kohm-0402-± 5%-1/16W
RH4
10Kohm-0402-± 5%-1/16W
HDMI1_SCL/
HDMI1_SDA/
GND GND GND GND GND HDMI1_5V CEC HOTPLUG1 HDMI1_SCL/ HDMI1_SDA/
HDMI1_SCL HDMI1_SDA GND
AVDD5V_CD
RH27
33ohm-0402-±5%-1/16W
HOTPLUG2'HOTPLUG2
RH25
10Kohm-0402-± 5%-1/16W
RH24
10Kohm-0402-± 5%-1/16W
HDMI2_SCL/ HDMI2_SDA/
GND GND GND GND HDMI2_5V CEC HOTPLUG2 HDMI2_SCL/ HDMI2_SDA/
RH31
33ohm-0402-±5%-1/16W
RH30
33ohm-0402-±5%-1/16W
HDMI2_SCL HDMI2_SDA GND
HDMI1_RXC_N HDMI1_RXC_P HDMI1_RX0_N HDMI1_RX0_P HDMI1_RX1_N HDMI1_RX1_P HDMI1_RX2_N HDMI1_RX2_P
HDMI2_RXC_N HDMI2_RXC_P
HDMI2_RX0_N HDMI2_RX0_P
HDMI2_RX1_N HDMI2_RX1_P HDMI2_RX2_N HDMI2_RX2_P
RH16
33ohm-0402-±5%-1/16W
RH15
33ohm-0402-±5%-1/16W
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20
HPD
HDMI
+5V GND SDA SCL ARC CEC RXC- GND RXC+ RX0- GND RX0+ RX1- GND RX1+ GND RX2+ RX2-
21
22
23
GND
GND
GND
GND
AV1 HD-AF05-S011
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20
HPD
HDMI
+5V GND SDA SCL ARC CEC RXC- GND RXC+ RX0- GND RX0+ RX1- GND RX1+ GND RX2+ RX2-
21
22
23
GND
GND
GND
GND
AV2 HD-AF05-S011
CH18
NC/0.1uF-0402-X5R-± 20%-16V
CH13
NC/22pF-0402-NPO-±5%-50V
MHL_CD_SENSE
RH10
100ohm-0402-±5%-1/16W
RH11
300Kohm-0402-± 5%-1/16W
MHL_CABLE-DETMHL_CD_SENSE
GND
CH9
NC/NC/0.1uF-0402-X5R-± 20%-16V
GND
GND
CH20
NC/33pF-0402-NPO-±5%-50V
HDMI-CEC
RH14
220ohm-0402-±5%-1/16W
CEC
MHL_CD_SENSE
HDMI2_5V
RH19
10Kohm-0402-± 5%-1/16W
RH12
47Kohm-0402-± 5%-1/16W
FLAG
5V_STB
SENSE
GND
RH43
1Kohm-0402-±5%-1/16W
QH2
KMBT3904
RH42
10Kohm-0402-± 5%-1/16W
RH41
10Kohm-0402-± 5%-1/16W
HDMI3_5V
HOTPLUG3'
GND
HDMI3_5V
HOTPLUG3
RH45
10Kohm-0402-± 5%-1/16W
RH44
10Kohm-0402-± 5%-1/16W
HDMI3_SCL/ HDMI3_SDA/
HDMI3_5V
GND GND GND GND GND HDMI3_5V CEC HOTPLUG3 HDMI3_SCL/ HDMI3_SDA/
RH7
33ohm-0402-±5%-1/16W
RH6
33ohm-0402-±5%-1/16W
HDMI3_SCL HDMI3_SDA GND HDMI3_RXC_N HDMI3_RXC_P HDMI3_RX0_N HDMI3_RX0_P HDMI3_RX1_N HDMI3_RX1_P HDMI3_RX2_N HDMI3_RX2_P
HDMI_ARC
CH12
NC/22pF-0402-NPO-±5%-50V
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20
HPD
HDMI
+5V GND SDA SCL ARC CEC RXC- GND RXC+ RX0- GND RX0+ RX1- GND RX1+ GND RX2+ RX2-
21
22
23
GND
GND
GND
GND
AV3 HD-AF05-S011
HDMI-ARCHDMI_ARC
CH8
NC/NC/0.1uF-0402-X5R-± 20%-16V
GND
HDMI2_5V
RH59
0ohm-0402-± 5%-1/16W
5V_STB
AVDD5V_CD
RH60
NC/0ohm-0402-± 5%-1/16W
RH56
22Kohm-0402-± 5%-1/16W
RH55
33Kohm-0402-± 5%-1/16W
HDMI3_DETHDMI3_5V
CH14
1uF-0402-X5R-±20%-6.3V
CH15
0.047uF-0402-X7R-± 10%-16V
CH6
10uF-0603-X5R-± 20%-6.3V
OUT
1
GND
2
FLG
3
EN
4
IN
5
UH2
AP2171WG-7
RH29
10ohm-0402-±5%-1/16W
HDMI2_5V AVDD5V_MHL
RI72
22Kohm-0402-± 5%-1/16W
QI1
KMBT3904
QI2
KMBT3904
RI70
4K7ohm-0402-± 5%-1/16W
RI74
10Kohm-0402-± 5%-1/16W
RI71
10Kohm-0402-± 5%-1/16W
3V3_STB
RI77
4K7ohm-0402-± 5%-1/16W
RI73
10Kohm-0402-± 5%-1/16W
HDMI1_5V
HDMI12_DET
HDMI2_5V
RH32
0ohm-0402-± 5%-1/16W
RH33
0ohm-0402-± 5%-1/16W
