Chapter 3 Disassembly

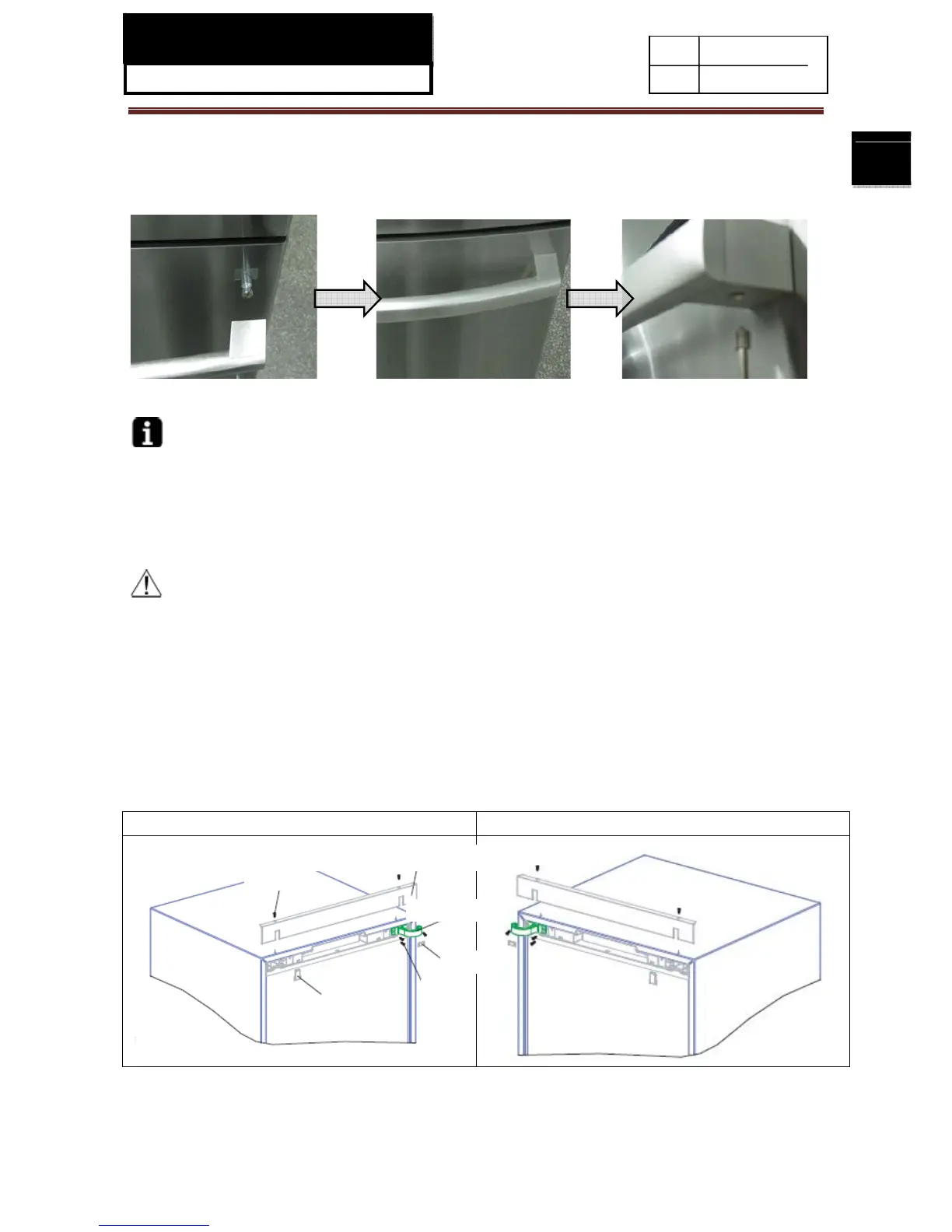

3-1 Installing the Freezer Drawer Handle
(1) Take the handle from the packing bag and align it with the handle seat on the door.
note: the screw hole on the handle should be facing downward.
(2) Secure it with the screw from the bottom.
3-2 Installing and Removing Door
Precautions During Dismantling and Installation of The Door
(1) Before removing the doors, please remove food from the shelves and the bottle guards. Then,
unplug the refrigerator power cord to avoid personal injury, product damage or property loss.
(2) During dismantling of the door, in order to avoid possible personal injury, product damage or
property loss, at least two adults are needed to perform the following operations.
(3) While lifting the hinges to separate it from the door, please take care to prevent the door from falling
forward.
3-2-1 Dismantle and install front decoration strip of the table-board and the upper hinge
PART-1 Before change
After change
⑴ Pull decoration covers 1 and 2 downward to remove them and retain.
⑵ Detach the 2 screws fixing the front decoration strip of the table-board.
Front decoration strip of the table-board
Screw
Upper hinge
Cover 2
Screw
Cover 1
