(3) Detach the screws fix on the top cover of the cabinet (fig.③);
(4) Remove the top cover of the cabinet (fig.④);
(5) Pull out the connector and remove the front decoration strip of the table-board (fig. ⑤⑥).

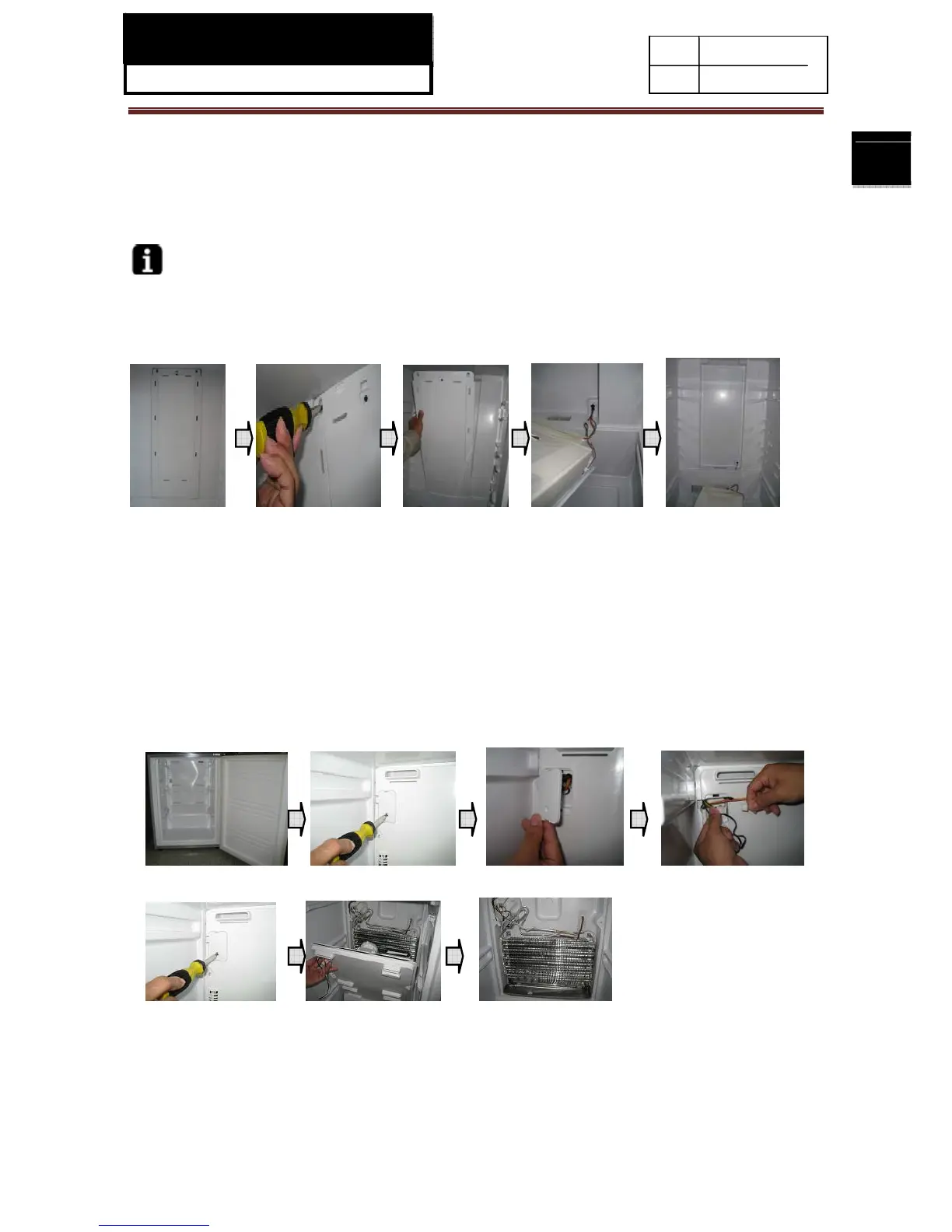

3-5 Removing the Air-Duct
Unplug the refrigerator before removing the air-duct
3-5-1 Removal of fridge air-duct
① ② ③ ④ ⑤
(1) Take out the accessories in the fridge storage compartment which may interfere with the removal
of the air-duct (including shelves, large and small crispers, air-duct decoration strips) (fig. ①);
(2) Detach the 2 screws in the upper part of the air-duct (fig. ②);
(3) Tilt the refrigeration air-duct forward entirely around its upper side until you can see the connector
on its lower side. Pull out the connector and you can remove the refrigeration air-duct (fig. ③④⑤);
3-5-2 Removal of freezing air-duct
① ② ③ ④
⑤ ⑥ ⑦
(1) Take out the accessories in the freezer storage compartment which may interfere with the
removal of the freezing air-duct (drawers of 2-door models, middle/bottom doors and drawers of
3-door models) (fig ①);
(2) Detach the screw in the harness cover over the freezing air-duct; (fig ②);
