hinge.
(4) Fix the lower hinge to the bottom of the other side of the cabinet. Then, mount the lower door on
the lower hinge.
(5) Take out the 3 hole plugs on the other side of the cabinet.
Turn the middle hinge by 180 degrees and install it on the other side of the cabinet. Attach the 3
screws removed in step 1. Mount the 3 hole plugs into the holes where the hinge is seated
originally.
Note: For 3-door refrigerators, the operation concerning the lower hinge is not needed.

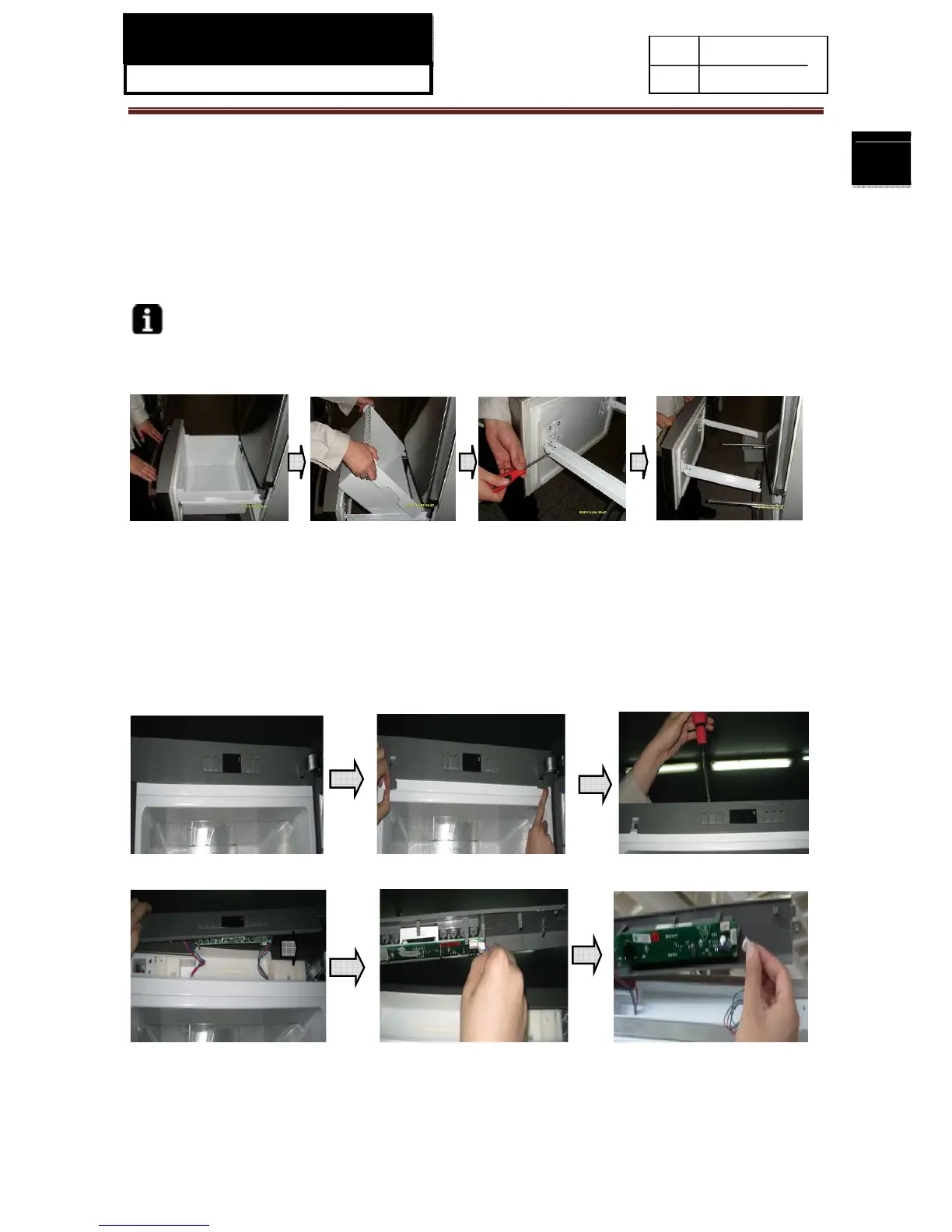

3-3 Removing the Freezer Drawer
(1) Open the freezer storage compartment door of the 3-door refrigerator;
(2) Take out the drawer;
(3) Detach the screw connecting the rail and the support iron (the screw may be on the inner side of the
support iron due to the rail);
(4) Remove the door.
3-4 Removing the Cabinet Display Panel
① ② ③
④ ⑤ ⑥
(1) Open the fridge door (fig. ①);
(2) Remove the two small decorative covers of the cabinet (fig.②);
