SERVICE MANUAL
Model: AFL631 & CFE633
13
Issue 200905
Rev. Ref0905S003V0
⑶ Lift the front decoration strip of the table-board outward and upward. At this time, there are wires
connecting it. Please do not disconnect the wires. Gently put the front decoration strip on the top
of the refrigerator.
⑷ Detach the screws affixed to the upper hinge and remove the hinge.
⑸ Turn over the upper hinge and fix it on the other side. Then, install the front decoration strip of the
table-board in the reversed direction.
⑹ Secure the 2 screws on the top.
⑺ Install the 2 decoration covers on the front decoration strip of the table-board with their positions
exchanged.
Note: for the models with cabinet display, the front decoration strip of the table-board is different
from the one shown in the figure. The dismantling and installation methods are the same.

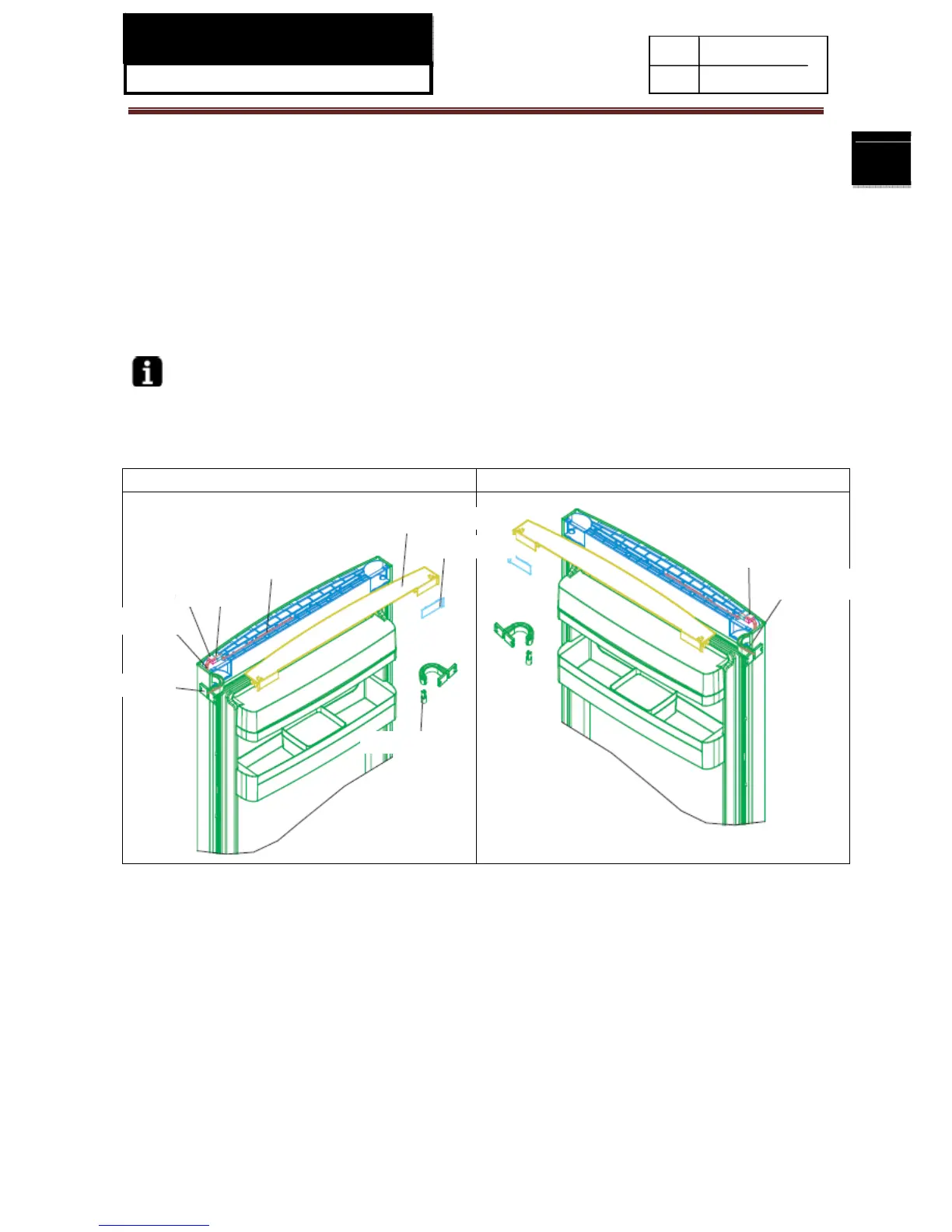

3-2-2 Dismantle and install the upper decoration strip and cables
PART-2 Before change
After change
(1) Remove the decoration covers from the door and retain.
(2) Remove the upper decoration strip from the door. Insert a “-”screwdriver into the decoration strip at
the position shown by the arrow and lightly pull the screwdriver handle in the arrow direction while
pulling the decoration strip upward with another hand. In this way the decoration strip will detach
away from the door. The operation methods on the right side and the left side are the same.
(3) Disconnect the connectors and pull out the cables in the door conduit and the cables in the upper
hinge conduit respectively.
(4) Loosen the screws affixed to the upper hinge to remove the hinge. At the same time, the
refrigerating compartment door can be lifted up and separated from the middle hinge.
Upper decoration strip
Decoration cover
Upper hinge axis
Upper hinge
Cables in cabinet
Connector
Cables for the doors
Connector
Cables in cabinet
To Next Page
