SERVICE MANUAL
Model: AFL631 & CFE633
24
Issue 200905
Rev. Ref0905S003V0
Chapter 6 System flow principle
6-1. Refrigeration flow chart
Principle diagram and description of the refrigeration cycle
The refrigerant is compressed in the compressor, from there, it enters the dry filter, de-dewing tube,
and the condenser, and goes into the evaporator after being throttled and decompressed in the
capillary tube. Finally, it returns to the compressor through the air return tube.

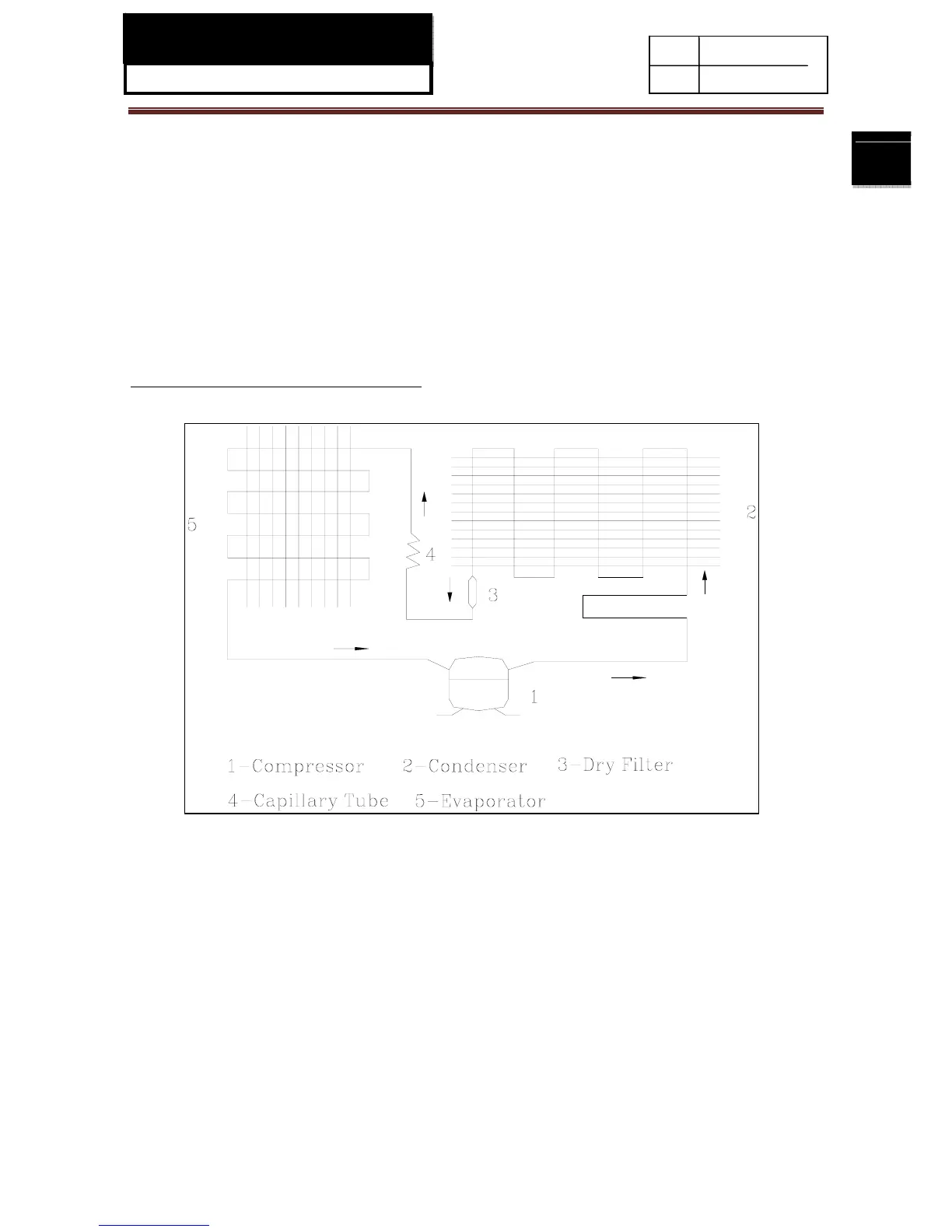

Principle diagram of the refrigeration cycle:
To Next Page
