Haier HDW15F3S1 - Service Hole Dimensions

9
Installation
NZ AU

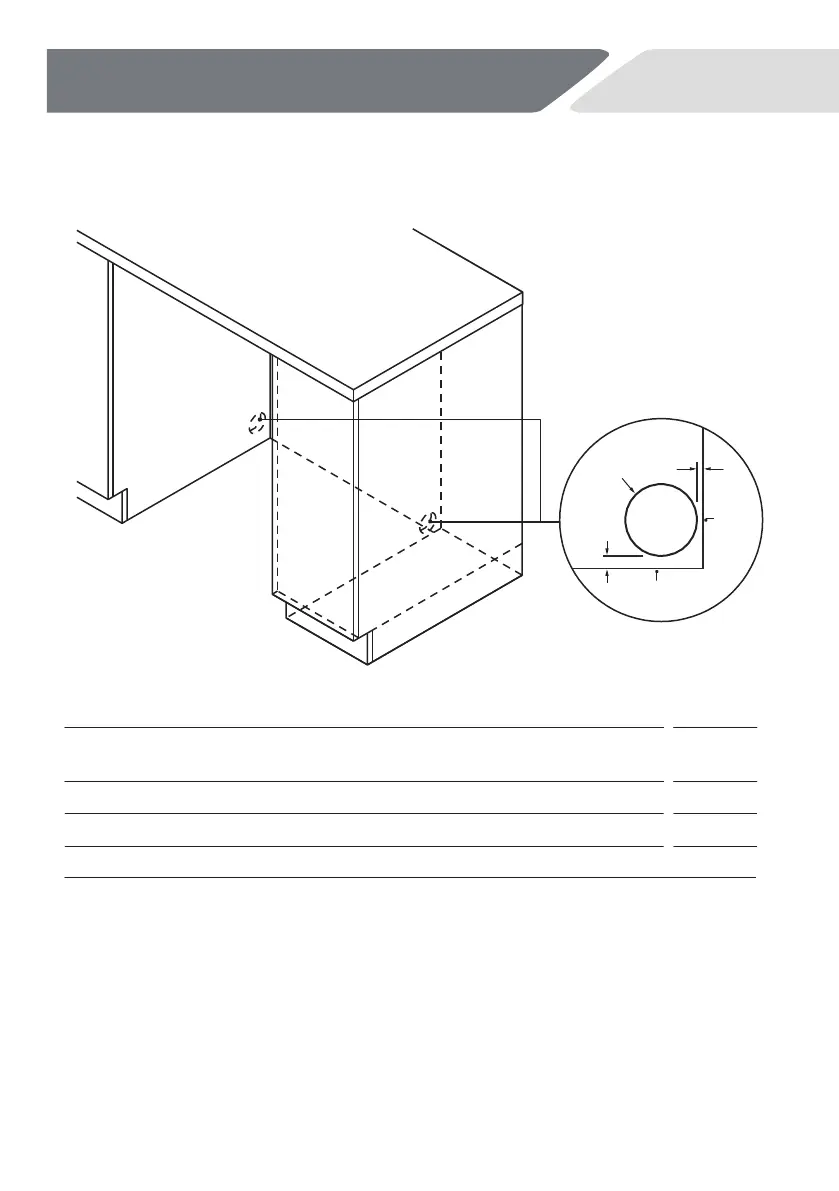

Service hole
C
A
REAR
WALL
B
FLOOR
PROFILE
SERVICE HOLEDIMENSIONS MM
A
B
C
Minimumdiameterofservicehole
15
0-50
70
Maximum distance between rear of cavity and service hole*
Maximum distance between floor and service hole**
*
based on a cabinetry depth of 580mm
** depending on adjustment of levelling feet
