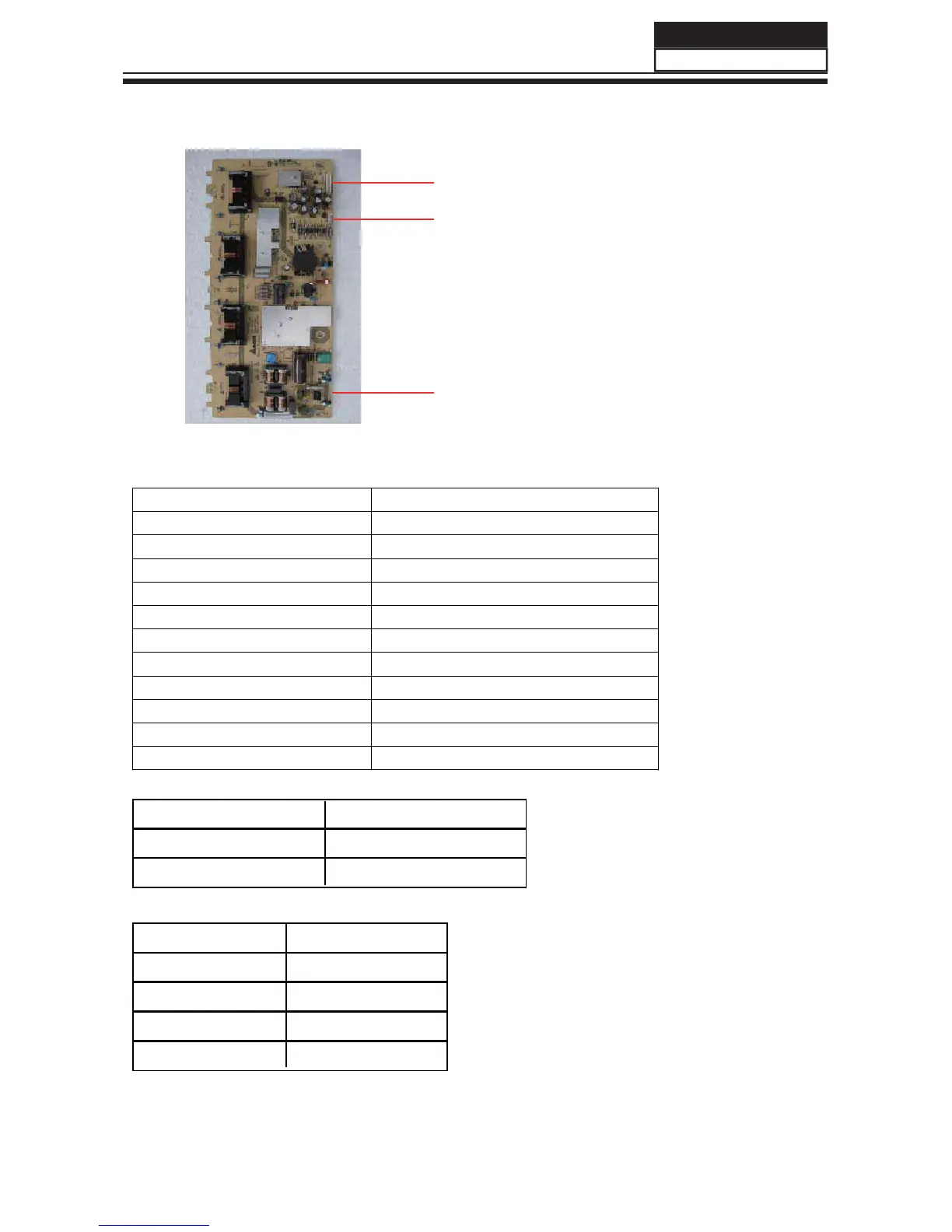

4-3-2-2.L32F6
CN2
CN1
CN3
1
2
Pin number
Signal name
L
N
CN1
CN3
Pin number
Signal name
1
2
3
4
GND
GND
CN2
PIN NUMBER DESIGNATION
1 12V
2 12V
3 GND
4 GND
5 5VSTB
6 GND
7 STN
8 SEL
9 V-IPWM
10 BL-ON
11 V-EPWM
24V
24V
Service Manual
Model No.:
/)
27
