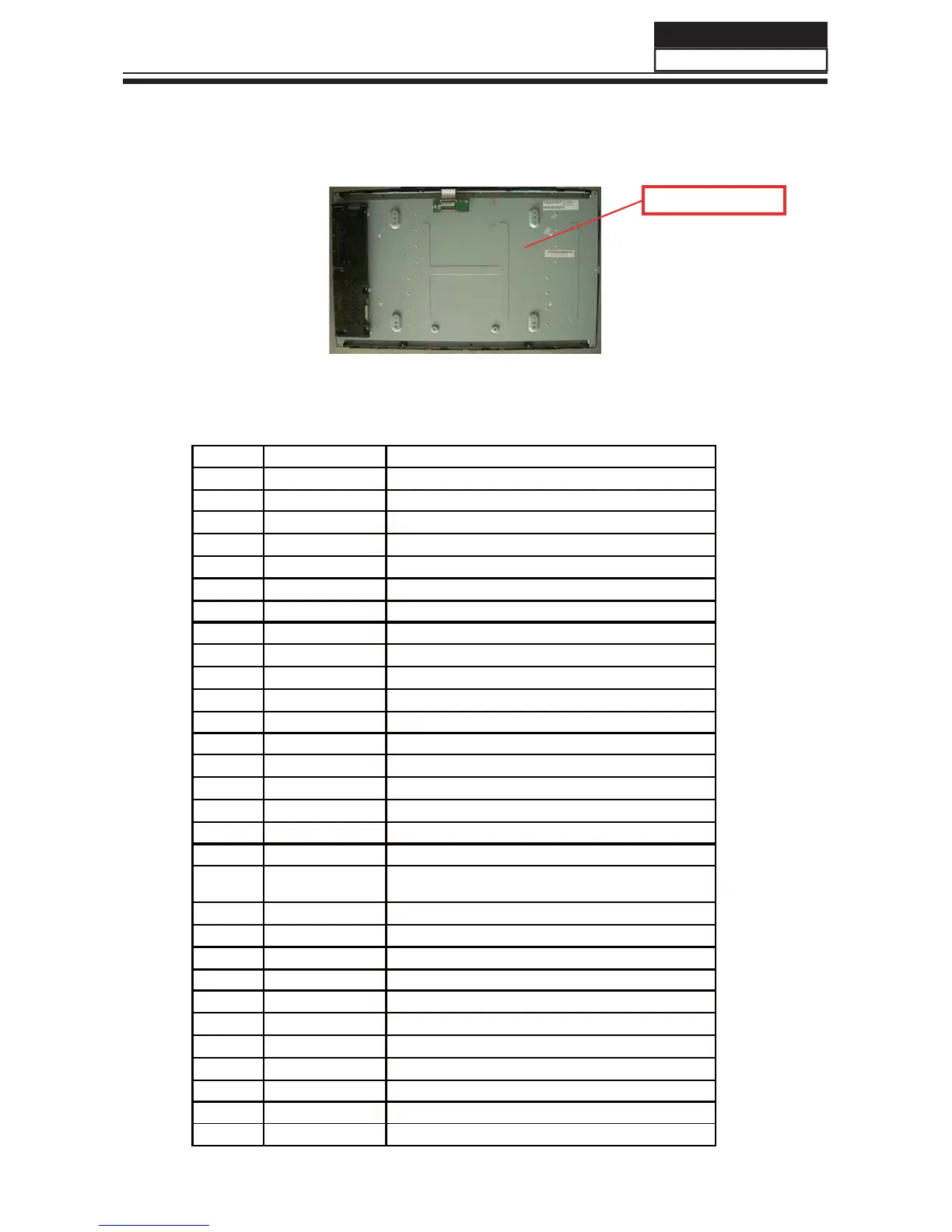

4-4.LCD Panel
4-4-1. Function Description: Display the signal.
4-4-2. Connector defi nition
4-4-2-1.L26F6
/9'6&RQQHFWRU
7;:9
z
LCD connector: CN1: Starconn 093G30-B0001A-1
z
Mating connector:
3,1 6\PERO
Description
9''
Power Supply, +12V DC Regulated
9''
Power Supply, +12V DC Regulated
9''
Power Supply, +12V DC Regulated
9''
Power Supply, +12V DC Regulated
*1'
Ground
*1'
Ground
*1'
Ground
*1'
Ground
/9'6B6(/
Open/High(3.3V) for NS, Low(GND) for JEIDA
 5HVHUYHG
AUO Internal Use Only
 *1'
Ground
 &+B
LVDS Channel 1, Signal 0-
 &+B
LVDS Channel 1, Signal 0+
 *1'
Ground
 &+B
LVDS Channel 1, Signal 1-
 &+B
LVDS Channel 1, Signal 1+
 *1'
Ground
 &+B
LVDS Channel 1, Signal 2-
 &+B
LVDS Channel 1, Signal 2+
 *1'
Ground
&+B&/.
LVDS Channel 1, Clock -
&+B&/.
LVDS Channel 1, Clock +
 *1'
Ground
 &+B
LVDS Channel 1, Signal 3-
 &+B
LVDS Channel 1, Signal 3+
 *1'
Ground
 5HVHUYHG
AUO Internal Use Only
 5HVHUYHG
AUO Internal Use Only
 *1'
Ground
 *1'
Ground
