Haier LTF42M1C - Input;Output Specification

24

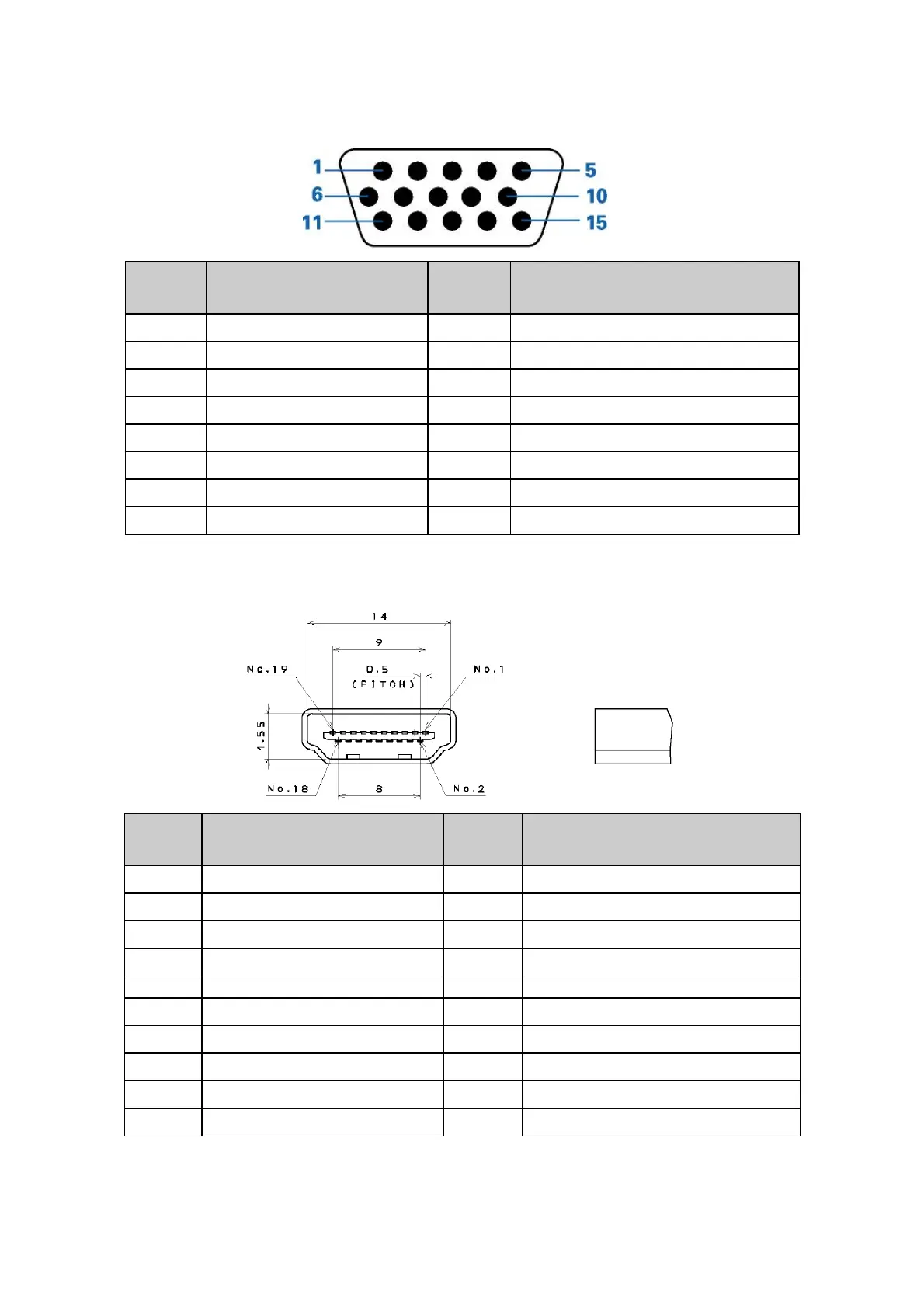

3. Input/Output Specification
3.1 RGB Signal input
Pin No. Description Pin No. Description
1 Red 9 +5V (Supply From PC)
2 Green 10 Sync GND
3 Blue 11 GND
4 GND 12 Bi-Directional Data(SDA)
5 Self Test 13 H. Sync
6 Red Ground 14 V. Sync
7 Green Ground 15 Data Clock(SCL)
8 Blue Ground
3.2 HDMI Digital connector
Pin No. Description Pin No. Description
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 shield 12 TMDS Clock-
3 TDMS Data2- 13 CEC
4 TMDS Data1+ 14 Reserved (N.C. on device)
5 TMDS Data1 shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC/CEC Ground
8 TMDS Data0 shield 18 +5V Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
