41
Smart Power
3.

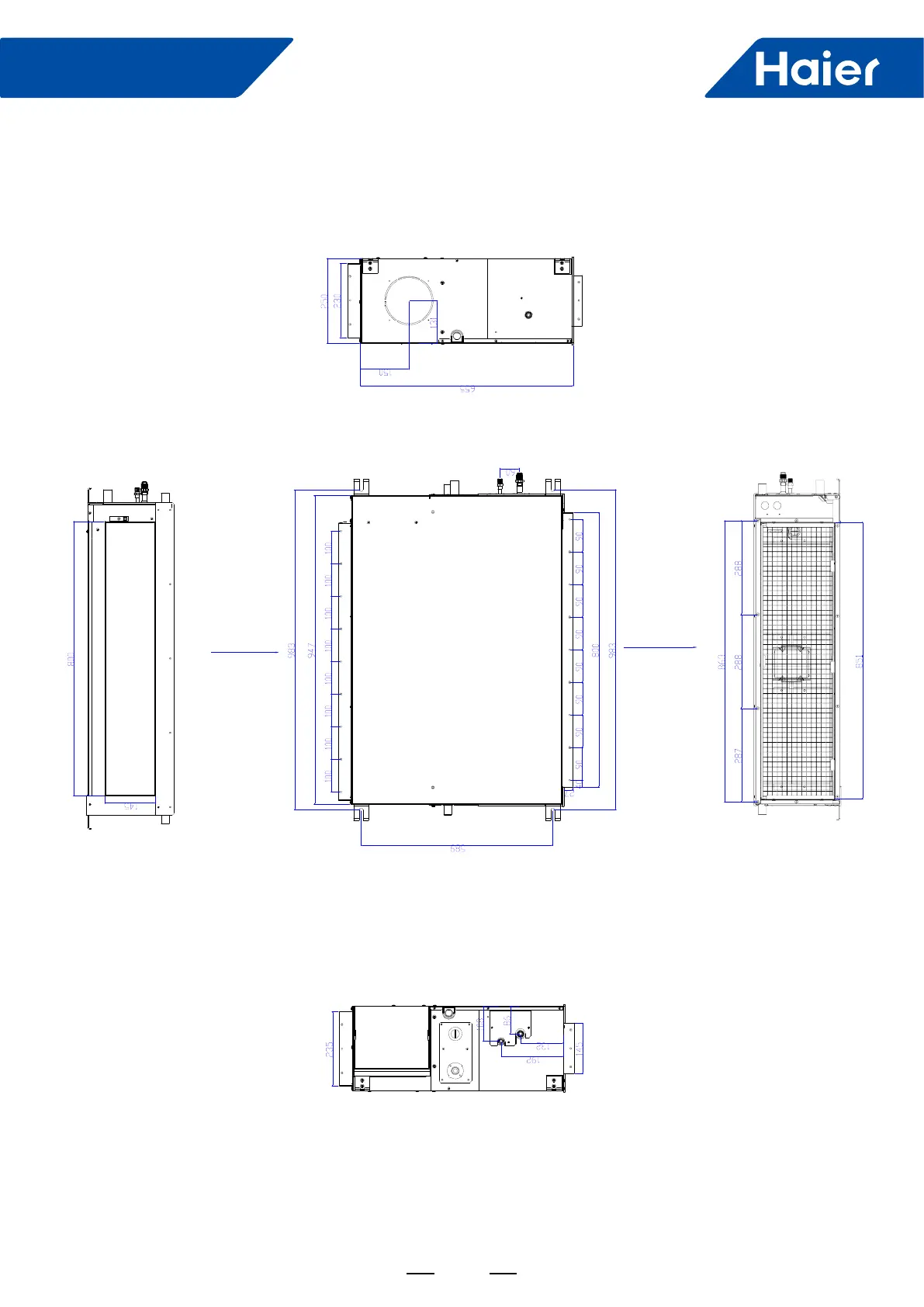

Dimension
3.1 ADH071M1ERG
ADH071M3ERG
ADH090M1ERG
air
inle
t
air
ou
t
le
t
42
44
Table of Contents
Default Chapter
2
Table of Contents
2
Part 1 General Information
3
Nomenclature
4
Line up
5
Feature
7
Part 2 Indoor Units--4-Way Cassette Type
9
Feature
10
Specification
11
Dimension
17
Wiring Diagram
18
Air Velocity and Temperature Distribution
19
Sound Pressure Level
23
Installation
26
Test Run
32
Part 3 Indoor Units-Medium ESP Duct Type
33
Feature
34
Specification
36
Dimension
43
Wiring Diagram
45
Airflow and Static Pressure Chart
48
Instalaltion
51
Sound Pressure Level
60
Part 4 Indoor Unit-High ESP Duct Type
61
Feature
62
Specification
64
Dimension
70
Wiring Diagram
72
Airflow and Static Pressure Chart
74
Installation
77
Sound Pressure Level
89
Part 5 Outdoor Units
95
Specification
96
Dimension
105
Piping Diagram
108
Wiring Diagram
110
Noise Level
115
Outdoor Performace Curves
123
Installation
132
Part 6 Electric Control and Toublleshooting
154
Indoor Unit
155
Indoor Unit Dip Switch Setting
161
Outdoor Unit PCB Photo
167
Failure Code
174
Instructions of Parameters & Error Code Checking
197
Function
206
Controller
218
Appendix Sensor Characteristic
234
4
Based on 1 rating
Ask a question
