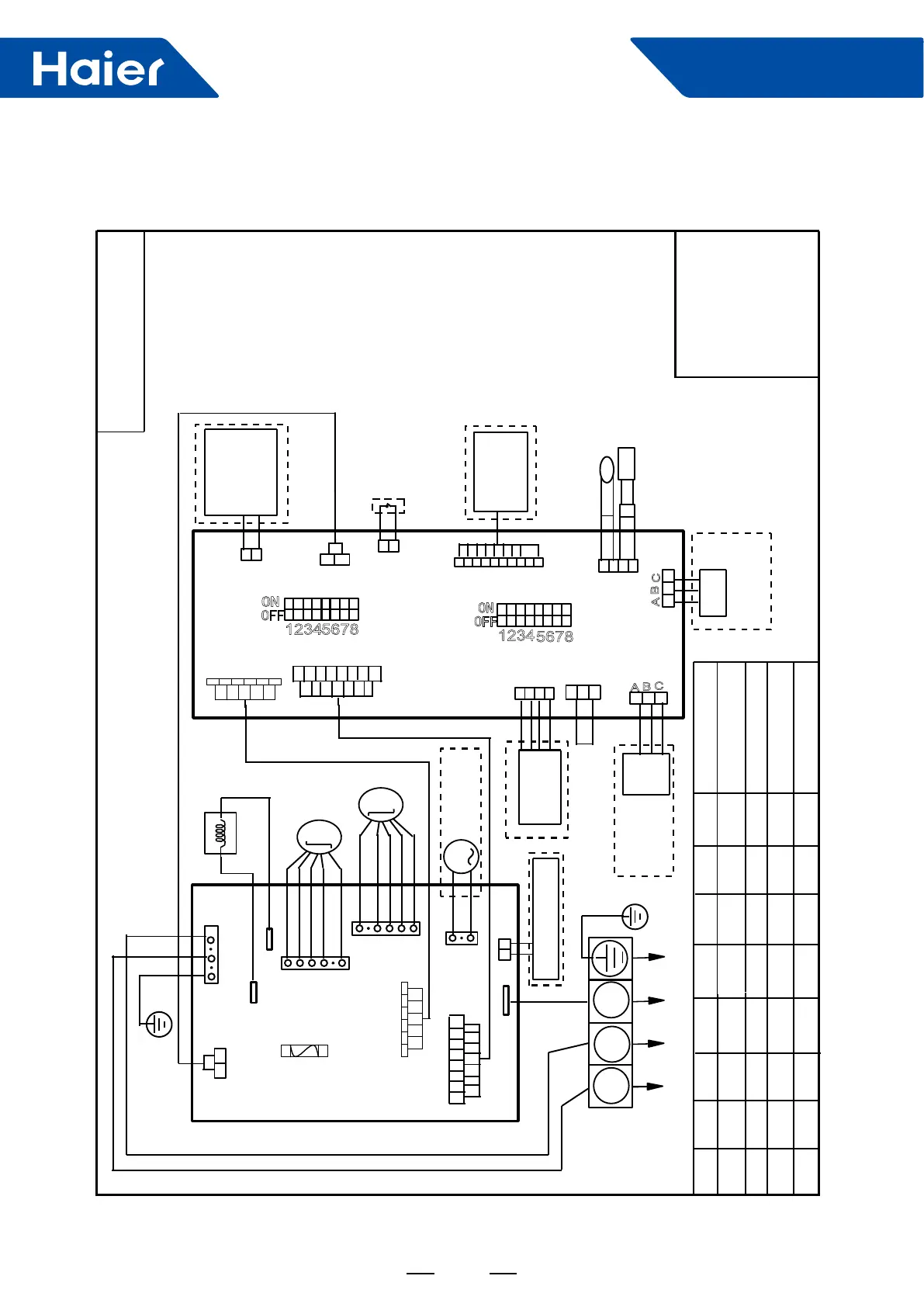

4. Wiring Diagram
BLK:black BLU:blue GR:grey ORG:orange PNK:pink RD:red WHT:white YL:yellow Y/G:
yellow/green
FLOAT SWITCH
PIPING TEMP. SENSOR
T8A/250VAC
FUSE
WIRED
CONTROLLER
ROOM CARD
CH1
SW01
2
1
3
Y/G
A
B
C
REMOTE
RECEIVER
INFRARED
MAIN CONTROL BOARD
Reactor
WHT
RD
BLK
To outdoor unit
Note: 1.Dashed parts are op- tional. 2.E.A.O means external alarm output，when SW01-6 select OFF means FRESH AIR function .select ON means E.A.O，and CN9 is a 230VAC wet contact output . 3.Once out of factorty do not change the DIP switches without technical guidence 4.
SW03-5->SW03-8
is used for address setting on the situation of one wired controller control more than one indoor unit. 5.Use wired controller to select appropriate exter- nal static pressure level. 6.Refer to service manual to get more information about the static pressure level .
SW01-1
SW01-2
SW01-3
ON
SW01-4
SW01-5
SW01-6
SW01-7
SW01-8
MODEL
OFF
OFF
OFF
OFF
OFF
ADH125H1ERG
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
OFF
ON
ON
ON
ADH140H1ERG
ADH105H1ERG
0150521238
N L
CH3
CH5
M
M
DC FAN MOTOR
CN3
CN7
CN8
CN1
CN8
CN37
ROOM TEMP. SENSOR
B
A
C
CN12
1234 5678
ON
OFF
SW03
1234
5678
ON
OFF
WiFi MODULE
CN16
CN21
CN39
CN32
THERMOSTAT/ FUSE TO HEATER
CN40
CN9
M
FRESH AIR MOTOR /
E.A.O
Y/G
CN13
HEATER (12V CONTROL)
OFF OFF
OFF
A
B
C
CN34
CN13
CN22
CN22-1
WIRED
CONTROLLER
B
A
C
CN10
ADH160H1ERG
ON ON
OFF
OFF OFF
OFF
OFF OFF
ADH105H1ERG ADH125H1ERG ADH140H1ERG ADH160H1ERG
