5. Airflow and Static Pressure Chart
5.1 ADH105H1ERG
5.2 ADH125H1ERG
Static pressure (Pa) 37 50 60 80 100 120 150 170 190 210
H 2788 2805 2825 2811 2798 2782 2776 2756 2731 2711
M 2198 2210 2250 2205 2195 2188 2167 2132 2116 2096
L 1820 1832 1840 1816 1804 1797 1788 1753 1732 1708
SL 1323 1321 1333 1289 1282 1256 1262 1247 1221 1215
Static pressure (Pa) 37 50 60 80 100 120 150 170 190 210
H 3252 3217 3148 3165 3237 3418 3347 3286 3295 3090
M 2627 2852 2834 2823 2806 2995 2947 2963 2815 2635
L 2239 2263 2436 2394 2352 2455 2441 2374 2577 2415
SL 1780 1795 1788 1789 1760 1752 1748 1739 1735 1730
1000
1500
2000
2500
3000
37 50 60 80 100 120 150 170 190 210
Air flow(m3/h)
Static pressure (Pa)

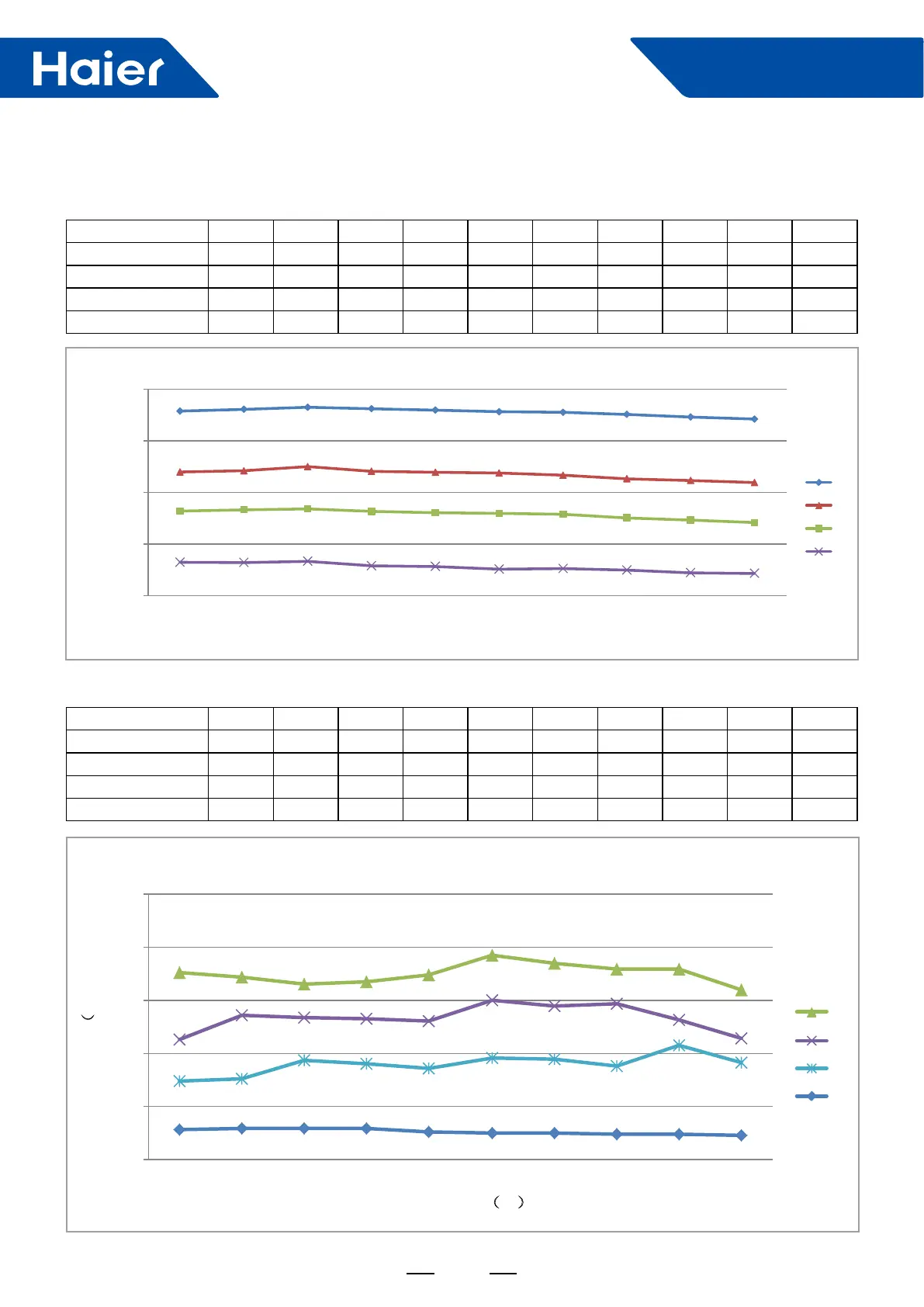

Air flow and static pressure chart---ADH105H1ERG
H
M
L
SL
1500
2000
2500
3000
3500
4000
37 50 60 80 100 120 150 170 190 210
Air flow （m3/h)
Static pressure （Pa）
Airflow and Static Pressure Chart---ADH125H1ERG
H
M
L
SL
