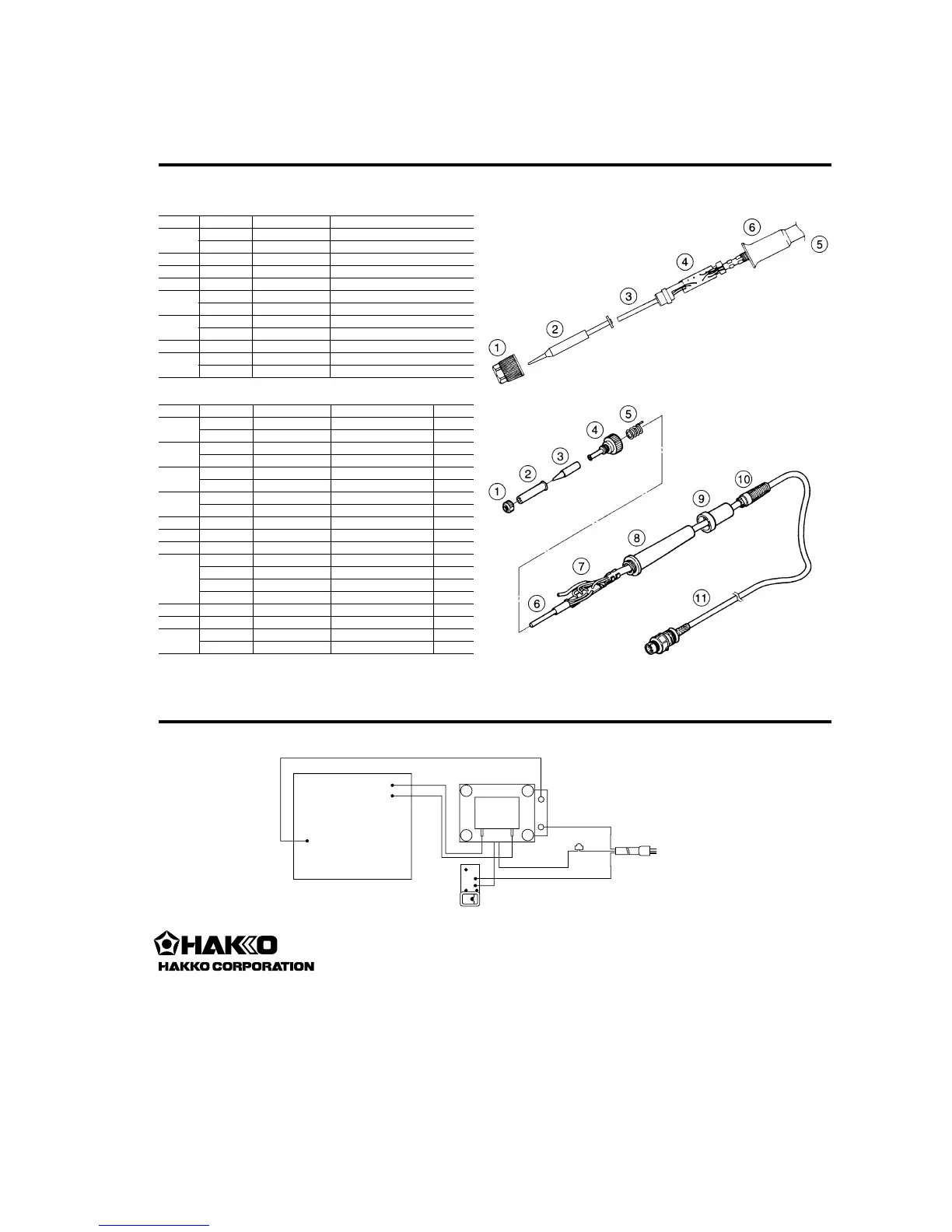

Hakko Electronics 907-ESD - Iron; Wiring Diagram

SEP., 1998
Wiring Diagram
Parts List (Iron)
900S
Item No. Part No. Part Name Description
1 900S-006 Nut
900S-006S Nut E.S.D.
2 Soldering Tip See. P.6
3 A1322 Heating Element Old part No.900S-H
4 900S-101 Terminal Board w/Cord Stopper
5 900S-001 Handle w/Handle Cover
900S-001S Handle w/Handle Cover, E.S.D.
6 900S-034 Handle Cover
900S-034S Handle Cover E.S.D.
7 900S-010 Cord Bushing (Not shown)
8 900S-039 Cord Asse'y (Not shown)
900S-039S Cord Asse'y E.S.D. (Not shown)
Ground
P.W.B.
24V
Transformer
3 Core
11
Item No. Part No. Part Name Description For
1 B1784 Nut 907
B1794 Nut 908
2 B1786 Tip Enclosure 907
B1787 Tip Enclosure 908
3 Soldering Tip See. P. 6 907
Soldering Tip See. P. 6 908
4 B2022 Nipple 907
B2033 Nipple 908
5 B2032 Grounding Spring 907,908
6 A1321 Heating Element Old part No.900M-H,900L-H 907,908
7 B2028 Terminal Board w/Cord Stopper 907,908
8 B2023 Handle w/Handle Cover 907
B2024 Handle w/Handle Cover, E.S.D. 907
B2025 Handle w/Handle Cover 908
B2026 Handle w/Handle Cover, E.S.D. 908
9 B2027 Handle Cover 907,908
10 B2031 Cord Bushing 907,908
11 B2029 Cord Asse'y 907,908
B2030 Cord Asse'y E.S.D. 907,908
907,908
