Hakko Electronics 936 - Parts List (Station;Iron Holder)

10
1
2
3
4
5
6
7
8
9
11
10
12
14
13
Hexagon Socket Head Cap Screw
M 2 ~8 (1)
Hexagon Socket Set Screw
M 3 ~6 (1)
Binding Head
Tapping Screw (Fluted Point)
M 3.5 ~50 (4)
Tapping Screw (Fluted Point)
M 3 ~12 (1)
Tapping Screw
(Fluted Point)
M 4 ~12 (4)

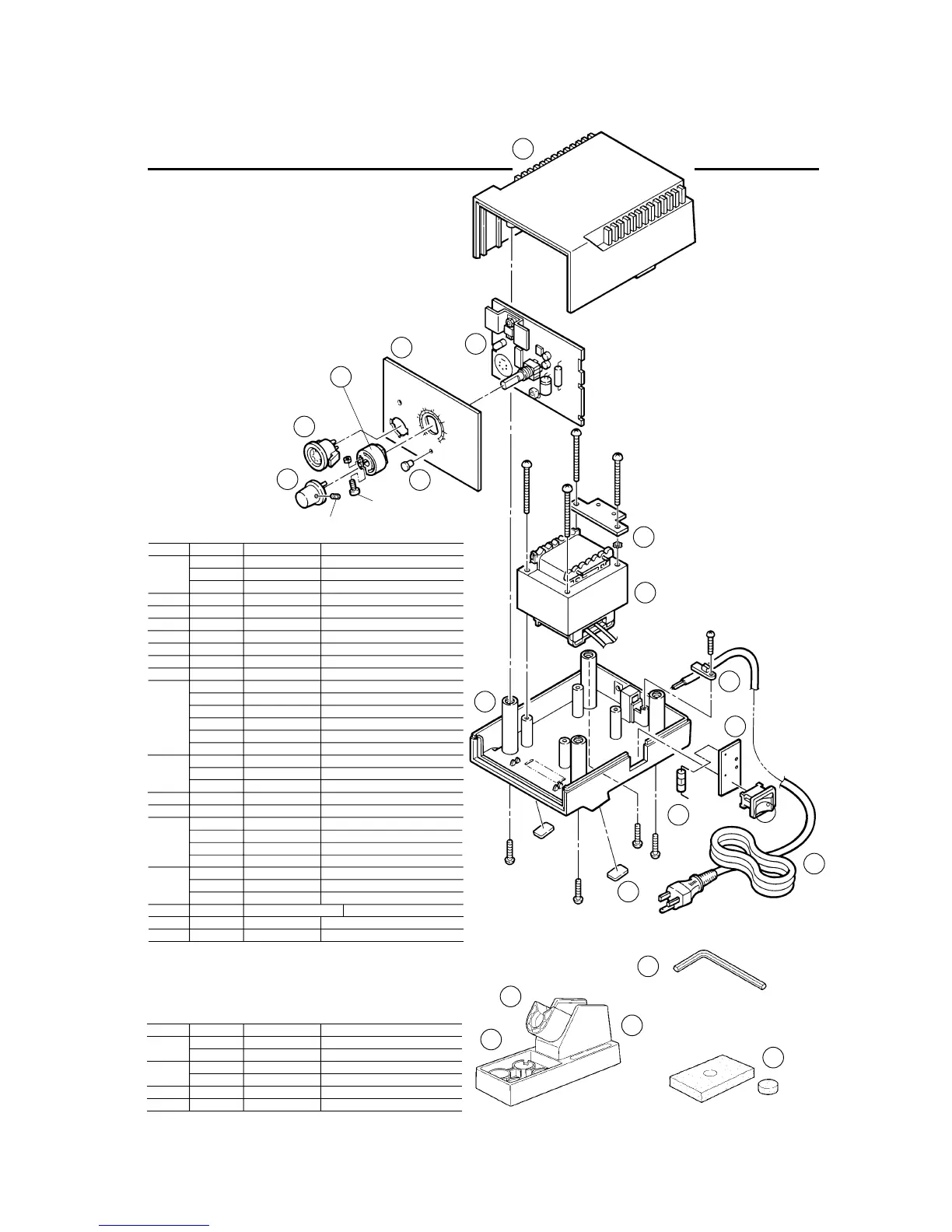

Parts List (Station/Iron Holder)
1
2
3
4
17
Item No. Part No. Part Name For
1 C1141 Iron Holder 900S
C1142 Iron Holder 907,908
2 B2020 Iron Receptacle 900S
B2021 Iron Receptacle 907,908
3 B2019 Iron Holder Base 900S,907,908
4 A1042 Cleaning Sponge 900S,907,908
16
15
Note:Spare or repair parts do not include mounting
screws, if they are not listed on the description.
Screws must be ordered separately.
M 3.5 ~40 (4) for No.B2228
Transformer
Item No.
1
Part No.
Part Name Description
B2048 Upper Case 100,110,220~240V (Standard)
B2225 Upper Case / UL 120V (Standard / UL)
B2001 Upper Case E.S.D.
2
B2229 P.W.B.
3
B2003 Panel
4
B2006 Receptacle
5
B2004 Knob w / a screw
6
B2005 Knob Mount w / a screw
7
B2018 CAL Pot Plug
8
B2227 Grounding Plate
9
B2011 Transformer 100-24V
B2012 Transformer 110-24V
B2228 Transformer 120-24V (Standard / UL)
B2013 Transformer 120-24V (ESD)
B2014 Transformer 220~240-24V
B2088 Transformer 240-24V (Australia)
10
B2000 Lower Case* 100,110,220~240V (Standard)
B2226 Lower Case / UL* 120V (Standard / UL)
B2002 Lower Case* E.S.D.
11
B2015 Cord Stopper
12
B2016 Rubber Stopper set of 2
13
B1318 Power Cord 3 Wired Cord But No Plug
B1319 Power Cord 3 Wired Cord & American Plug
B2042 Power Cord 3 Cord & Australian Plug
B2043 Power Cord 3 Cord & European Plug
14
B2007 Fuse / 2A 100,110V
B2224 Fuse / 2A 120V (UL)
B2008 Fuse / 0.8A 220~240V
15
B2103 Wiring Board for Switch
16
B1084 Power Switch
17
B2017
*w / Rubber Stopper
Hex Wrench
