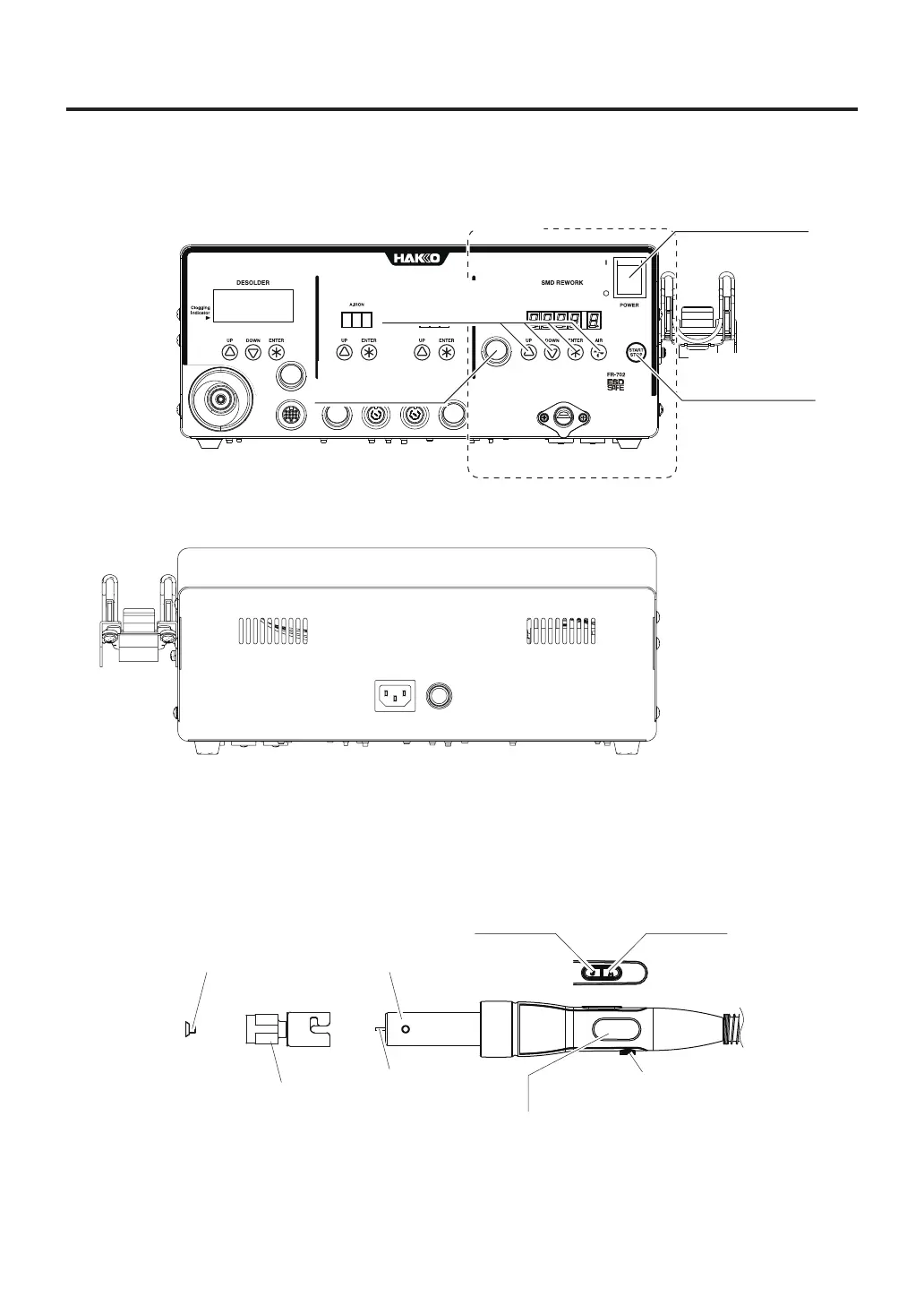

18. PART NAMES (Hot air)
● Station
Control Buttons
(Hot air)
Hot air
Power Switch
(Main)
START/STOP
Button
Power Switch
(Hot air)
● Handpiece
①
Pad
The pad absorbs parts.
Nozzle
(not included)
③Sensor (internal)
This sensor detects the
temperature of the hot air.
②Vacuum pipe
The pad is mounted on the
tip of the vacuum pipe.
④Vacuum pipe control knob
This knob controls the length
of the vacuum pipe.
⑤Pick-up indicator
The movement of the vacuum pipe can be checked here.
S (START/STOP)
button
V (VACUUM)
button
