20. OPERATION (Hot air)
B. Electrical connection and power ON
1. Insert the power cord into the receptacle on
the rear panel of the station.
2. Place the handpiece on the holder.
3. Plug the other end of the power cord into
a grounded wall socket.
4. Turn the power switch ON.
CAUTION
When not in use, place the handpiece on the holder.
CAUTION
This product is protected against electrostatic
discharge.
Be sure the unit is grounded.
Therimofthe
handpiecemust
restonthearea
circledinthe
illustration.

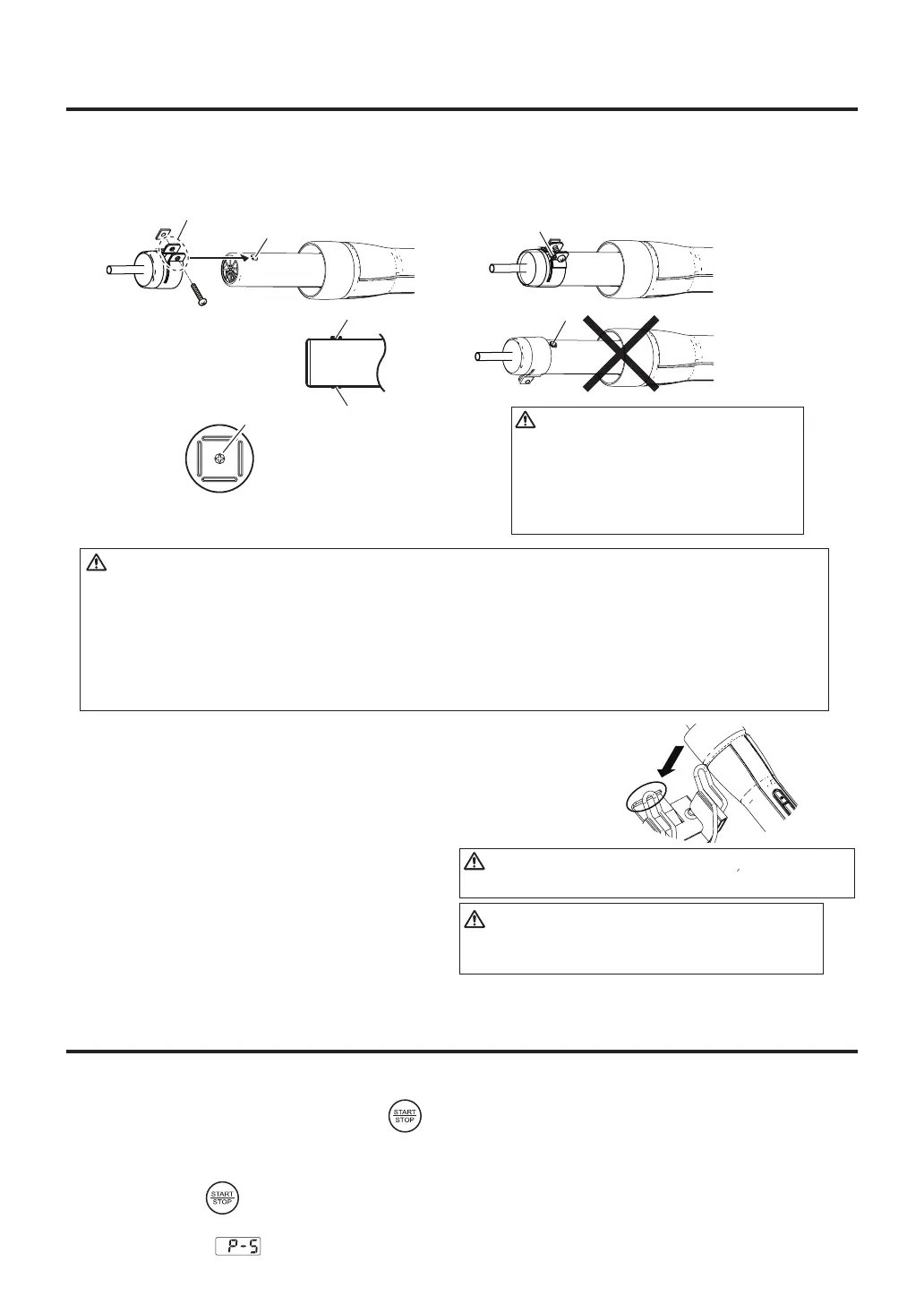

● How to Use a old nozzle
Align the
projectionpart
, attach the old nozzle to the heater pipe.
Therearetwoprojectionwith
differentheights.Alignthe
nozzle
screwingposition
with
thehigherprojectionpartof
thepipe.
Whenattachedinthewrongdirection,
thenozzlecouldnotbefullyinserted
andcancauseairleakage.
Makesuretoattachthenozzleinthe
correctdirection.
CAUTION
M3×5
QFPnozzle
※When using the QFP nozzle, remove the
inside screw (M3 × 5) of the nozzle.
Projectionpart（high）
Projectionpart（low）
Screwingposition
→
Projectionpart
Projectionpart
Projectionpart
CAUTION
● Vacuum function inoperative nozzles. (Old nozzle)
A1124B, A1130, A1131, A1132, A1133, A1134, A1142B, A1183, A1190, A1191, A1192, A1325
These nozzles could not be attached to HAKKO FR-702 when the vacuum pipe is extended.
Do not use excessive force.
A1124,A1142
DonotusethesenozzleswithHAKKOFR-702.
These nozzles do not have space to blow hot air,
using them with the HAKKO FR-702 may result in danger.
● Air Blow
1. Start
Press the “S” button on the handpiece or (START/STOP) button on the station to start blowing air. Hot
air blows out of the tip of the nozzle. Hot air temperature is controlled according to the temperature setting.
2.Stop
Press the “S” or button again. Power to the heater is shut off and cooling begins. When the
temperature falls to 100°C (200°F), or after 1.5 minutes of cooling, air blow is automatically stopped. The
display will show indicating that the station is ready to start again.
