Hakko Electronics FR-702 - Page 68

67
⑤
⑥
②
③
①，②
①
④
Item No.
①,②
①
②
③
④
⑤
⑥
Part No.
A5005
A5006
A5007
A5022
A5023
A5024
B5049
B5045
B5107
A1520
A1439
A1438
B3023
Part Name
Heating element assembly
Heating element assembly
Heating element assembly
Heating element
Heating element
Heating element
Mica
Pipe
Handle with cord assembly
Pad ø3 mm (0.12 in.)
Pad ø5 mm (0.20 in.)
Pad ø7.6 mm (0.30 in.)
Vacuum pipe adjustment knob (L)
Specifications
100-110V
120,127V
220-240V
100-110V
120,127V
220-240V
with heater protection sleeve
with pipe
Set of 5
Set of 5
Set of 5
With screw

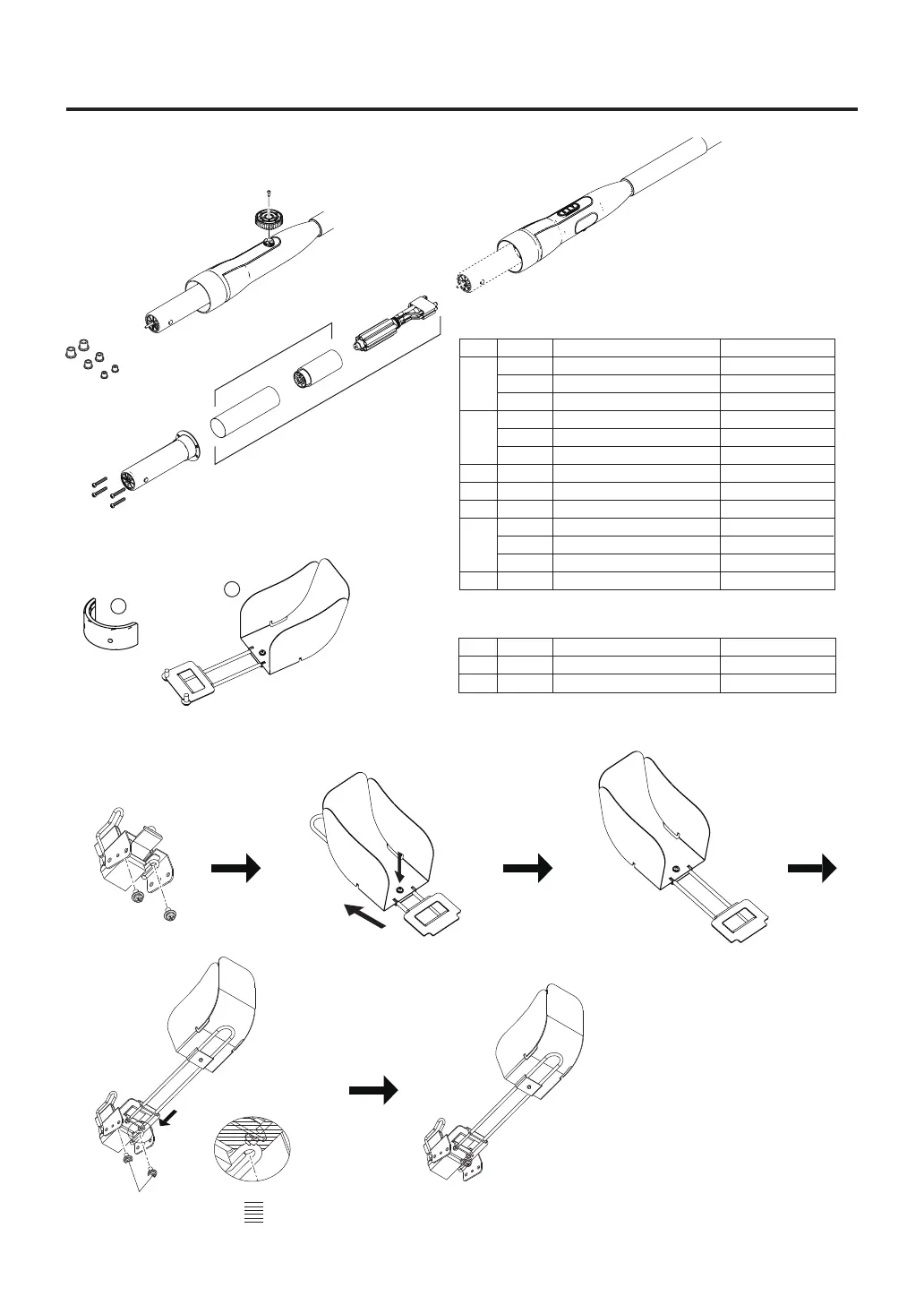

● Hot air (Handpiece)
Item No.
①
②
Part No.
B5059
B5126
Part Name
Adapter/ for fixture（C1392B)
Air guard assembly
Specifications
×2
With fixing bracket
● Optinal parts
1
2
●Assemblyoftheairguard
①
②
Screws
(with the air guard
assembly)
Air guard
assembly
