Haldex EB Plus - Wiring Diagram - Full Trailers

14
Fig 12

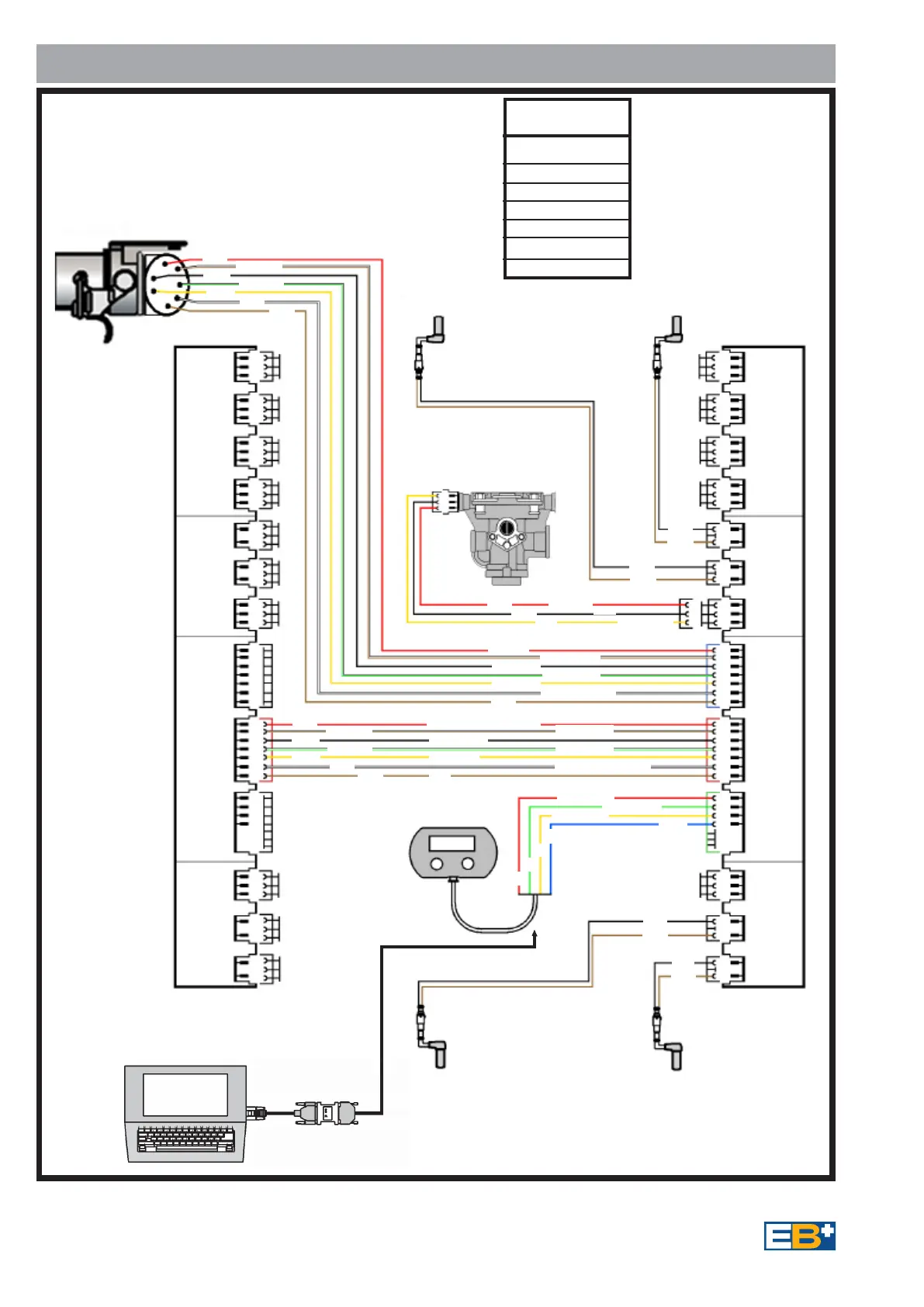

Wiring Diagram - Full Trailers
Sensor
ISO 7638
CAB LAMP
B-IGN
B+P
EB
+
INFO CENTRE
1A
1B
EB
+
Master ECU
AUX2
AUX3
AUX4
AUX5
PSW
S2B
S1B
POWER A
POWER B
AUX1
S1A
S2A
REV
Sensor
B+IGN
B-
CAN -L
CAN -H
B-
CAN -H
CAN -L
B+DIAG
BK
BN
BK
BN
DIAGN
RD
GN
YE
BU
Sensor
BK
BN
BK
BN
2A
Sensor
System - 4S/3M
ISO 7638
3M LINK - POWER 'B'
EB
+
INFO CENTRE
REV (Pressure Switch)
YE
RD
BK
B-
OPEN
CLOSED
PC INTERFACE
2B
EB
+
Slave ECU
AUX2
AUX3
AUX4
AUX5
PSW
S2B
S1B
POWER A
POWER B
AUX1
S1A
S2A
DIAGN
Key
W - White
BK - Black
BU - Blue
BN - Brown
GN - Green
RD - Red
YE - Yellow
YE
BN
W/BN
RD
W
BK
W/GN
Slave Valve Return
Dump sol
Hold sol
Pressure signal
Apply sol
5v
Signal 0v
RD
YE
W
1
2
3
4
5
6
7
BN
W/BN
W/GN
BK
Pressure
Switch
Option
Ref Page 22
