Haldex EB Plus - Multimeter Reading; Sensor Output and Resistance; Earth Continuity and Solenoid Resistance

19
B
A
Fig 17 - Sensor Connector
Fig 19 - COLAS® Solenoid Connector
17
17
19

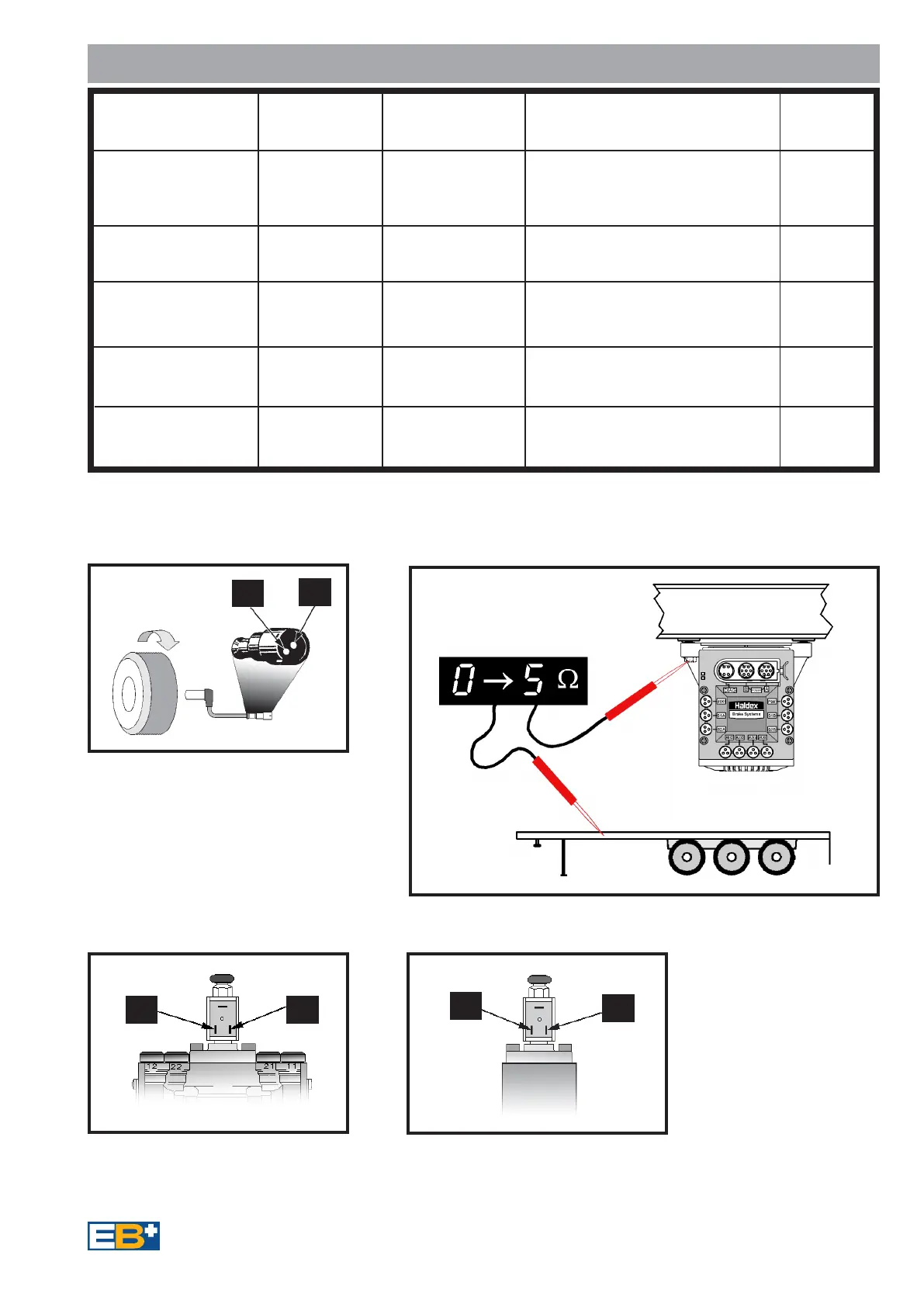

CHECKING MEASURE CORRECT REMARKS Fig
POSITION BETWEEN VALUE
Sensor output A B 0.2V AC Min. Sensor 1A, 1Bor 2A, 2B
Sensor disconnected from ECU.
Wheel rotated at 1 rev/2 sec.
Sensor resistance A B >1.0 <2.4 kohm Sensor 1A, 1Bor 2A, 2B
Sensor disconnected from ECU.
Earth continuity ECU/EPRV 0 ohms
Bracket and <5 ohms
Vehicle chassis
COLAS® Solenoid + - >79 <96 ohms Cable disconnected
resistance
ILAS® - E Solenoid + - >79 <96 ohms Cable disconnected 20
resistance
Fig 18 - Earth continuity
18
+
_
Multimeter Reading
Fig 20 - ILAS® - E Solenoid Connector
+
_
