Haldex EB Plus - Page 5

5

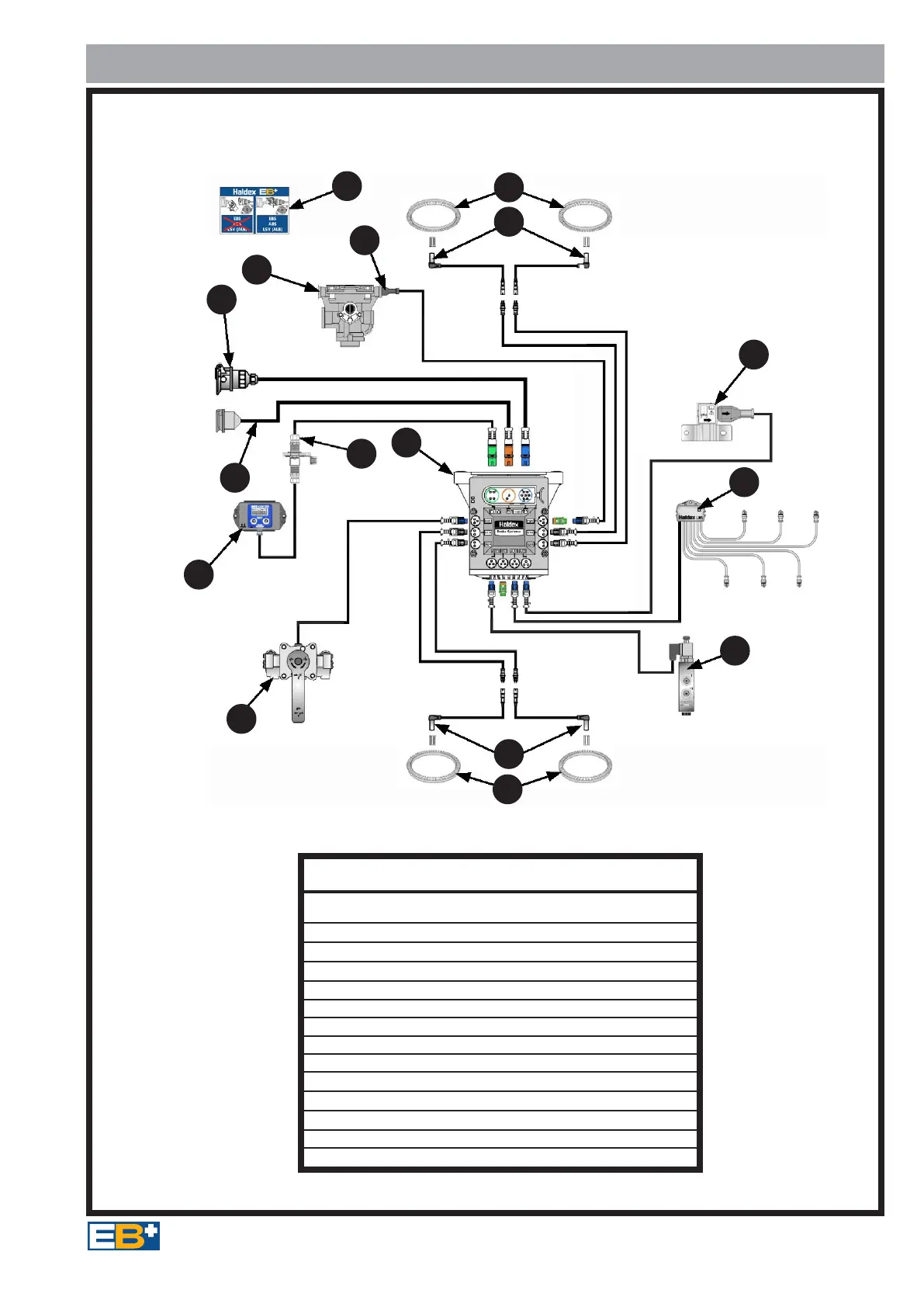

Chassis Components
Fig 6
Item Description
1 EB
+
Label
2 ISO 7638 - 7 Pin Socket assembly
3 Safety back-up cable ISO 1185 (24N)
4 Relay Emegency Valve
5 Pressure switch assembly
6 EB
+
INFO CENTRE
7 Diagnostic Side of Vehicle cable assy
8 Sensor assembly
9 Exciter
10 EB
+
ECU and Modulators assembly
11 Auxiliary 1 (COLAS®)
12 Auxiliary 2 (ILAS® - E)
13 Auxiliary 4 Lining Wear Sensing
14 Auxiliary 5 Lateral Accelerometer
ISO 7638
ISO 1185
(24N)
1
2
4
10
11
8
9
9
10
3
5
12
13
14
6
Option Ref Page22
7
