Haldex EB+ Gen 2 - Chassis Components and Connections; EB+ Gen 2 Label; ISO7638 - 7 Pin Socket; ISO1185 (24 N) Cable

5
Item Description Notes
1 EB+ Gen 2 Label
2 ISO7638 - 7 Pin Socket assembly
3 Safety backup cable - ISO1185 (24N)
4
EB+ Gen 2 Info Centre 1 & 2 (side of vehicle
connection)
5 EB+ Gen 2
ECU and EPRV’s assembly
6 Sensor assembly
7 Exciter
8 COLAS® Aux 1, 2 or 3
9 ILAS®-E Aux 1, 2 or 3
10 Lining Wear Sensing (LWS) Aux 4 ONLY
11 EB+ Gen 2 Stability External Sensor Assembly - Aux 5 ONLY

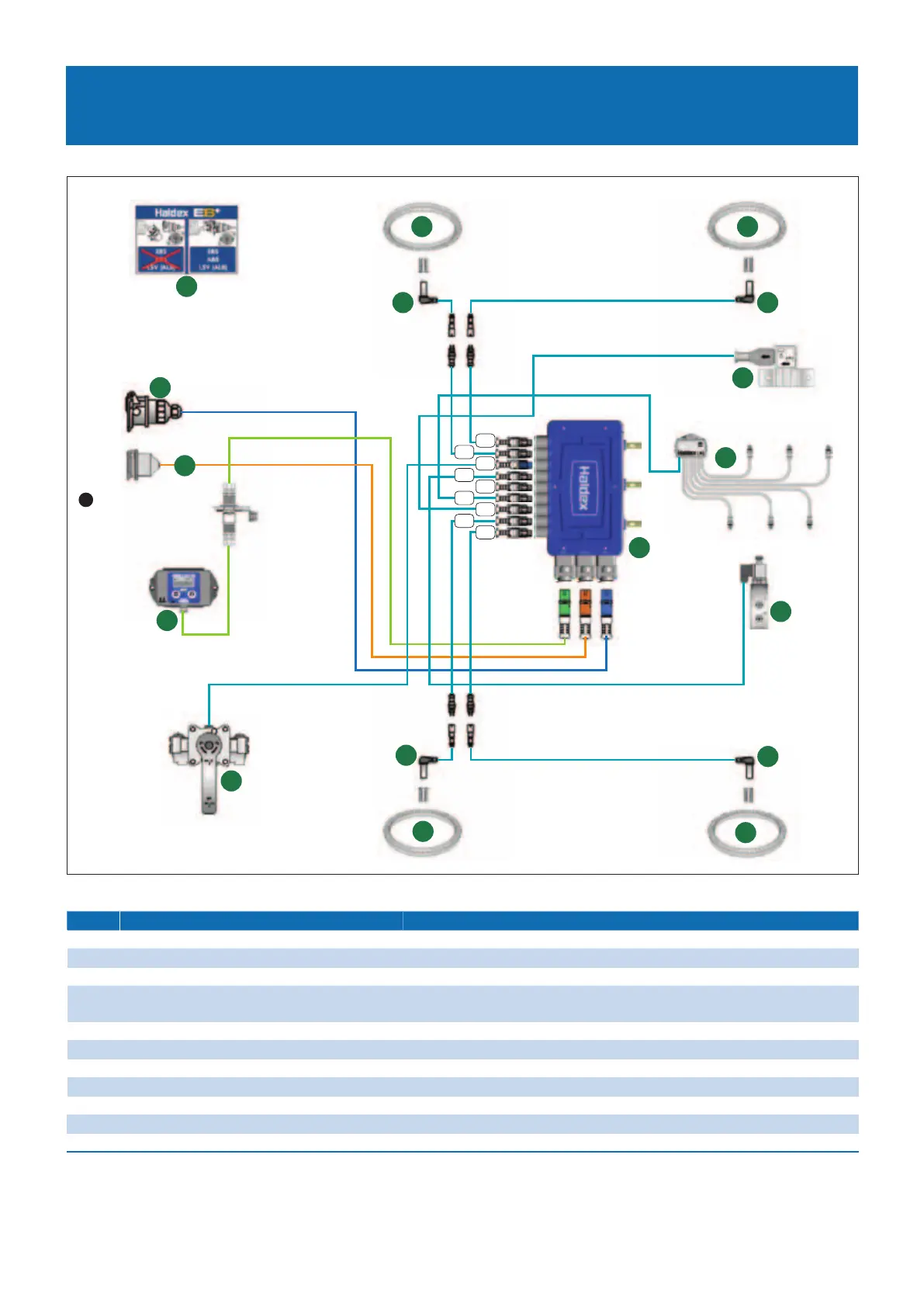

Fig. 5
2A
1A
5
4
3
2
1
1B
2B
6
7
6
7
6
7
6
7
11
10
9
8
4
3
2
1
5
ISO 7638
ISO 1185
(24N)
Note: Aux to be set in line with DIAG+
Chassis Components
Electrical connections
