Haldex EB+ Gen 2 - System Diagnostics and Information; Diagnostic Communication; EB+ Gen 2 Info Centre Features; Diagnostic Testing Capabilities

An important feature of the EB+ Gen 2 system is that it provides an
extensive on board diagnostic capability. The system displays a range
of codes, which allow rapid diagnosis of the problem should one
occur.
Diagnostic communication is in accordance to ISO11898 using
Keyword (KWP2000) protocol and is accessed by either the ISO7638
- 7 pin connector which uses pin 6 and 7 as a CAN data bus using
ISO Interface Assembly (815 018 001) or optional side-of-vehicle
connector or directly to ECU (Fig 7). Any suitable device connected to
this CAN data bus may read diagnostic information.
An EB+ Gen 2 Info Centre can be connected permanently to the
ECU's diagnostic 'DIAG' connection. While the ECU is powered
information is transferred to the Info Centre's memory, which can
be recalled. Power is supplied from the vehicle system via the ECU
diagnostics connector.
For further information on EB+ Gen 2 Info Centre see user guide
(000 700 270).
The EB+ Gen 2 Info Centre provides a multi-digit display of:
Information:
• Read Diagnostic Trouble Code (DTC)
• Clear DTC
• Conguration
• ECU software version number
• ECU serial number
• Vehicle Ident Number (VIN)
• Manufacturer OEM
• Info Centre software version number
Distance:
• Odometer - Total distance
• Trip distance (1st and 2nd)
• Service distance
• Wheel scale factor
• Clock (time and date)
• Clear Trip 1 and 2
Changes:
• Service distance
• Service interval
• Wheel scale factor
• Clock (time and date)
• Options-on/off (parameter updating / backlight)
• Password (PIN number)
• Unlock Info Centre (PIN number unknown)
Testing:
• Load
• Wheels (sensor / cabling check)
• Pressure
• Plate (Load plate data)
• Auxiliaries
• Brake Test
• Lining Wear Indication
A Haldex PC based program DIAG
+
may be used for more advanced
diagnosis. This also allows configuration with system parameters to
be entered and an End-of-Line Test to be carried out.
6

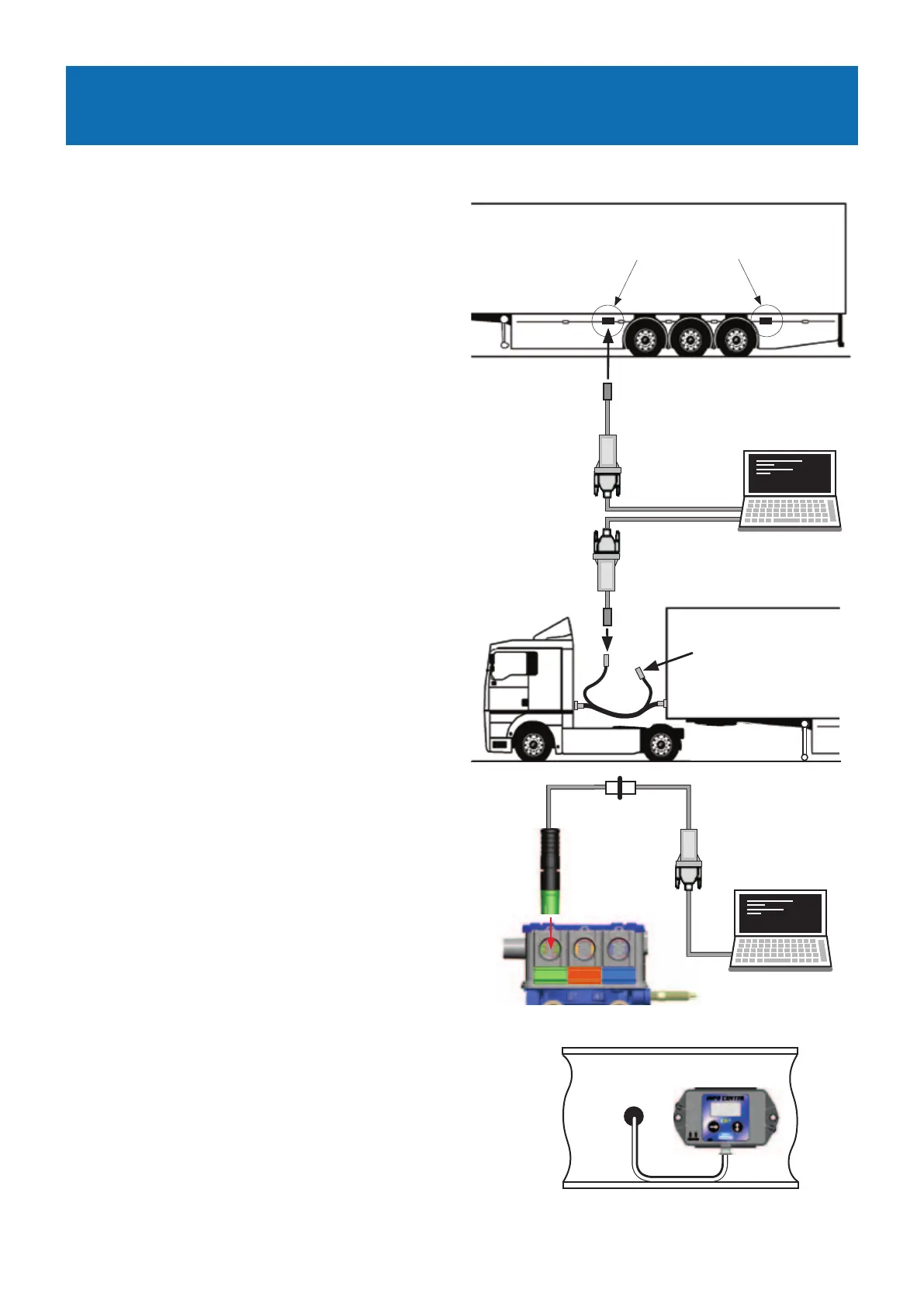

Fig 6
Alternative positions
Diagnostic
connection
'DIAG' on ECU
PC INTERFACE
Connect to ECU
directly or via
side-of-vehicle
connector
Fig 7
Fig 8
Alternative - directly connected to
ECU or side-of-vehicle connection
PC Interface
PC Interface
ISO Interface assembly
System Diagnostics
