Haldex EB+ Gen 2 - Multimeter Reading and Checks; Sensor Connector Checks; Earth Continuity Check; COLAS;ILAS-E Solenoid Resistance

17

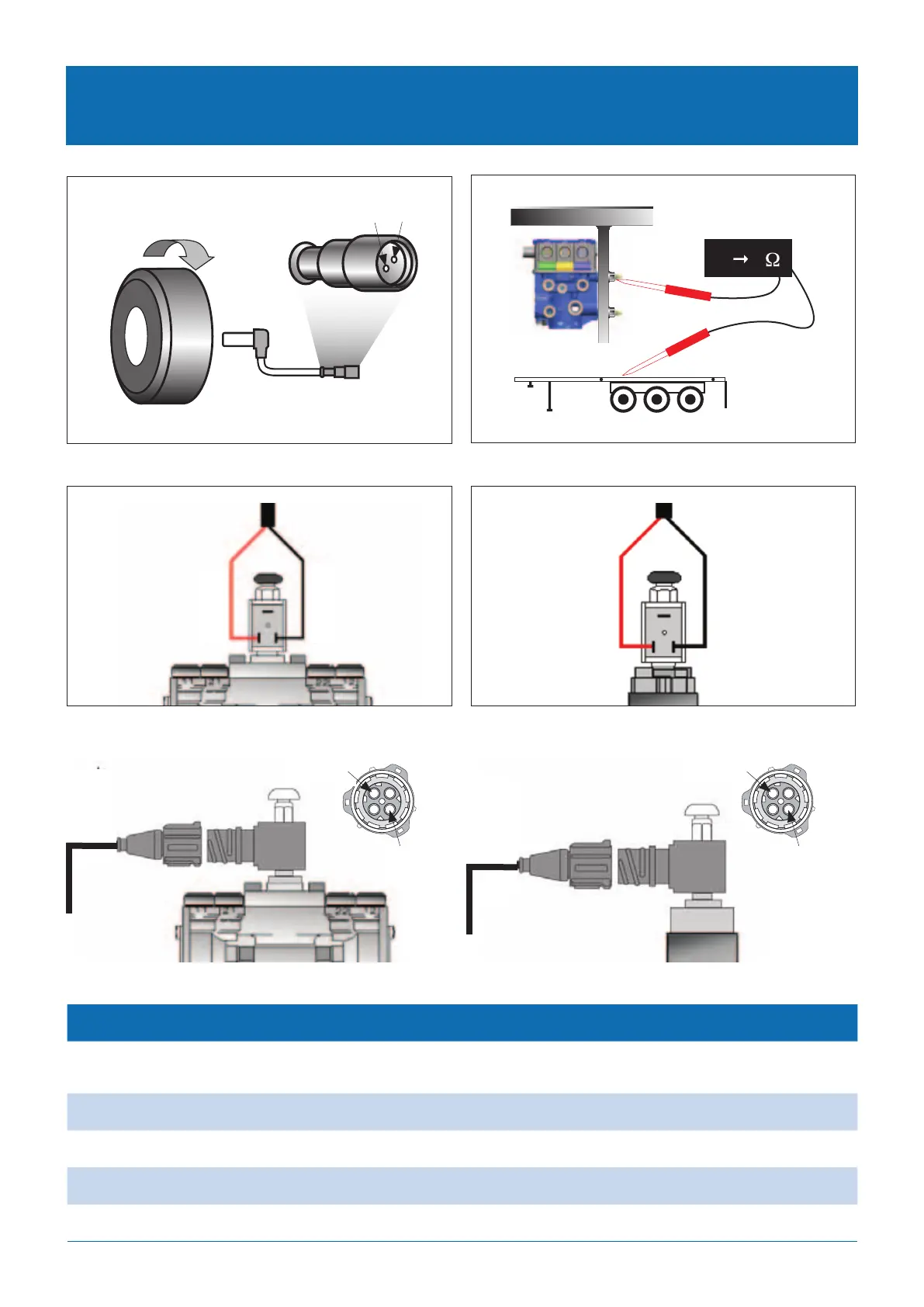

Fig. 21 - Sensor connector
Fig Checking position Measure between Correct value Remarks
21 Sensor output A B 0.2V AC Min Sensor 1A, 1B or 2A, 2B
Sensor disconnected from ECU
Wheel rotated at 1 rev/2 sec.
21 Sensor resistance A B >1.0 <2.4 kohm Sensor 1A, 1B or 2A, 2B
Sensor disconnected from ECU
22 Earth continuity ECU/EPRV
Bracket and chassis
0 ohms
<5 ohms
23 & 24 COLAS
®
Solenoid
resistance
+ - >79 <96 ohms Cable disconnected
25 & 26 ILAS
®
-E Solenoid
resistance
+ - >79 <96 ohms Cable disconnected
Fig. 23 - COLAS
®
connector
Fig. 22 - Earth continuity
Fig. 24 - ILAS
®
-E connector
B
A
0 5
BLACK (-)
RED (+)
BLACK (-)
RED (+)
Fig. 25 - COLAS
®
DIN connector Fig. 26 - ILAS
®
-E DIN connector
A (-)
Common
B (+)
Output
A (-)
Common
B (+)
Output
Multimeter Reading
